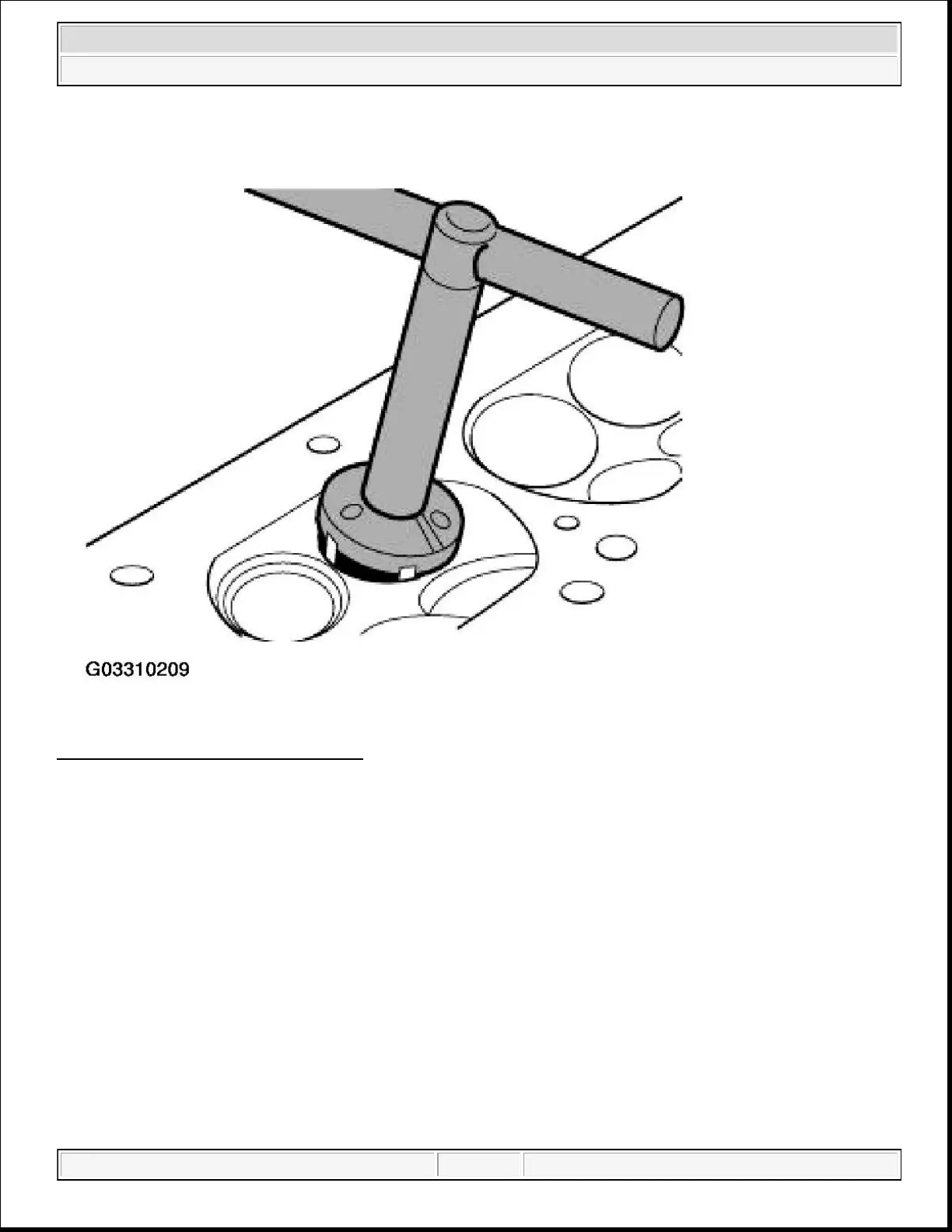

Fig. 42: Machining Valve Seat Surface
Courtesy of BMW OF NORTH AMERICA, INC.
1. Valve-seat angle
2. Correction angle, outside
3. Correction angle, inside
4. Outside diameter seat face
5. Valve-seat width
Specified values (1 to 5).
NOTE: After machining the valve seat surface, remachine the outside and inside
diameters with a correction milling tool to the prespecified diameter to produce
valve seat width (5).
