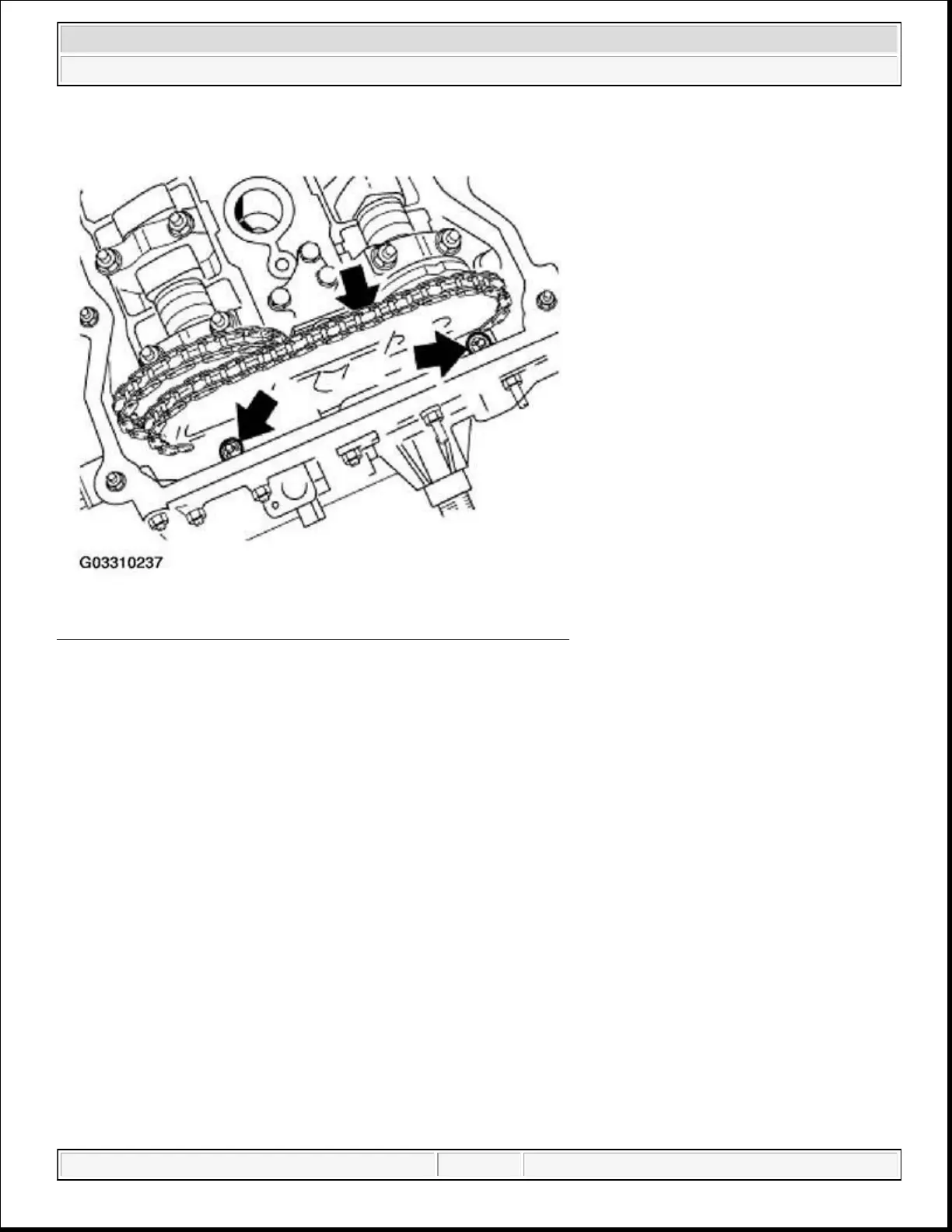

Fig. 70: Unscrewing Timing Case Cover To Cylinder Head Bolts
Courtesy of BMW OF NORTH AMERICA, INC.
Unfasten screws and remove timing case cover.
