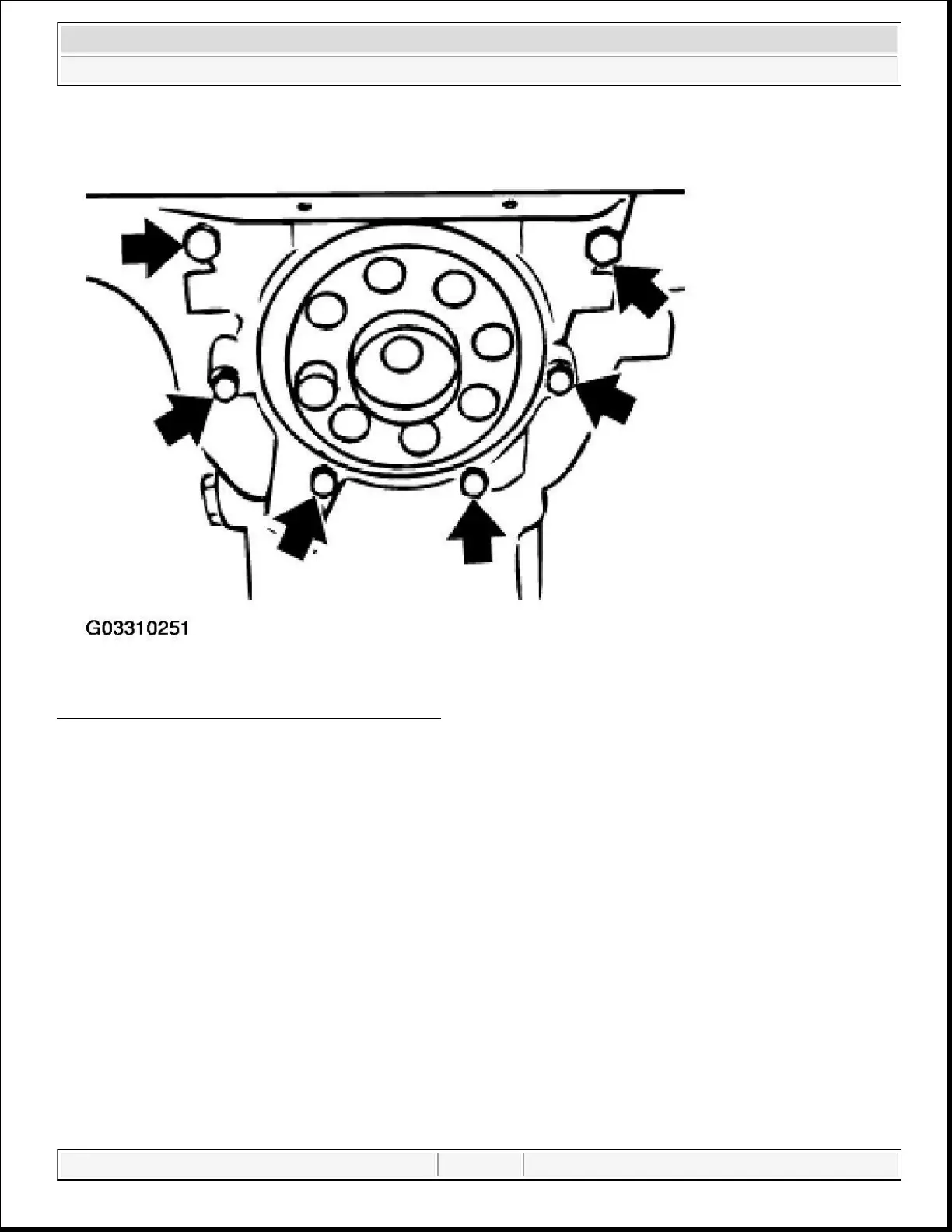

Fig. 84: Releasing Screws In End Cover At Rear
Courtesy of BMW OF NORTH AMERICA, INC.
Carefully detach oil sump gasket from end cover, remove end cover.
NOTE: After removing end cover: check oil sump gasket for damage.
If necessary, remove oil sump and replace oil sump gasket.
NOTE: As from 4/98, a new type of radial seal is used in the Series and as a
replacement. This radial seal may only be supported with a "support bushing".
If the radial seal is supported without the support bushing (1) for more than six
months, operational reliability will no longer be assured and the radial seal
must not be used any further.
2006 BMW X5 30i
2004-2006 ENGINE Engine Mechanical - Repair Instructions - X3 & X5 (M54)
sábado, 2 de octubre de 2021 11:25:51 p. m. Page 89 © 2011 Mitchell Repair Information Company, LLC.
