12
© 2005 Directed Electronics, Inc.

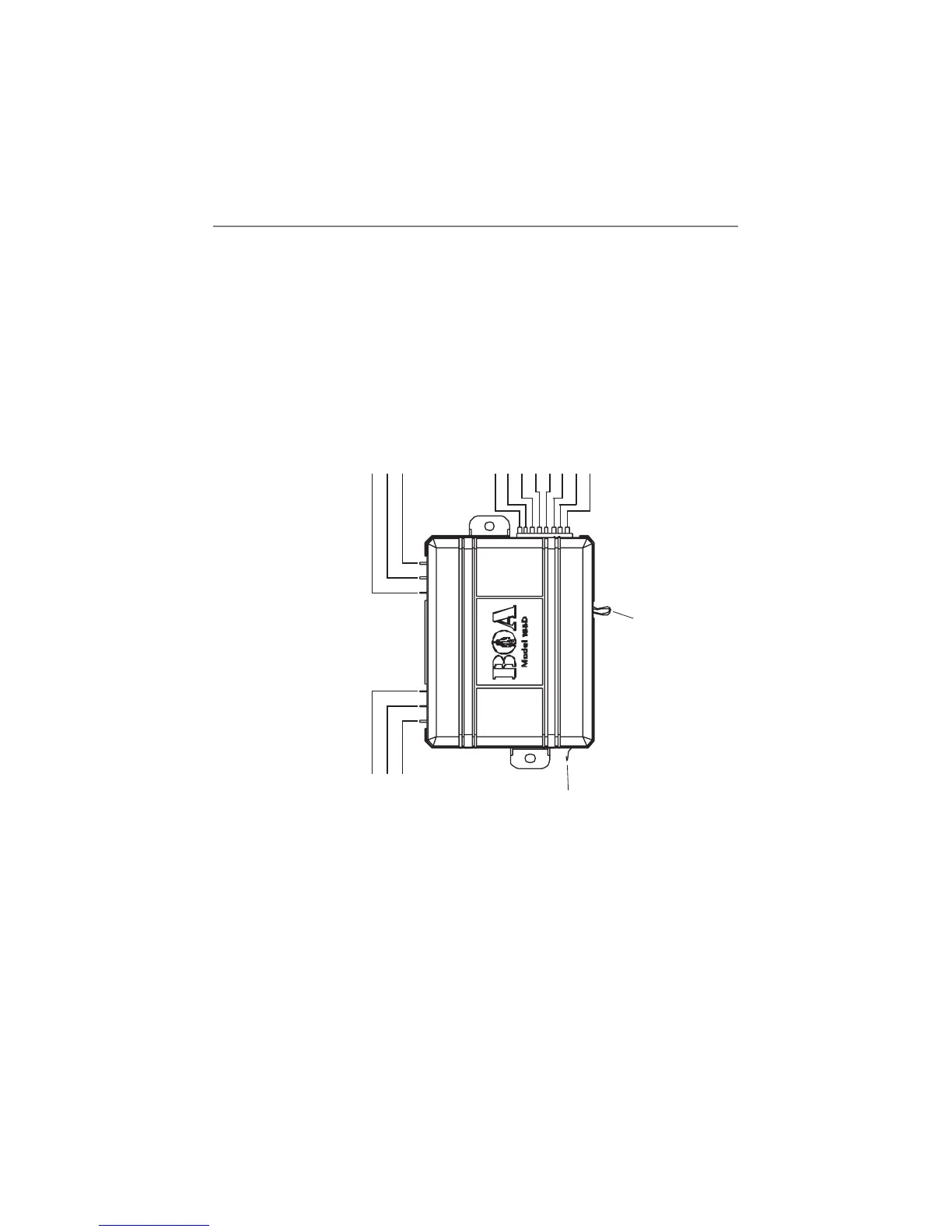

wwiirriinngg qquuiicckk rreeffeerreennccee gguuiiddee
ANTENNA
BLUE WIRE LOOP -
CUT FOR DIESEL VEHICLES
RED (+) 30A high current 12V input
PINK (+) output to ignition circuit
PINK/WHITE (+) output to 2nd ignition
RED (+) 30A high current 12V input
ORANGE (+) 30A output to accessory circuit
VIOLET (+) output to starter circuit
GRAY (-) hood pin shutdown input
BLACK ground
WHITE/BLUE (-) remote start activation input
LIGHT GREEN/BLACK factory alarm disarm
BROWN (+) brake switch shutdown input
VIOLET/WHITE tachometer input
WHITE (-) parking light flash output
BLUE (-) 200 mA status output
