13
© 2005 Directed Electronics, Inc.
step 1
Ground Wire
The BLACK (H1/5) wire on the main 8-pin harness is ground.
This wire should be connected to a clean, paint-free area of metal
only in the drivers kick panel area. First strip back a ¾-inch
section of the insulation off the BLACK wire and crimp a ring
terminal (not provided) to that wire. Locate a clean, paint-free
metal surface in the drivers kick panel. Using a self-tapping
screw, drill the screw with the ring terminal to the metal area.
Once screwed down, pull on the wire to ensure a good connec-
tion.

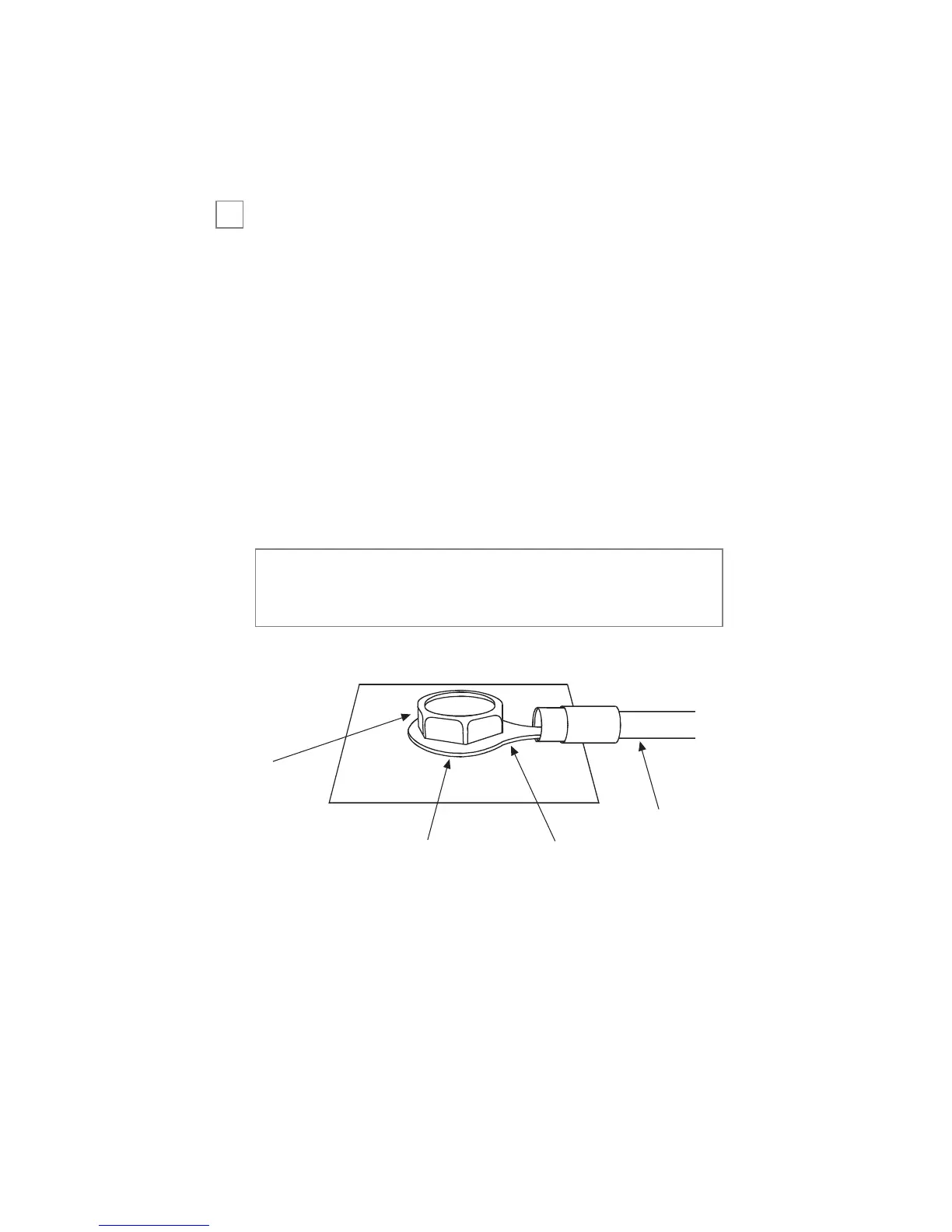

SELF-TAPPING
BOLT OR SCREW
RING
TERMINAL
GROUND
WIRE
NOTE: REMOVE ANY PAINT
BELOW RING CONNECTOR
DIA-591
note: More problems are attributed to poor ground con-
nections than any other cause. Take extra care to ensure
the ground is a clean metal-to-metal contact and secure.
