end) where the elastic cord is exposed.
7. Attach each looped end of the elastic cords (protruding out sides of back flap) around
each black shock knob on respective side of stroller, as shown in Fig. 6 (right side
shown). The cord locks allow the loop to be enlarged or reduced, thereby adjusting the
tension.
8. Locate black plastic end plugs at outboard ends of stroller. Note hole on top of each
plug. Locate metal wire stay at front of Sun Shield (see Fig. 7). Pull Sun Shield forward
and insert ends of metal stay into holes on the black plastic plugs.
9. Stretch each elastic edge of the Sun Shield and route under each respective side
of frame tube as shown in Fig. 8.
10. Center rear flap of Sun Shield on stroller handlebar. Inspect air passage above
stroller seat. Make sure air opening is not obstructed (Fig. 9).
11. To place passenger into the stroller, pull the front of the Sun Shield off the front
of stroller, then lift up, stretch and roll over the forward edge of stroller canopy as shown
in Fig. 10. This will temporarily hold the Sun Shield out of your way while you place the
child into the seat.
12. Once your child is secured in the safety harness (refer to your stroller Owners
Manual, Seat Safety Harness section), release the Sun Shield from canopy and re-
secure wire stay into holes on end plugs and elastic under frame sides. Fig. 11 shows
a Sun Shield correctly installed.
CARE INSTRUCTIONS:
Hand wash cold and hang dry. Do not dry clean, iron, or place in dryer.
LIMITED WARRANTY:
BOB Trailers Inc. takes pride in its workmanship and strives to manufacture the best
products possible. Therefore, we warranty the Sun Shield against defects in material
and workmanship subject to the conditions listed below. Since no product is indestructible,
it does not cover defects attributable to or resulting from normal wear, abuse or alteration.
The Sun Shield is warranted for one year from the date of original purchase.
Warranty is only valid for the original purchaser.
Proof of purchase is required to exercise this warranty.
Labor and freight charges are not included.
Normal wear, neglect, abuse, accidents, improper use are not covered by this warranty.
Warranty claims must be made through an authorized dealer.
This warranty is limited to the repair or replacement of the defective part. BOB shall
in no event be responsible for consequential or special damages.
This limited warranty is the only express or implied warranty applicable to BOB. Any
implied warranties, including warranties of merchantability and fitness shall be limited
in scope and duration in accordance with this limited warranty.
P2
BOB Trailers, Inc. 2006

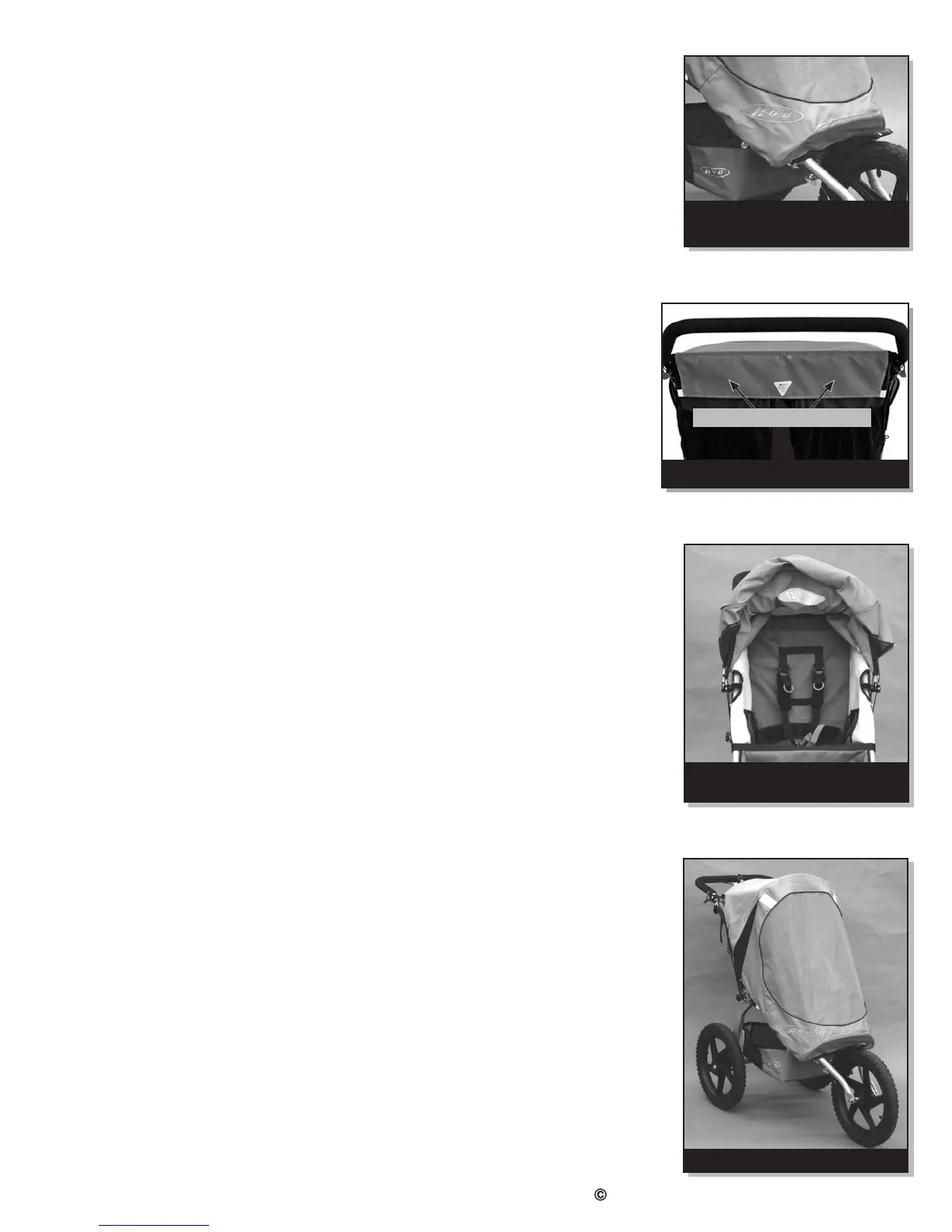

Fig. 9 Rear Flap centered on bar.
Air Passage unobstructed
Fig. 8 Elastic properly routed
under frame sides and ends.
Fig. 10 Shield placed on
forward edge of canopy
Fig. 11 Shield correctly installed
