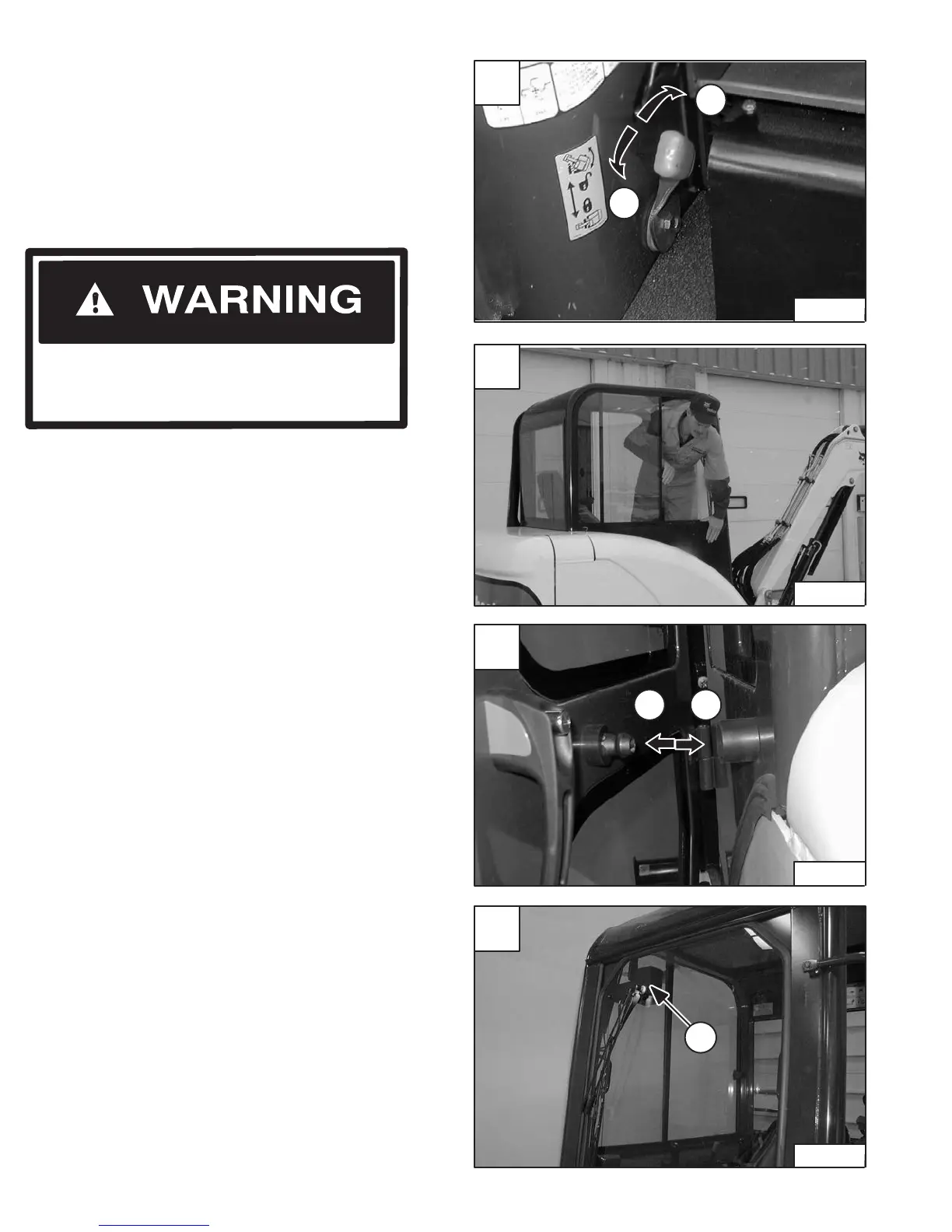

SLEW LOCK
Move the lever (Item 1) [A] down to engage the Slew Lock.
When the Slew Lock is engaged (locked), the
upperstructure of the excavator is locked to the track frame
and will not rotate. The upper structure must be parallel to
the track frame to engage the Slew Lock.
Move the lever (Item 2) [A] up to disengage the
upperstructure from the track frame. Secure the lever in the
unlocked position.
AVOID INJURY
The Swing Lock lever must be engaged when
transporting the machine.
W–2197–0595
OPERATOR CAB (ROPS / TOPS) (If Equipped)
Emergency Exit
The left door and right rear window provide exits.
Slide the window to the front of the excavator and exit
through the side window [B].
Cab Door
The cab door can be locked with the same key as the
starter switch (if equipped).
Push the door all the way open (Item 1) [C] until the latch
engages to hold the door in the open position.
Firmly pull the door away from the cab (Item 2) [C] to
disengage the latch and close the door.
Front Window
The front window is equipped with a wiper (Item 1) [D] and
washer.
