Bobcat 331 - Front Window (Cont’d)

A
P–19665
C
P–19512
Unlock
Lock
D
P–19668
331/331E/334 Excavator
Operation & Maintenance Manual
9
OPERATOR CAB (ROPS / TOPS) (Cont’d)
Front Window (Cont’d)

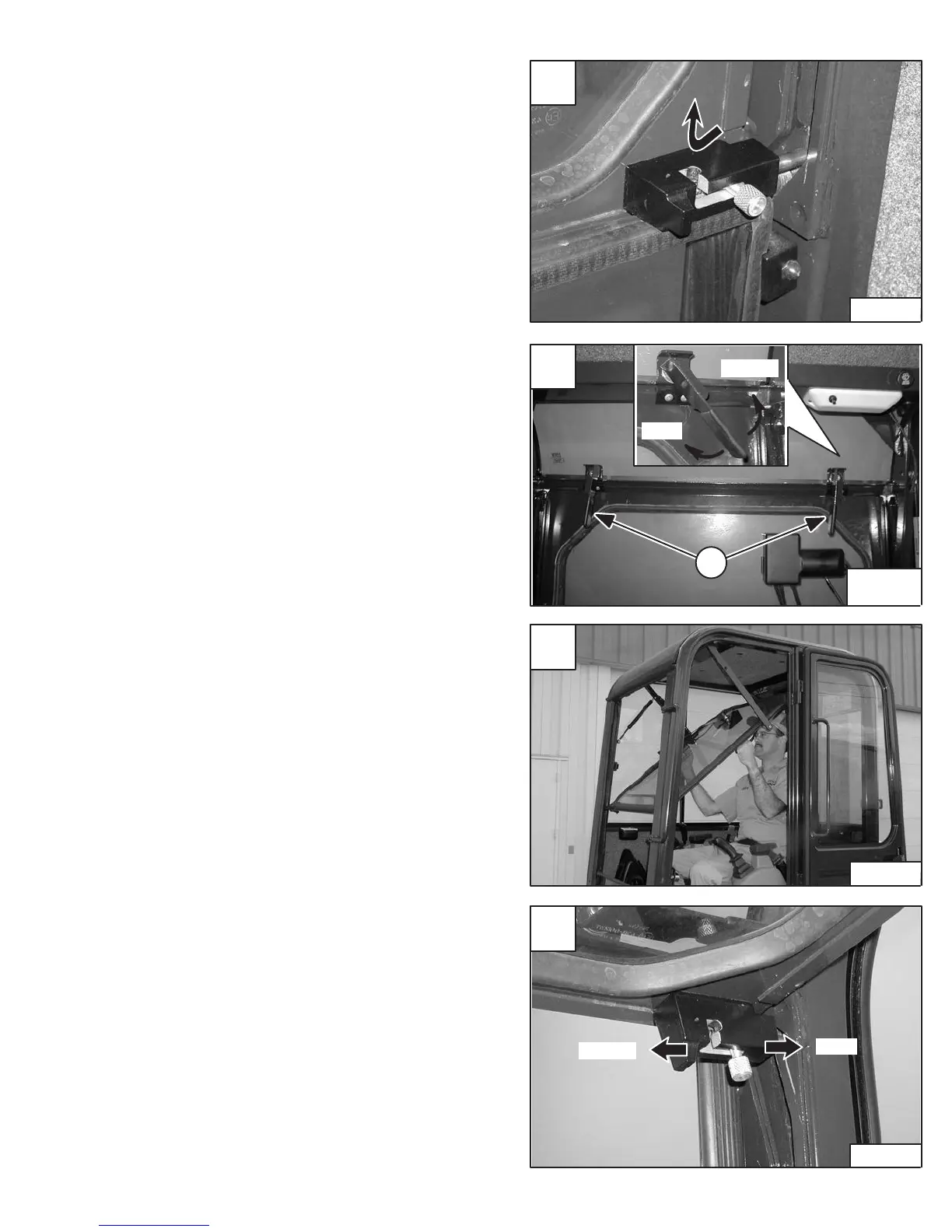

Opening The Front Window
Release the lower window latch pins and turn to the
unlocked position [A].
Turn the two top latches (Item 1) [B] to the unlocked
position.
Use both window grab handles to pull the top of the window
in [C].
Continue moving the window in and up over the operator’s
head until the window engages the pocket at the top, rear
of the cab.
Hold the bottom of the window up and lock the two window
latch pins. Make sure that the pins are secured to hold the
window up [D].
Closing The Front Window
Hold the bottom of the window up and release both window
latch pins and put them in the unlocked position [D].
Use both window grab handles to pull the window down [C].
Rotate the top latches (Item 1) [B] to the locked position.
Lock the window latch pins [A] at the bottom of the window.
B
Unlock
Lock
1
P–30220
P–30221
