10 Operation & Maintenance Manual
331/331E/334 Excavator
STEERING LEVERS / FOOT PEDALS
Forward And Reverse Travel
NOTE: The following procedures describe forward,
reverse, left & right as seated in the operator’s
seat.

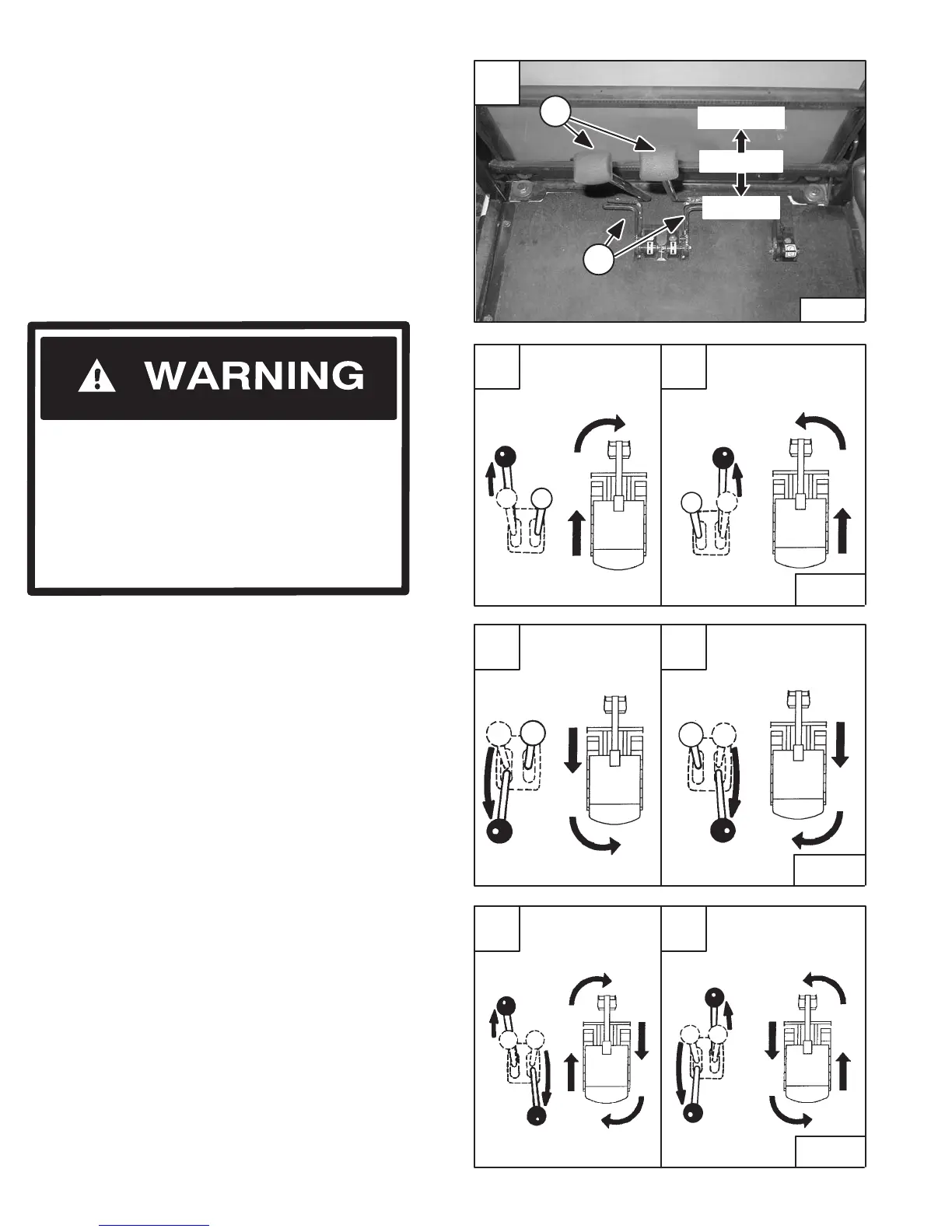

Put the blade so that it is at the front of the machine (as you
sit in the operator’s seat). Slowly move both steering
levers* (Item 1) [A] forward for forward travel; backward for
reverse travel.
*Travel can also be controlled with foot pedals (Item 2) [A].
Pivot the heel of the pedals forward for additional space on
the floor.
• Check the blade location before traveling.
When the blade is to the rear, operate the
steering levers/foot pedals in the opposite
direction to when the blade is in the front.
• Move the steering levers/foot pedals slowly.
Abrupt lever motion will cause the machine
to jerk.
AVOID INJURY OR DEATH
W–2235–0396
Turning
Right Turn
Push the left steering lever forward to turn right [B] while
traveling forward.
Pull the left steering lever backward to turn right [D] while
traveling backward.
Counter–Rotation Right Turn
Push the left steering lever forward and pull the right
steering lever backward [F].
Left Turn
Push the right steering lever forward to turn left [C] while
traveling forward.
Pull the right steering lever backward to turn left [E] while
traveling backward.
Counter–Rotation Left Turn
Push the right steering lever forward and pull the left
steering lever backward [G].
B
Right Turn
(Forward)
Left Turn
(Forward)
C
B–10979
MC–02109
