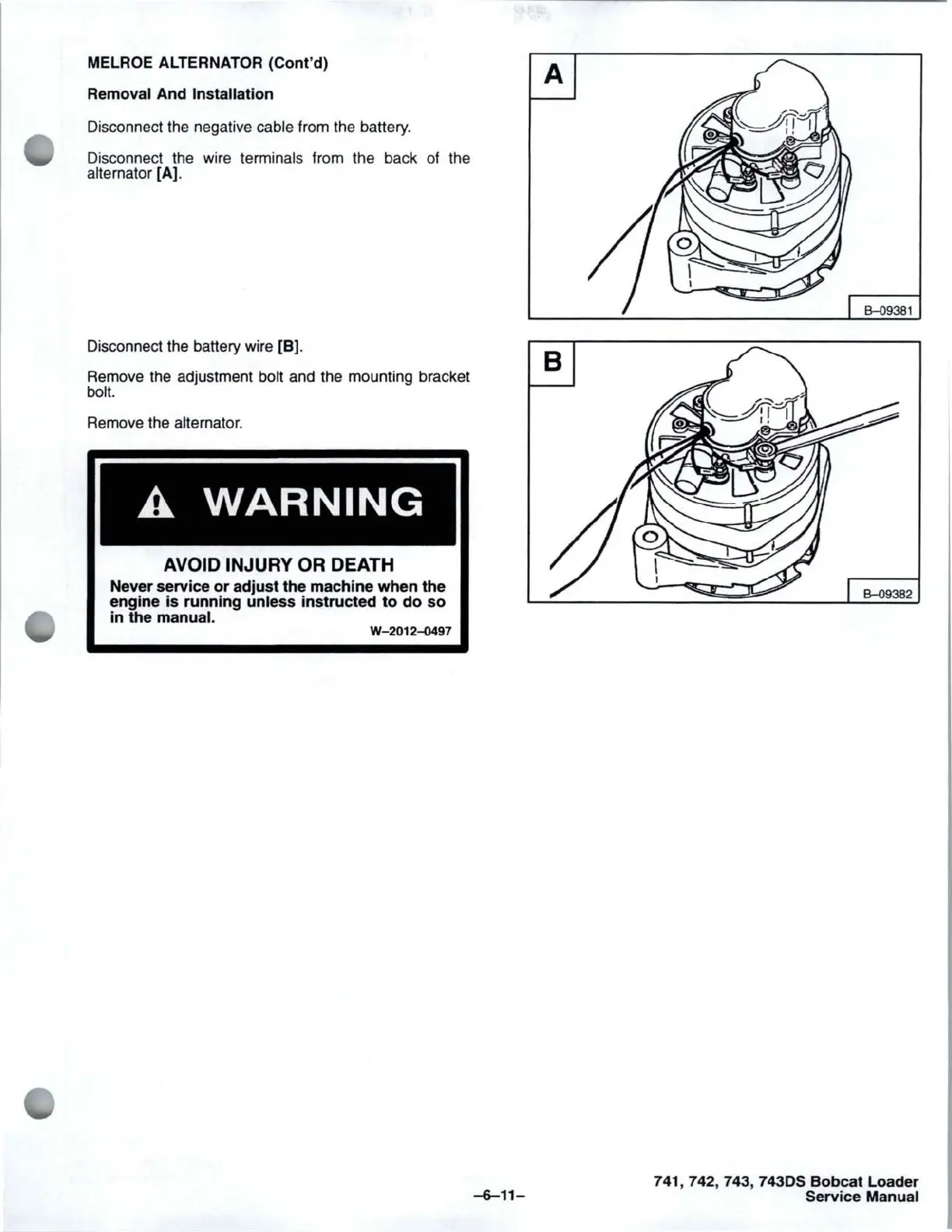

MELROE ALTERNATOR (Cont'd)
Removal And
Installation
Disconnect the negative cable from the battery.
Disconnect the wire terminals from the back
of the
alternator [A].
Disconnect the battery wire [B).
Remove the adjustment
bolt and the mounting bracket
bolt.
Remove the alternator.
A WARNING
AVOID INJURY OR DEATH
Never service or adjust the machine when the
engine
is running unless instructed to do so
in the manual.
W-2012-D497
A
-6-11-
B-09381
741,742, 743, 74305 Bobcat Loader
Service Manual
