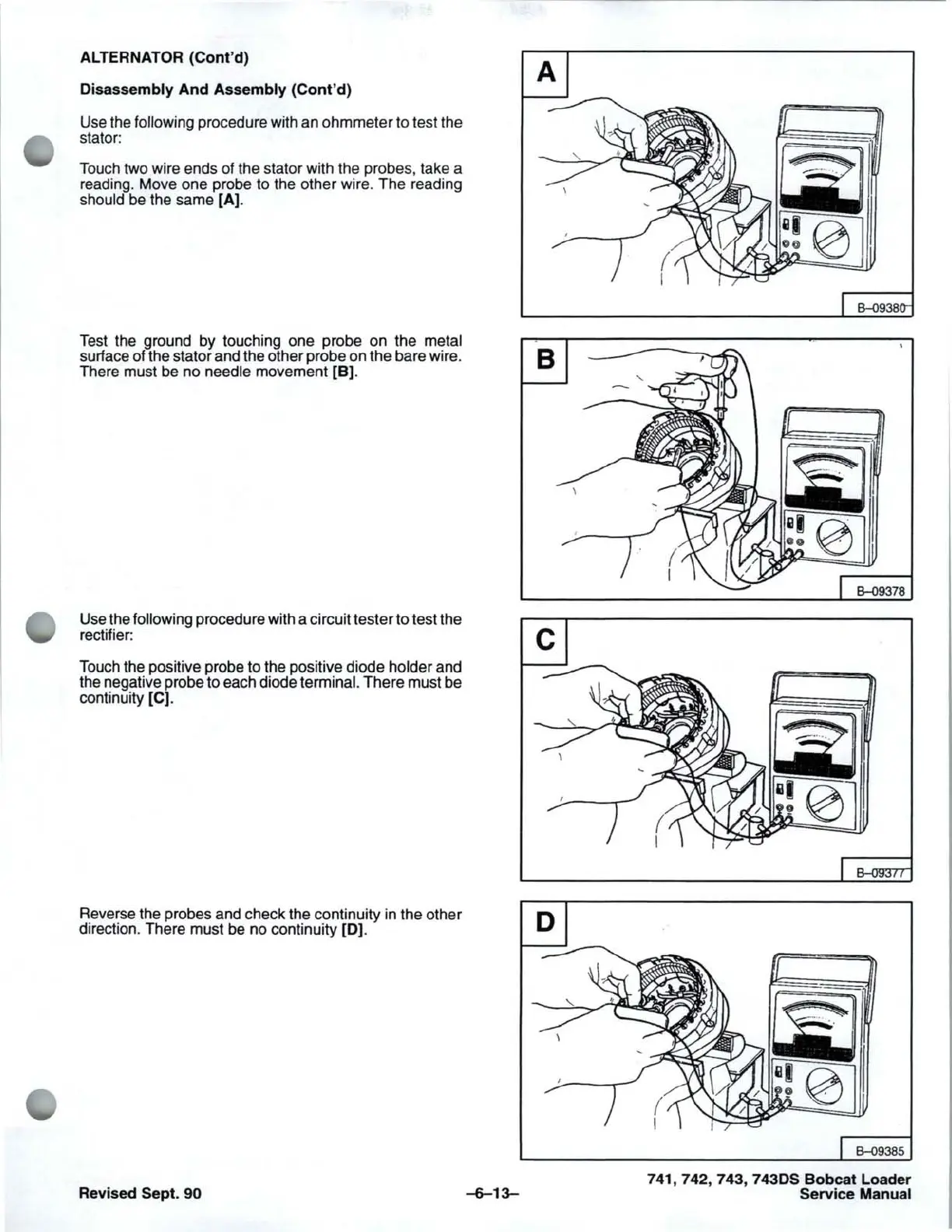

ALTERNATOR (Cont'd)
Disassembly And Assembly (Cont'd)
Use the following procedure with an ohmmeter to test the
stator:
Touch two wire ends of the stator with the probes, take a
reading. Move one probe to the other wire. The reading
should be the same [A).
A
Test the ground by touching one probe on the metal
surface of the stator and the other probe on the bare wire. B
There must be no needle movement [B] .
Use the following procedure with a circuit tester to test the
rectifier: C
Touch the positive probe to the positive diode holder and
the negative probe to each diode terminal. There must be
continuity [C).
Reverse the probes and check the continuity in the other
direction. There must be no continuity [0] .
