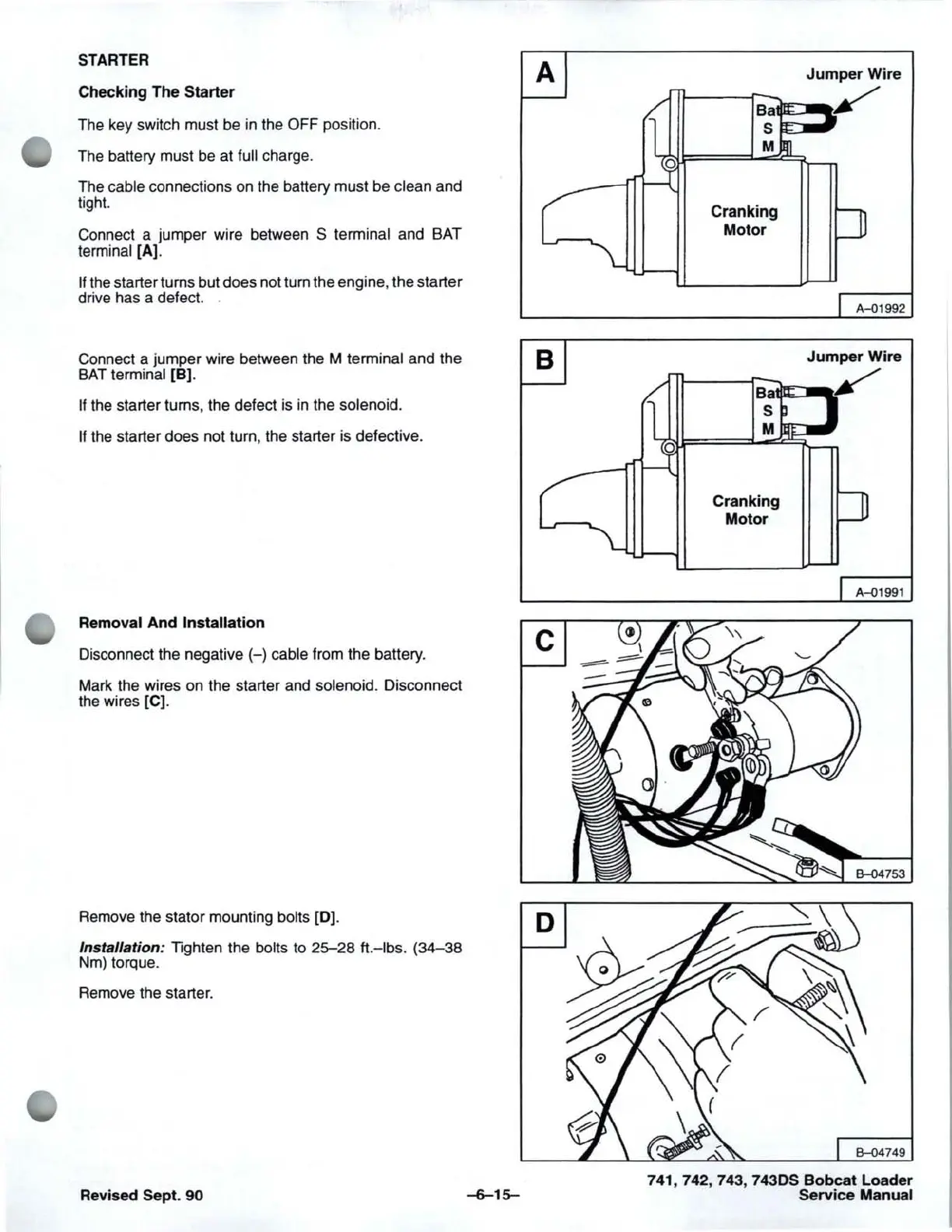

STARTER
Checking The Starter
The key switch must be in the OFF position.
The battery must be at
full charge.
The
cable connections on the battery must be clean and
tight.
Connect a jumper wire between
S terminal and BAT
terminal [A].
If the starter turns but does not turn the engine, the starter
drive has a defect.
Connect a jumper wire between the M
terminal and the
BAT terminal [B].
If the starter turns, the defect is in the solenoid.
If the starter does not turn, the starter is defective.
Removal And Installation
Disconnect the negative (-) cable from the battery.
Mark the wires
on the starter and solenoid. Disconnect
the wires [C].
Remove the stator mounting
bolts [0] .
Installation: Tighten the bolts to 25-28 ft .- Ibs. (34-38
Nm) torque.
Remove the starter.
Revised Sept. 90
A
B
c
D
-6-15-
Ba
S
M
Cranking
Motor
Ba
S
M
Cranking
Motor
Jumper Wire
/
A-{)1992
A-{)1991
741, 742, 743, 7430S Bobcat Loader
Service Manual
