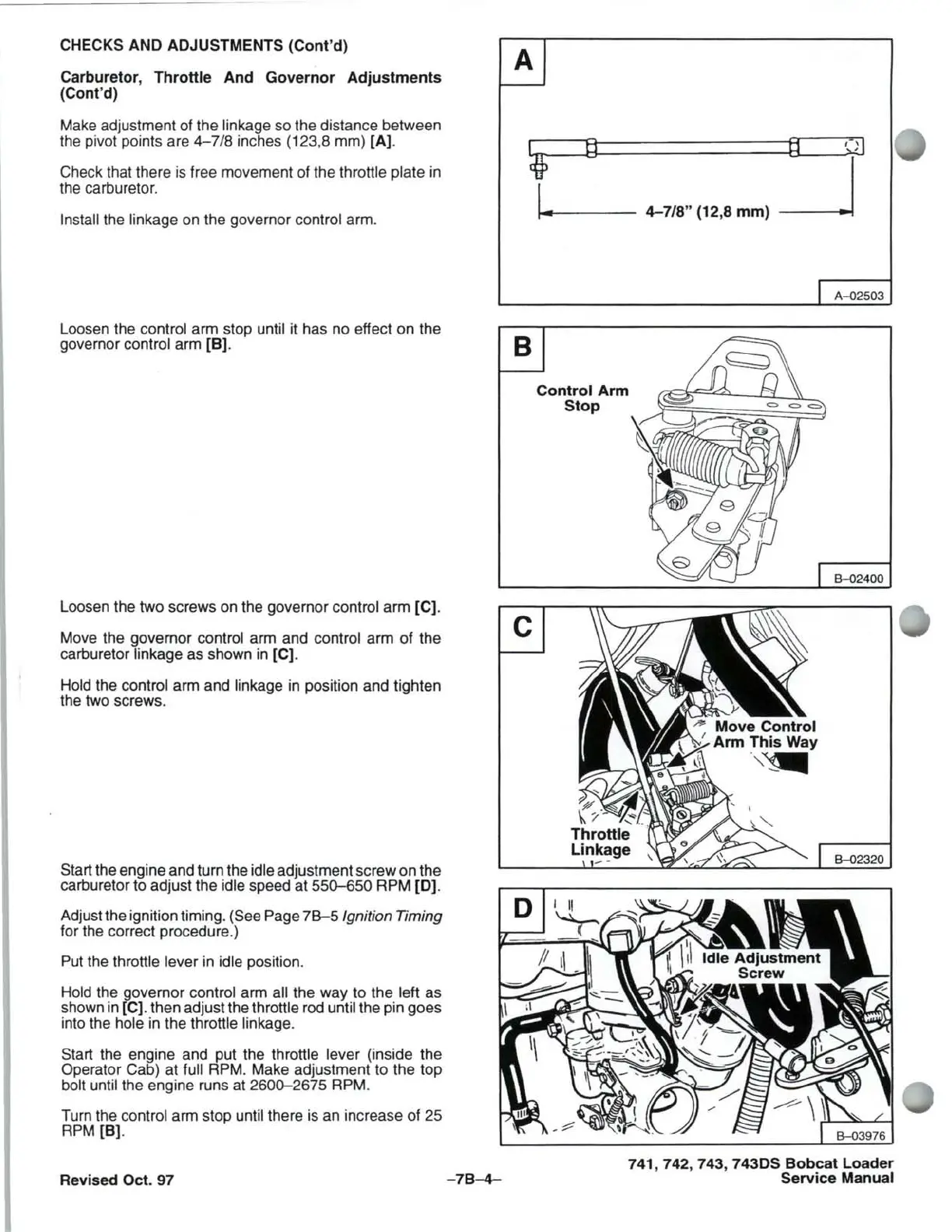

CHECKS AND ADJUSTMENTS
(Cont'd)
Carburetor,
Throttle
And
Governor
Adjustments
(Cont'd)
Make adjustment of the linkage so the distance between
the pivot points are
4-7/8
inches (123,8 mm) [A].
Check that there
is
free movement of the throttle plate
in
the carburetor.
Install the linkage on the governor control arm.
A
i~~~------~§~~d
11-0
...
----
4-7/8"
(12,8
mm)
~
A-02503
Loosen the control arm stop until it has no effect on the
governor
control arm [B). B
Loosen the two screws on the governor control arm [C).
Move the governor
control arm and control arm of the
carburetor linkage as shown
in
[C).
Hold the control arm and linkage
in
position and tighten
the two screws.
Start the engine and turn the idle adjustment screw on the
carburetor to adjust the idle speed at
55~50
RPM
[0).
Adjust the ignition timing. (See Page
78-5
Ignition Timing
for the correct procedure.)
Put the throttle lever
in
idle position.
Hold the governor control arm all the way to the left as
shown
in
[C). then adjust the throttle rod until the pin goes
into the hole
in
the throttle linkage.
Start
the engine and put the throttle lever (inside the
Operator Cab) at full RPM. Make adjustment to the top
bolt until the engine runs at
2600-2675
RPM.
Turn the control arm stop until there is an increase of
25
RPM [B].
Revised Oct. 97
c
-7B-4-
Control
Arm
Stop
B-02400
B-02320
741,742,
743,
7430S
Bobcat
Loader
Service
Manual
