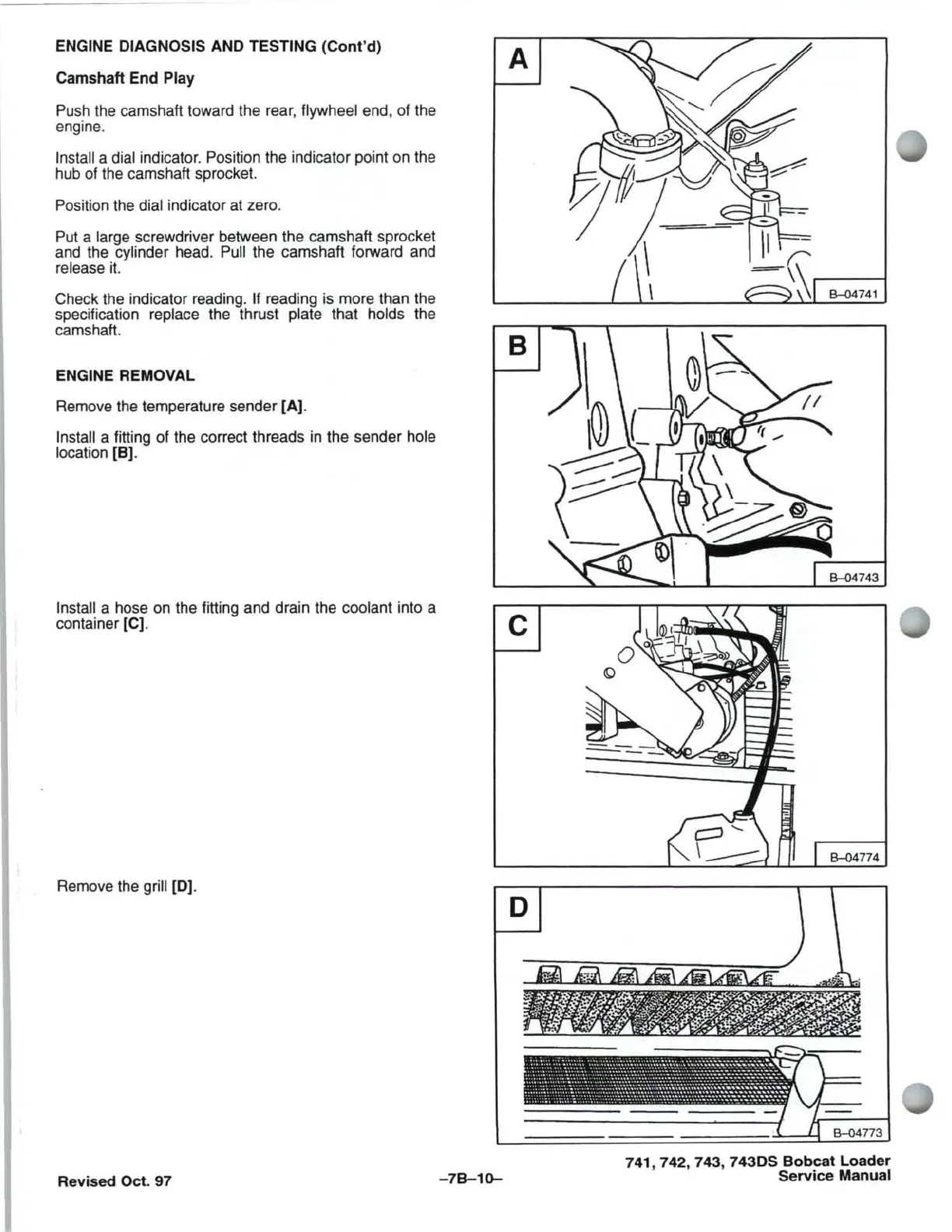

ENGINE DIAGNOSIS AND TESTING
(Cont'd)
Camshaft End Play
Push the camshaft toward the rear, flywheel end, of the
eng
i
ne.
Install a dial indicator. Position the indicator point on the
hub of the camshaft sprocket.
Position the dial indicator at zero.
Put a large screwdriver between the camshaft sprocket
and the cylinder head.
Pull the camshaft forward and
release
it.
Check the indicator reading. If reading is more than the
specification replace the thrust plate that holds the
camshaft.
ENGINE REMOVAL
Remove the temperature sender [A).
Install a fitting of the correct threads
in
the sender hole
location [B).
A
B
Install a hose on the fitting and drain the coolant into a
container [C).
C
Remove the grill [0).
Revised Oct. 97
-7B-1~
B-04741
741, 742, 743,
7430S
Bobcat
Loader
Service Manual
