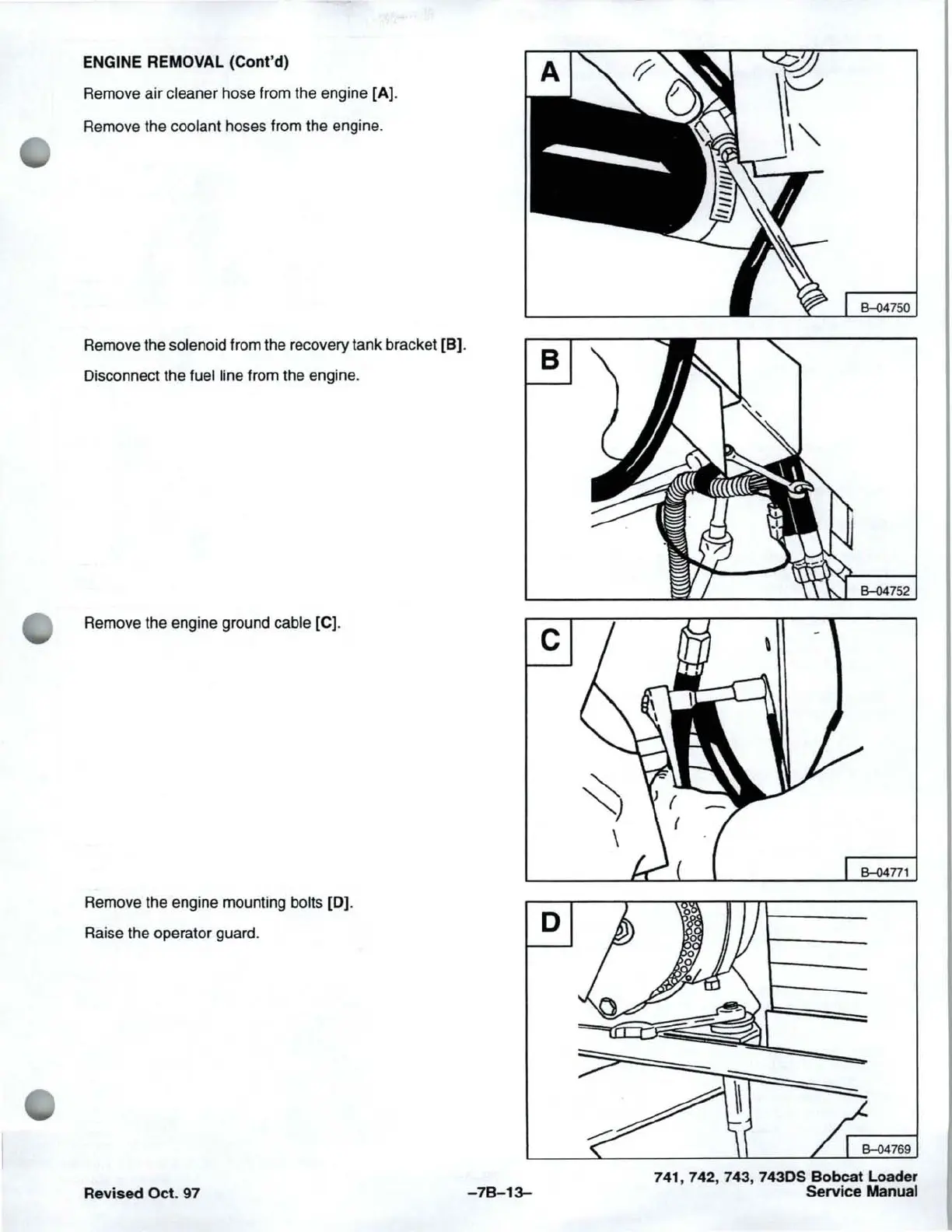

ENGINE REMOVAL
(Cont'd)
Remove air cleaner hose from the engine [A).
Remove the
coolant hoses from the engine.
Remove the
solenoid from the recovery tank bracket [B).
Disconnect the
fuel line from the engine.
Remove the engine ground
cable [C).
Remove the engine mounting
bolts
[0).
Raise the operator guard.
Revised Oct. 97
-7B-13-
B
c
~
\
D
8-04750
8-04752
8-04771
741,742,743,
7430S
Bobcat
Loader
Service Manual
