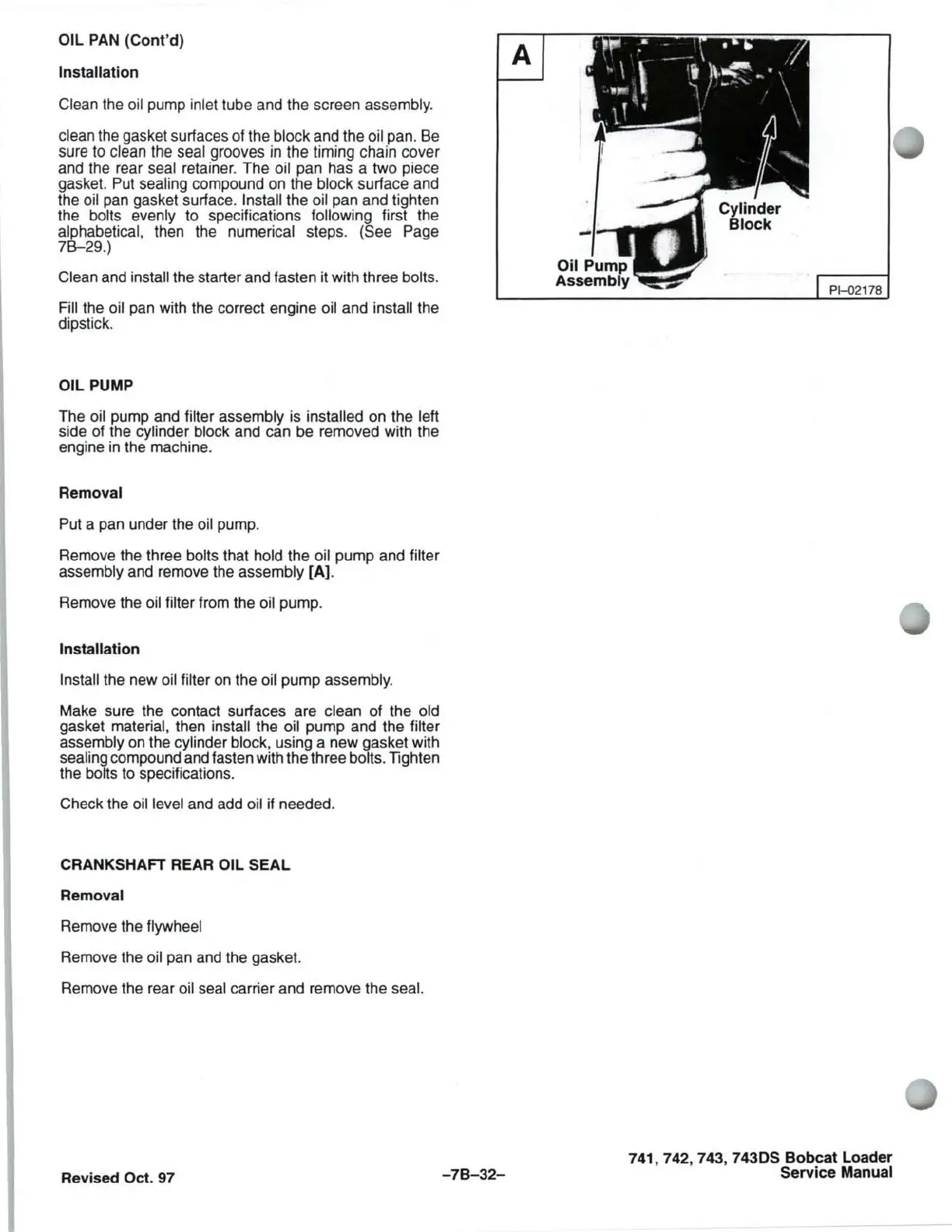

OIL
PAN
(Cont'd)
Installation
Clean the oil pump inlet tube and the screen assembly.
clean the gasket surfaces of the block and the oil pan. Be
sure to clean the seal grooves
in
the timing chain cover
and the rear seal retainer. The oil pan has a two piece
gasket. Put sealing compound
on
the block surface and
the oil pan gasket surface. Install the oil pan and tighten
the bolts evenly to specifications
following first the
alphabetical, then the numerical steps.
(See Page
7B-29
.)
Clean and install the starter and fasten it with three bolts.
Fill the oil pan with the correct engine oil and install the
dipstick.
OIL PUMP
The oil pump and filter assembly is installed on the left
side of the cylinder block and can be removed with the
engine
in
the machine.
Removal
Put a pan under the oil pump.
Remove the three bolts that hold the oil pump and filter
assembly and remove the assembly [A).
Remove the oil filter from the oil pump.
Installation
Install the new oil filter
on
the oil pump assembly.
Make sure the contact surfaces are clean of the old
gasket material, then install the oil pump and the filter
assembly
on
the cylinder block, using a new gasket with
sealing compound and fasten with the three bolts. Tighten
the bolts to specifications.
Check the oil level and add oil if needed.
CRANKSHAFT REAR OIL
SEAL
Removal
Remove the flywheel
Remove the oil pan and the gasket.
Remove the rear oil seal carrier and remove the seal.
Revised Oct. 97
A
-7B-32-
741, 742, 743,
7430S
Bobcat
Loader
Service Manual
