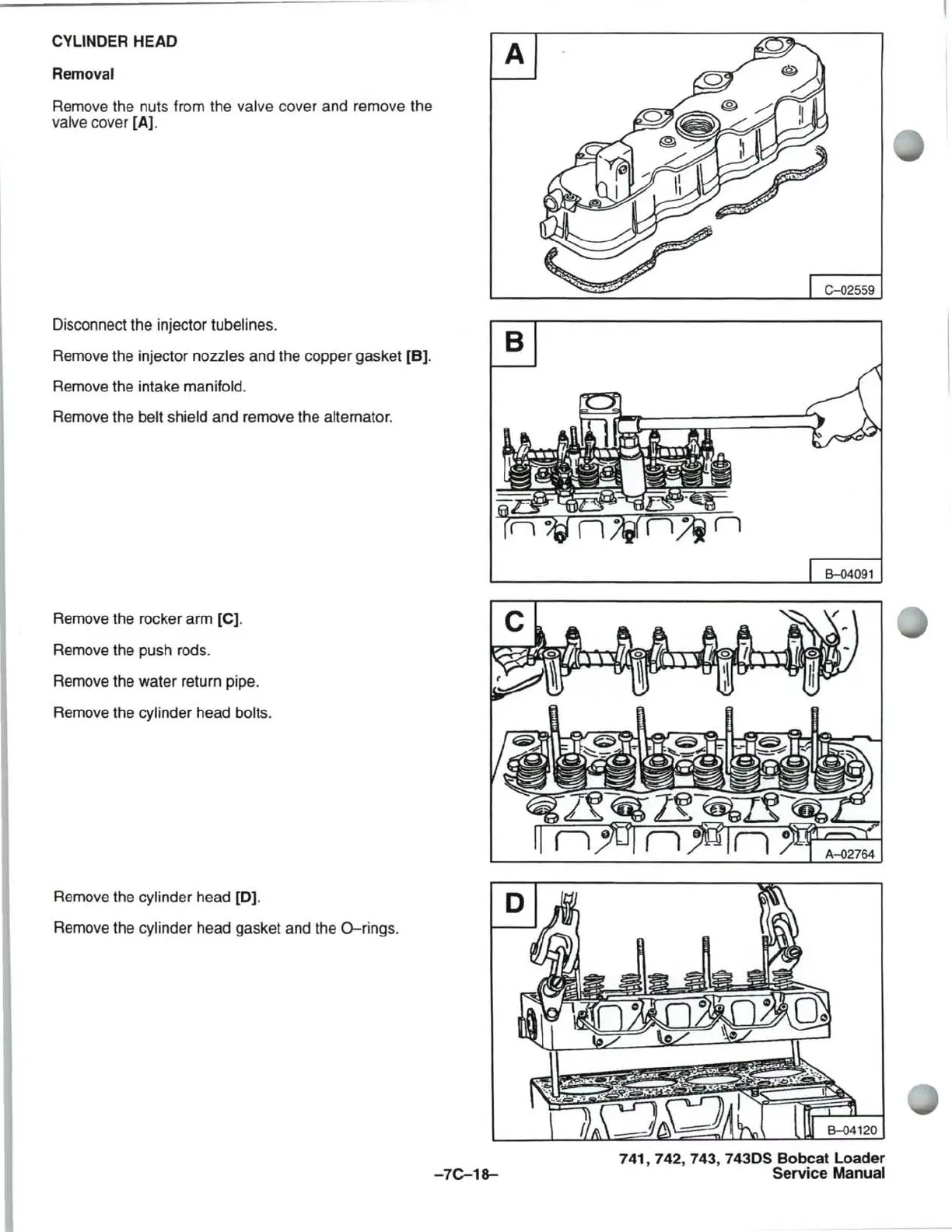

CYLINDER HEAD
Removal
Remove the nuts from the
valve cover and remove the
valve cover [A).
Disconnect the injector
tubelines.
Remove the injector nozzles and the copper gasket [B].
Remove the intake manifold.
Remove the belt shield and remove the alternator.
Remove the rocker arm [C].
Remove the push rods.
Remove the water return pipe.
Remove the
cylinder head bolts.
Remove the cylinder head [0].
Remove the cylinder head gasket and the O-rings.
A
8
-7C-1&-
741, 742, 743, 743DS Bobcat Loader
Service Manual
