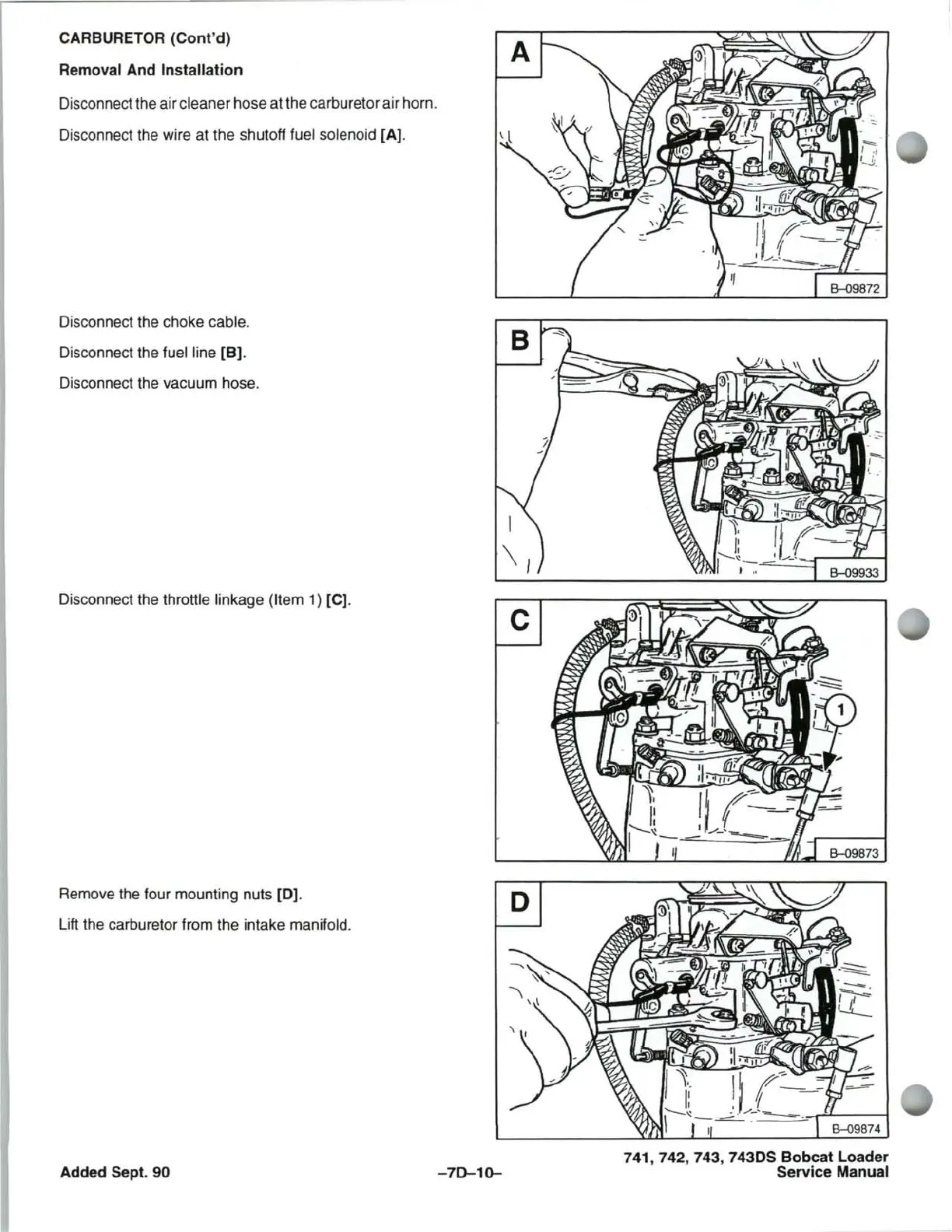

CARBURETOR (Cont'd)
Removal And Installation
Disconnect the air
cleaner hose at the carburetor air horn.
Disconnect the wire at the shutoff
fuel solenoid [AJ.
Disconnect the choke cable.
Disconnect the fuel line [BJ.
Disconnect the vacuum hose.
Disconnect the
throttle linkage (Item 1) [C].
Remove the four mounting nuts
[OJ.
Lift the carburetor from the intake manifold.
Added Sept. 90
-70-10-
741,742,743, 74305 Bobcat Loader
Service Manual
