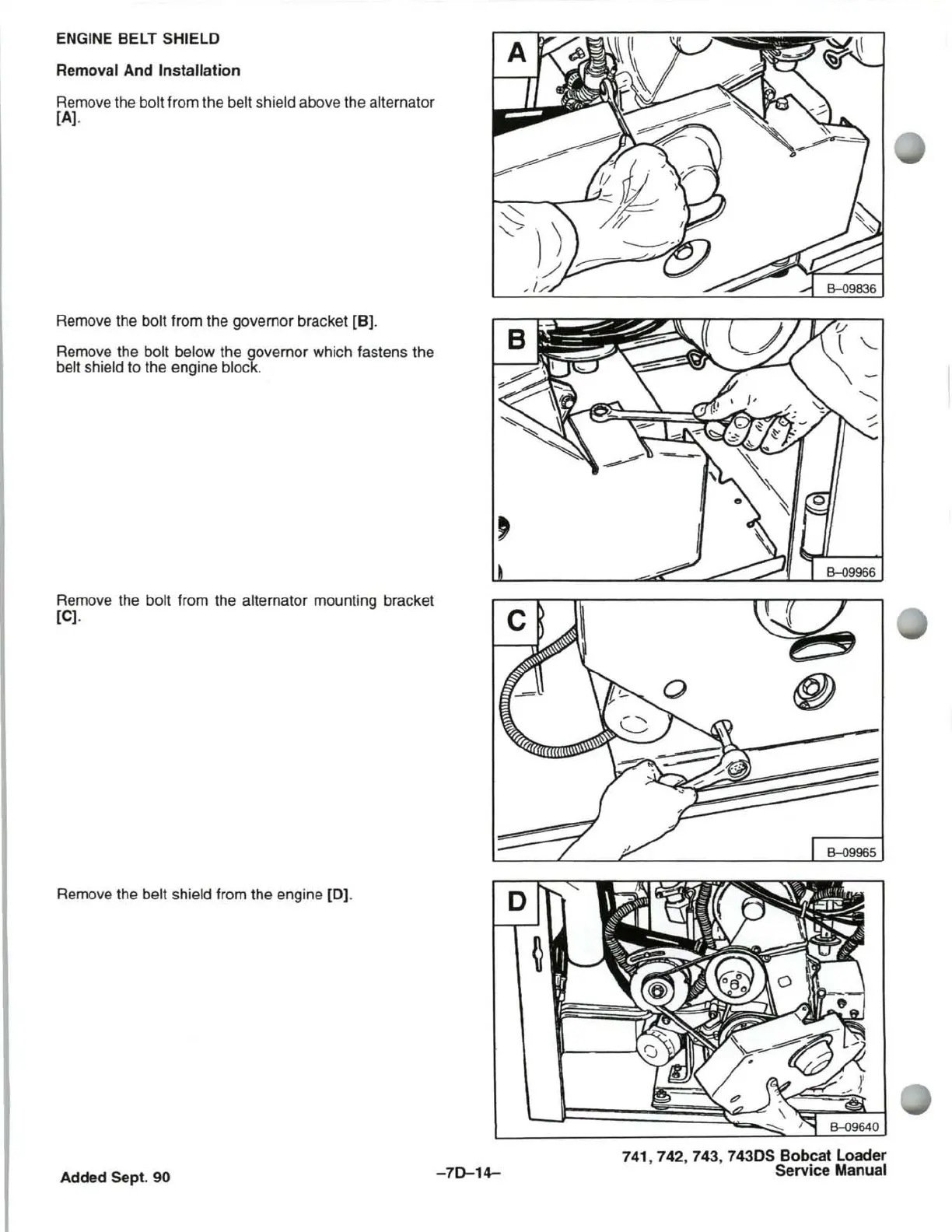

ENGINE BELT SHIELD
Removal
And
Installation
Remove the bolt from the belt shield above the alternator
[A].
Remove the bolt from the govemor bracket [B).
Remove the bolt below the governor which fastens the
belt shield to the engine block.
Remove the bolt from the alternator mounting bracket
[C].
Remove the belt shield from the engine [0).
Added Sept.
90
-70-14-
741, 742, 743,
7430S
Bobcat Loader
Service
Manual
