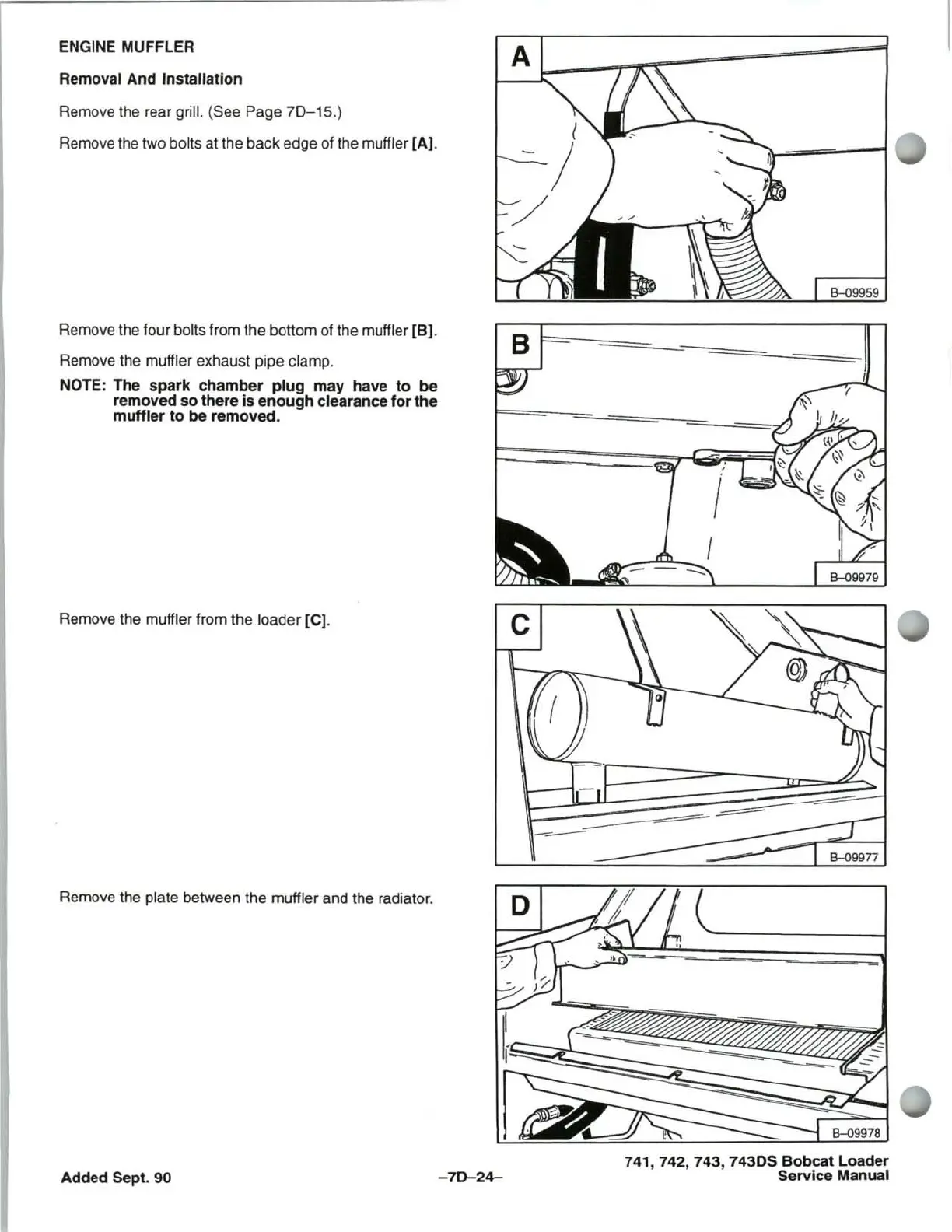

ENGINE MUFFLER
Removal And Installation
Remove the rear
grill. (See Page
70-15.)
Remove the two bolts at the back edge of the muffler [A].
Remove the four
bolts from the bottom of the muffler [B].
Remove the
muffler exhaust pipe clamp.
NOTE:
The spark chamber plug may have to be
removed so there is enough clearance for the
muffler to be removed.
Remove the
muffler from the loader [C].
Remove the
plate between the muffler and the radiator.
Added
Sept.
90
(
)
:/
-70-24-
9-09959
741,742,743,
7430S
Bobcat Loader
Service Manual
