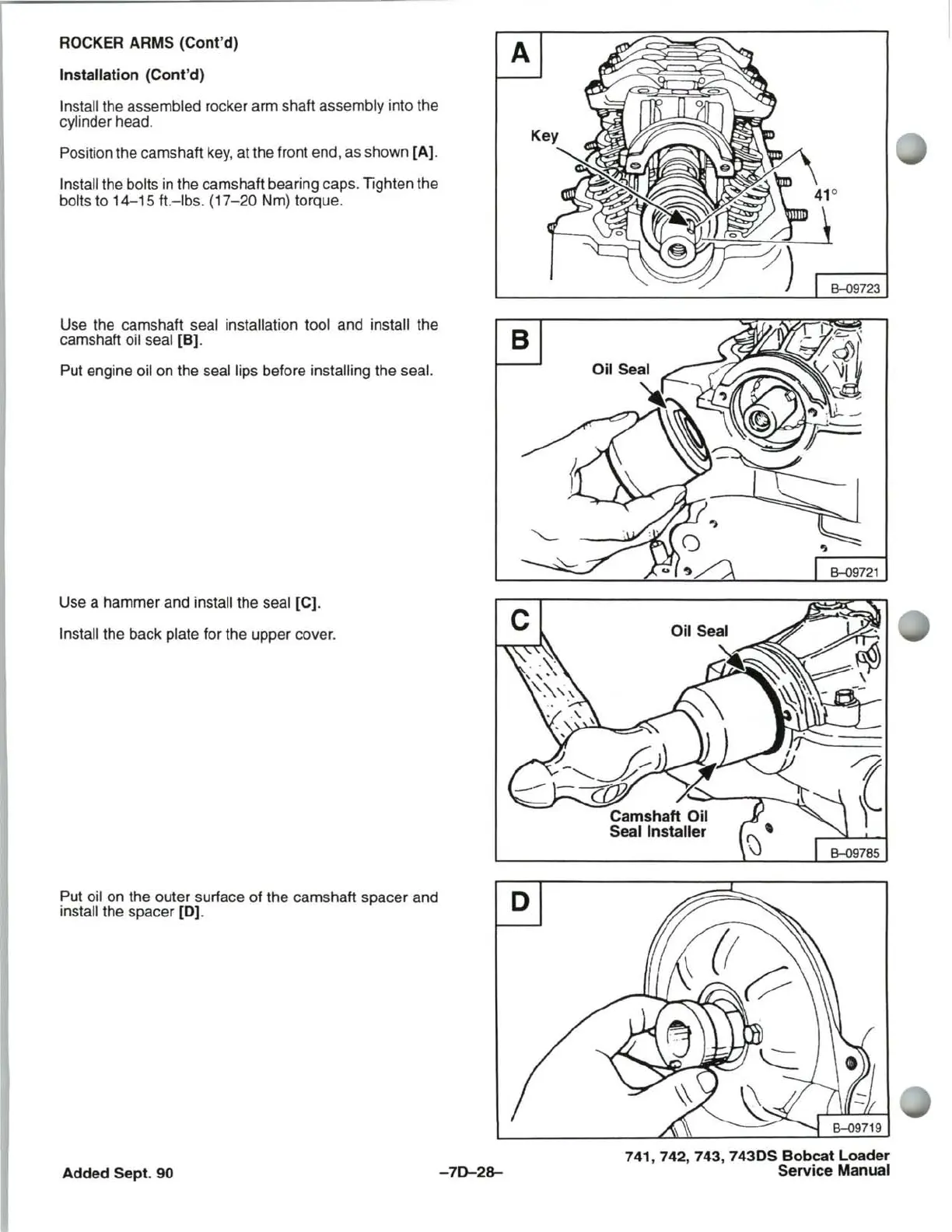

ROCKER ARMS (Cont'd)
Installation (Cont'd)
Install the assembled rocker arm shaft assembly into the
cylinder head.
Position the camshaft key, at the front end, as shown [A].
Install the bolts
in
the camshaft bearing caps. Tighten the
bolts to
14-15
ft.-Ibs. (17-20 Nm) torque.
Use the camshaft seal installation tool and install the
camshaft oil seal
[B].
Put engine oil
on
the seal lips before installing the seal.
Use a hammer and install the seal [C].
Install the back plate for the upper cover.
Put oil
on
the outer surface of the camshaft spacer and
install the spacer [0].
