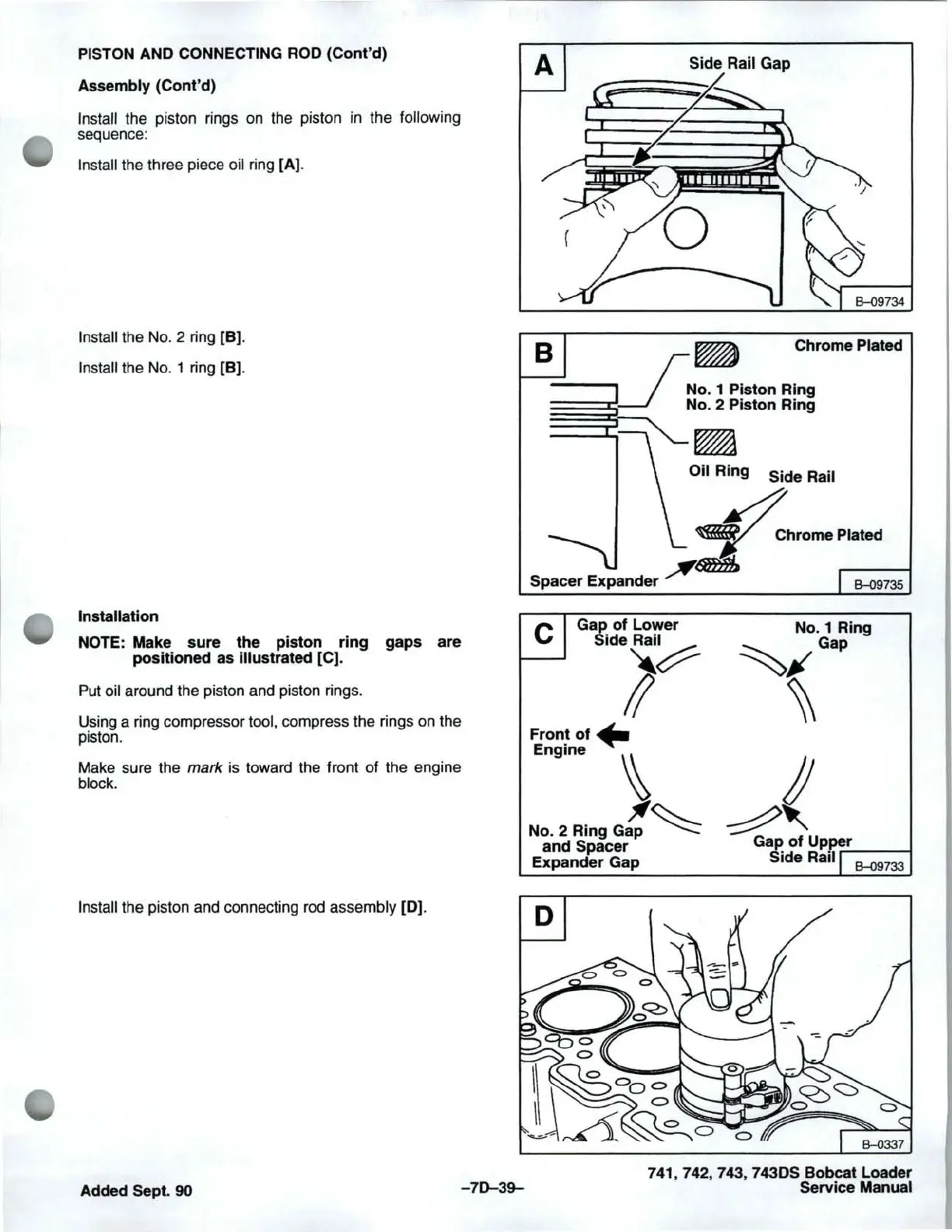

PISTON AND CONNECTING ROD (Cont'd)
Assembly (Cont'd)
Install the piston rings on the piston in the following
sequence:
Install the three piece oil ring [A].
Install the No.2 ring [B].
Install the No. 1 ring [B].
Insta"ation
NOTE:
Make sure the piston ring gaps are
positioned as illustrated [C].
Put oil around the piston and piston rings.
Using a ring compressor
tool, compress the rings on the
piston.
Make sure the
mark is toward the front of the engine
block.
Install
the piston and connecting rod assembly [0].
Added Sept. 90
A
B ~ Chrome Plated
r---=:!....-.... r
NO
. 1 Piston Ring
U ~o. 2 Piston Ring
-70-39-
----'-t~~
Oil Ring Side Rail
~hrome Plated
,.#'~
Spacer Expander 8-09735
C
Gap of Lower
No.1 Ring
SideRai~
~ Gap
'J
~
Front of ..
Engine ~
~{
No.2 Ring G:~
and Spacer
Gap of Upper
Expander Gap
Side
Rail I 8-09733
741, 742, 743, 7430S Bobcat Loader
Service Manual
