PISTON PIN

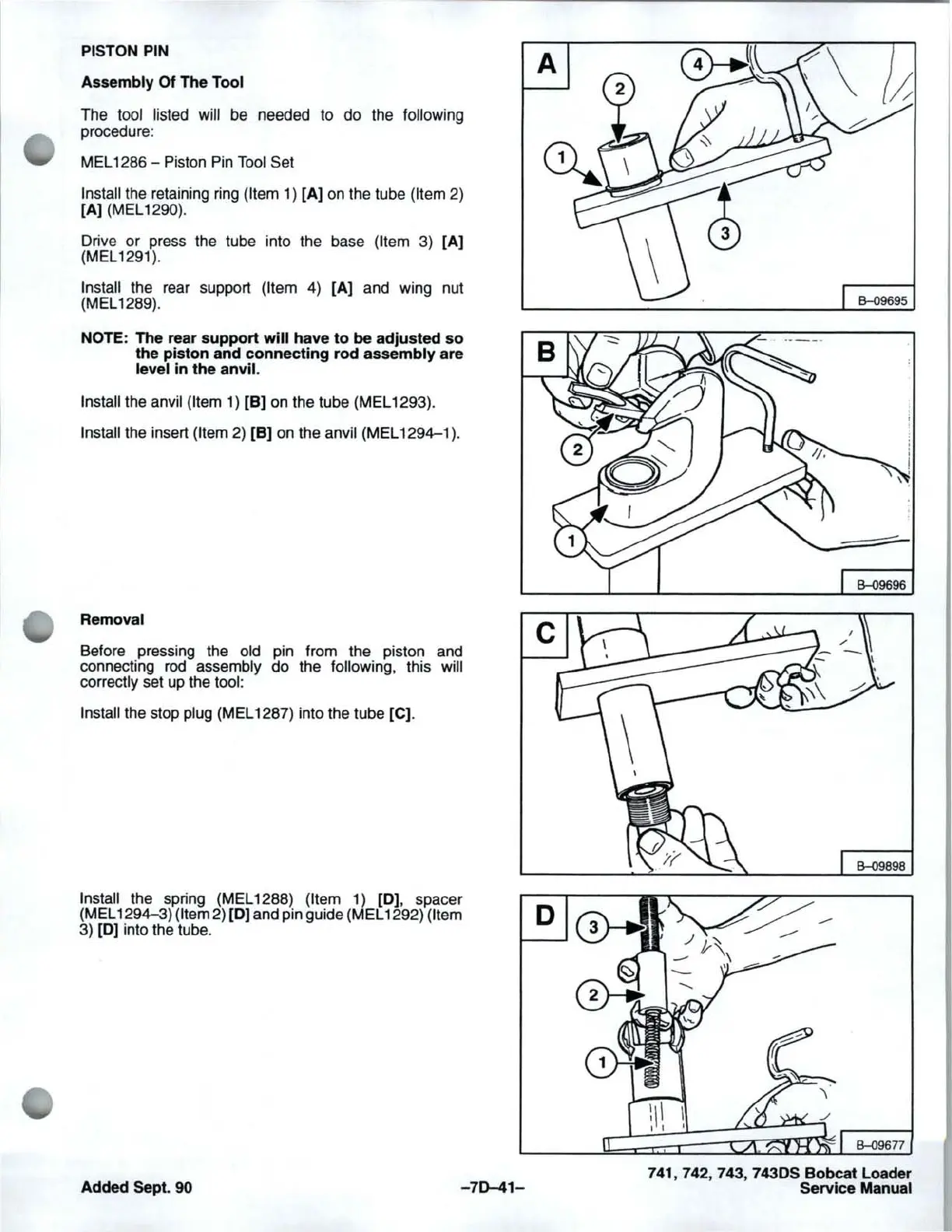

Assembly Of The Tool
The tool listed will be needed to do the following
procedure:
MEL 1286 - Piston Pin Tool Set
Install
the retaining ring (Item 1) [A] on the tube (Item 2)
[A] (MEL 1290).
Drive or press the tube into the base
(Item 3) [A]
(MEL1291).
Install the rear support (Item 4) [A] and wing nut
(MEL 1289).
NOTE: The rear support will have to be adjusted so
the piston and connecting rod assembly are
level in the anvil.
Install the anvil (Item 1) [B] on the tube (MEL 1293).
Install the insert (Item 2) [B] on the anvil (MEL 1294-1).
Removal
Before pressing the old pin from the piston and
connecting rod assembly do the following, this will
correctly set
up the tool:
Install the stop plug (MEL 1287) into the tube [C].
Install the spring (MEL 1288) (Item 1) [0] , spacer
(MEL 1294-3)
(Item 2) [0] and pin guide (MEL 1292) (Item 0
3) [0] into the tube.
