TIMING BELT
(Cont
'd)

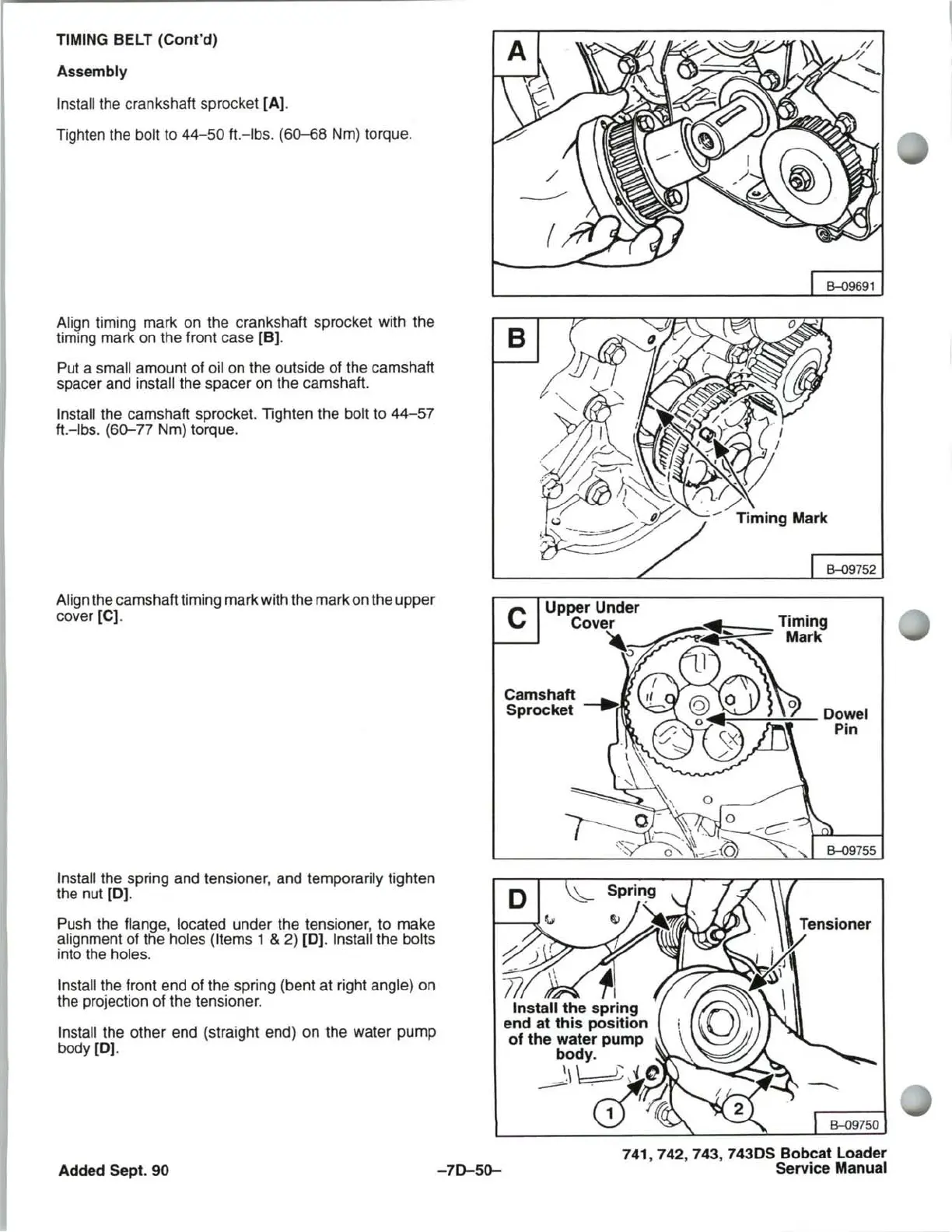

Assembly
Install the crankshaft sprocket [Aj.
Tighten the bolt to
44-50
ft
.
-Ibs
.
(60-68
Nm) torque.
8-09691
Al
i
gn
timing mark
on
the crankshaft sprocket with the B
timing mark on the front case [B).
Put a small amount of oil
on
the outside of the camshaft
spacer and install the spacer on the camshaft.
Install the camshaft sprocket. Tighten the bolt to
44-57
ft.
-Ibs
.
(60-77
Nm) torque.
8-09752
Align the camshaft timing mark with the mark
on
the upper
cover [C). C
Install the spring and tensioner, and temporarily tighten
the nut
(0).
Push the flange, located under the tensioner, to make
alignment of the
holes (Items 1 & 2)
(0).
Install the bolts
into the holes.
Install the front end of the spring (bent at right angle) on
the projection of the tensioner.
Install the other end (straight end) on the water pump
body
[0]
.
Added Sept.
90
-7D-5~
Install
the
spring
end
at
this position
of
the
water
pump
body.
_1,1
\~;..;:}t/}
- '
0)
~
..
~_~=-_
Dowel
Pin
Tensioner
