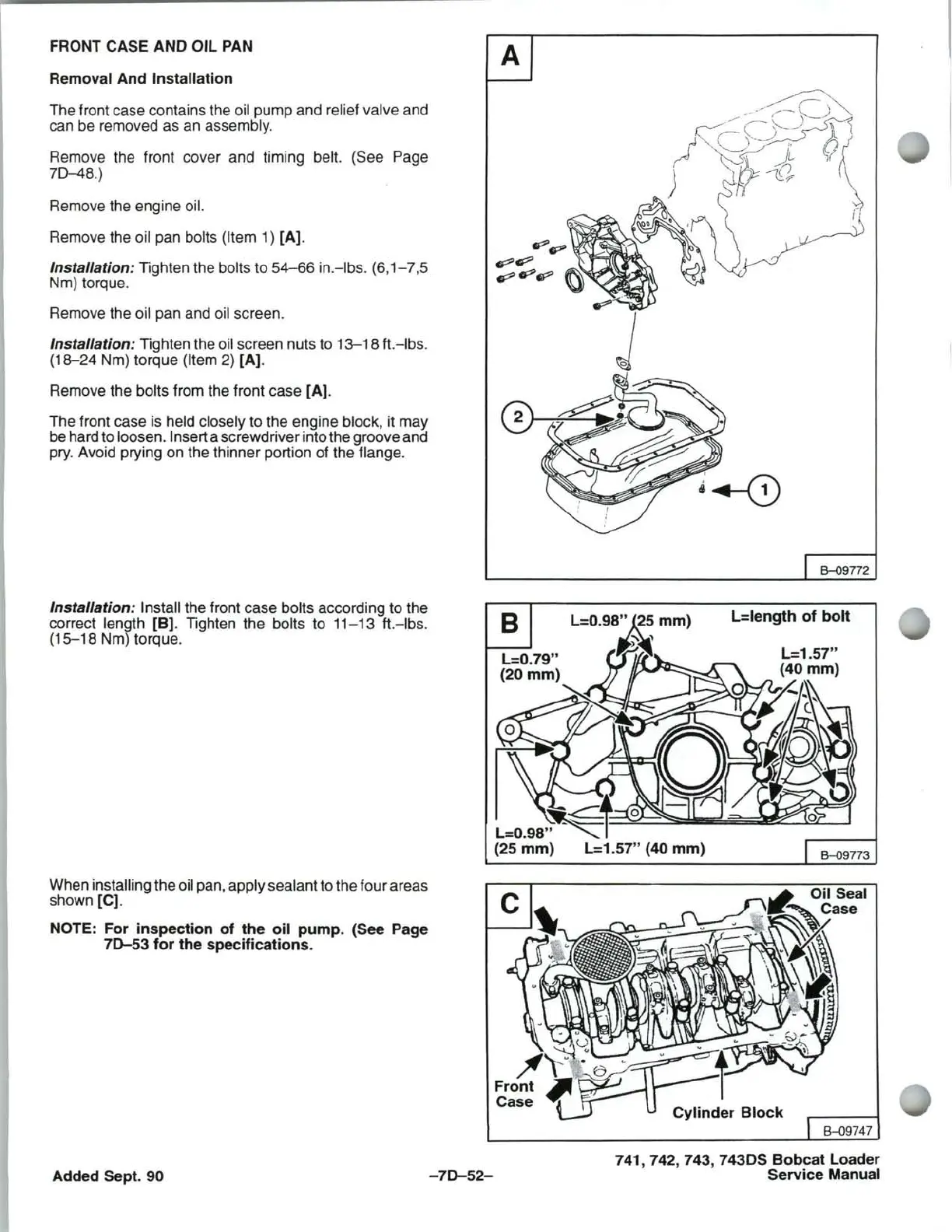

FRONT CASE AND OIL
PAN
Removal And Installation
The front case contains the oil pump and relief valve and
can be removed as an
assembly.
Remove the front cover and timing belt. (See Page
70-48
.)
Remove the engine oil.
Remove the oil pan bolts (Item 1) [A].
Installation: Tighten the bolts to
54-66
in
.
-Ibs
. (6,
1-7,5
Nm) torque.
Remove the oil pan and
oil
screen.
Installation: Tighten the oil screen nuts to
13-18
ft
.
-Ibs
.
(18-24 Nm) torque (Item
2)
[A].
Remove the bolts from the front case [A].
A
The front case
is
held closely to the engine block, it may
®~~:.......~
be hard to loosen. Insert a screwdriver into the groove and
pry.
Avoid prying on the
th
inner portion of the flange.
Installation: Install the front case bolts according to the
correct length [8]. Tighten the bolts to
11-13
ft
.
-Ibs
.
(15-18 Nm) torque.
When installing the oil pan, apply sealant to the four areas
shown [C].
NOTE: For inspection of the oil pump. (See Page
70-53
for the specifications.
Added Sept.
90
(25 mm)
-70-52-
B-09772
L=length of bolt
L=1.57" (40
mm)
B-09773
