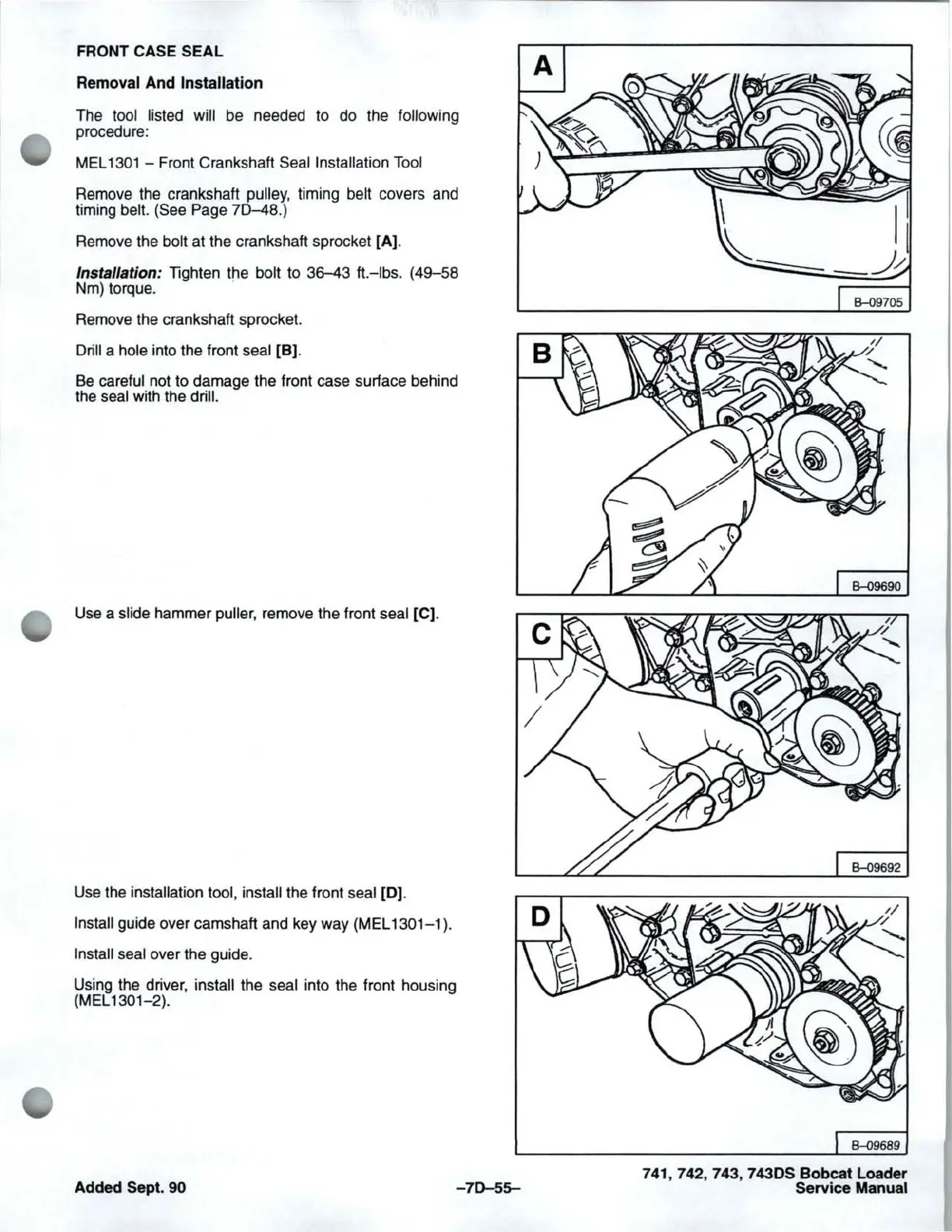

FRONT CASE SEAL
Removal And Installation
The tool listed will be needed to do the following
procedure:
MEL
1301 - Front Crankshaft Seal Installation Tool
Remove the crankshaft pulley, timing belt covers and
timing
belt. (See Page 70-48 .)
Remove the bolt at the crankshaft sprocket [A].
Installation: Tighten the bolt to 36-43 ft. -Ibs . (49-58
Nm) torque.
Remove the crankshaft sprocket.
Drill a hole into the front seal [B).
Be careful not to damage the front case surface behind
the
seal with the drill.
Use a slide hammer puller, remove the front seal [C].
Use the installation
tool, install the front seal [0] .
Install guide over camshaft and key way (MEL 1301 - 1).
Install seal over the guide.
Using the driver,
install the seal into the front housing
(MEL 1301-2).
Added Sept. 90 -70-55-
8-09689
741, 742 , 743, 7430S Bobcat Loader
Service Manual
