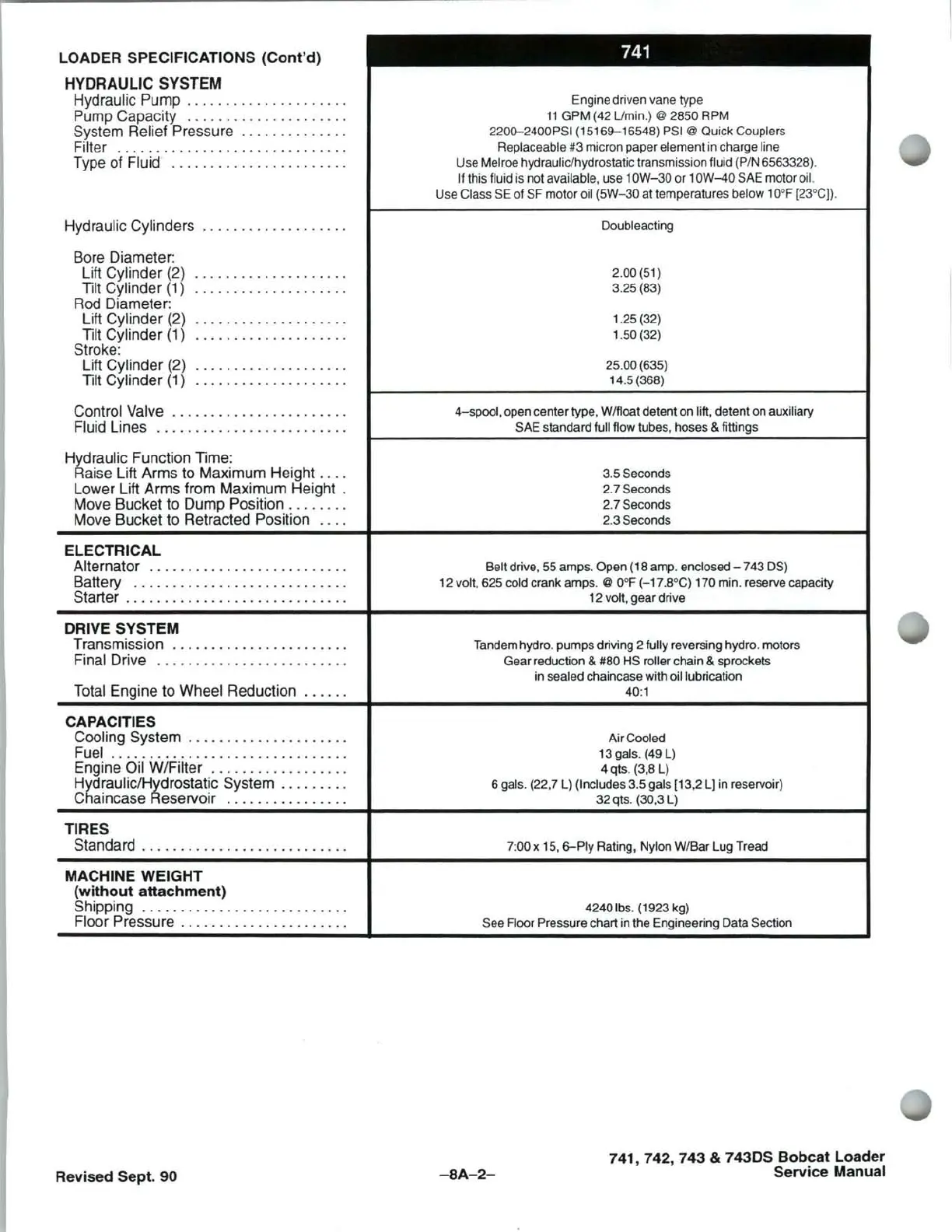

Bobcat 741 - Page 339

LOADER SPECIFICATIONS (Cont'd)
HYDRAULIC
SYSTEM
Hydraulic Pump .. . . .... . . ......... . .
Pump Capacity . .
.... . ........ . .... .
System
Relief Pressure . . . .......... .
Filter ..... . . . ... . ........... .. .... .
Type of
Fluid ... .. ................. .
Hydraulic Cylinders
Bore Diameter:
Lift
Cylinder (2)
Tilt Cylinder (1)
Rod Diameter:
Lift
Cylinder (2)
Tilt Cylinder (1)
Stroke:
Lift
Cylinder (2)
Tilt Cylinder (1)
Control Valve . ... . . ... .. . .... . .... . .
Fluid Lines ... ..... ...... . ...... .. . .
Hydraulic Function Time:
Raise Lift Arms to Maximum Height
....
Lower Lift Arms from Maximum Height .
Move Bucket to Dump Position
... . . .. .
Move Bucket to Retracted Position
ELECTRICAL
Alternator ....... . .. .... . .. ..... .. . .
Battery
... . .. . . .. .. .. ...... ... . .. . .
Starter
..... . .... . .. .. ... . .... . .. . . .
DRIVE SYSTEM
Transmission .......... . .. ... ... . .. .
Final Drive . .. ... ..... . ... .. ... .. . . .
Total Engine to Wheel Reduction .. ... .
CAPACITIES
Cooling System ... ..... ... ... .. .. . . .
Fuel . .. .. . . .......... .. . . . ... .... . .
Engine
Oil W/Filter ... . . . . . ..... . ... .
Hydraulic/Hydrostatic System
... .. .. . .
Chaincase Reservoir .
............ . . .
TIRES
Standard ...... .. ....... . ...... .... .
MACHINE WEIGHT
(without attachment)
Shipping .. . . .. .. ............. ... . . .
Floor Pressure . . . .. ... . ... . .. . .. ... .
Revised Sept. 90
Engine driven vane type
11 GPM (42 Umin .) @ 2850 RPM
2200-2400 PSI (15169-16548) PSI @ Quick Couplers
Replaceable #3 micron paper element in charge line
Use Melroe hydrauliclhydrostatic transmission fluid (PIN 6563328
).
If this fluid is not available, use 10W-30 or 1 OW-40 SAE motor oil.
Use Class SE of SF motor oil (5W-30 at temperatures below 10°F [23°C)).
Doubleacting
2.00(51)
3. 25(83)
1.25 (32)
1.50 (32)
25.00(635)
14. 5(368)
4-spool , open center type, Wlfloat detent on lift, detent on auxiliary
SAE standard full flow tubes, hoses & fittings
3.5
Seconds
2.7 Seconds
2.7 Seconds
2.3 Seconds
Belt drive, 55
amps . Open (18 amp. enclosed - 743 OS)
12 volt, 625 cold crank amps. @ O°F (-17 .8°C) 170 min. reserve capacity
12 volt, gear drive
Tandem hydro. pumps driving 2 fully reversing hydro. motors
Gear reduction
& #80 HS roller chain & sprockets
in sealed chaincase with oil lubrication
40:1
Air Cooled
13 gals.
(49L)
4 qts. (3,8 L)
6 gals. (22,7 L) (Includes 3.5 gals [13,2 L) in reservoir)
32 qts.
(30,3 L)
7:00 x 15, 6-Ply Rating, Nylon W/Bar Lug Tread
42401bs. (1923 kg)
See Floor Pressure chart in the Engineering Data Section
