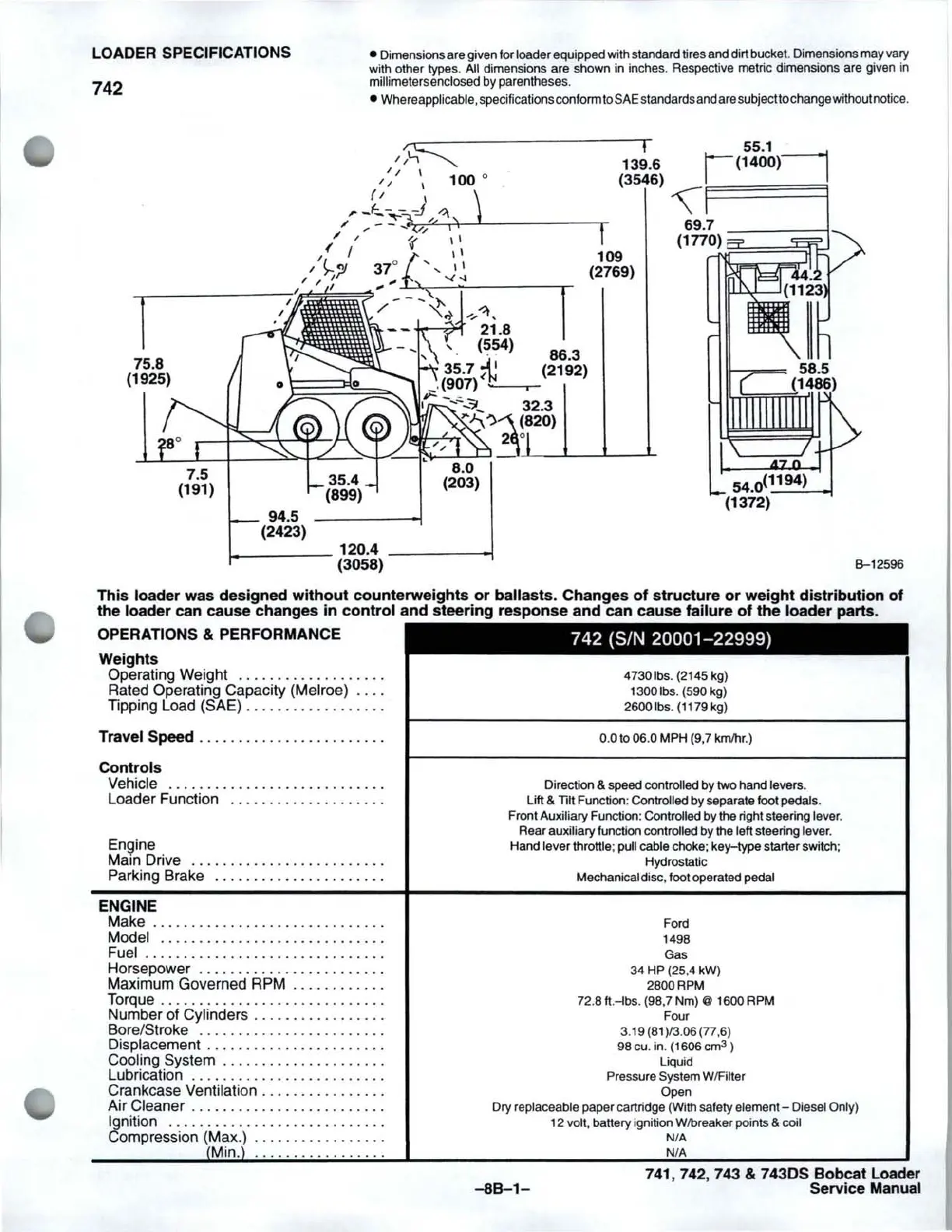

LOADER SPECIFICATIONS
742
• Dimensions are given for loader equipped with standard tires and dirt bucket. Dimensions
may
vary
with other types.
All dimensions are shown in inches. Respective metric dimensions are given in
millimeters enclosed by parentheses.
• Where applicable, specifications conform to SAE standards and are subjecttochange without notice.
75.8
(1925)
'"----r-
86.3
(2192)
--.::.-~_
32.3
"'):\
(820)
,
55.1
139.6 r
(1400)--1
(3546)
~~====~
I
109
(2769)
69.7
(1
n~O),;;::E==:=::::~
~L-~~--~~~-~~--~~~
~
o
~
54.~1194)
120.4
1------
(3058)
(1372)
B-12596
This loader was designed
without
counterweights
or
ballasts. Changes
of
structure
or
weight
distribution
of
the loader can cause changes
in
control
and
steering
response
and
can cause failure
of
the
loader parts.
OPERATIONS & PERFORMANCE
Weights
Operating Weight
..............
. .
..
.
Rated Operating Capacity
(Melroe)
...
.
Tipping Load
(SAE)
.................
.
Travel Speed .
....
..
.
...........
....
.
Controls
Vehicle
....
.
......
.
..........
..
...
.
Loader Function
...
.
..
.....
.
..
.....
.
Engine
Main Drive
.........
......
.
..
.
..
.
..
.
Parking Brake
.............
.
.....
..
.
ENGINE
Make
..
..
.
...
. . . . . .
....
..
.
...
.....
.
Model . .
..
. . . . .
...........
.
.......
.
Fuel .
.....
.
...
..
..........
.
....
. . . .
Horsepower .
.....
. . .
.. ..
. .
........
.
Maximum Governed RPM
..........
. .
Torque . .
..
.......
......
.....
.
...
..
.
Number of
Cylinders
..
.
...
.
.........
.
Bore/Stroke . . . . . .
.. ..
.
...
..
.
...
.
..
.
Displacement
...
.
.. ..
......
...
.. ..
. .
Cooling System
...
.
...
.
...
.......
. . .
Lubrication
..
. .
.......
. .
...
..
.
...
..
.
Crankcase
Ventilation
....
..
.......
. . .
Air
Cleaner
.....
.
...
.
..............
.
Ignition
......
.
..
. .
......
.
..
....
..
. .
Compression (Max.) .
............
..
. .
(Min.)
....
..
. .
..
......
.
742
(SIN
20001-22999)
47301bs. (2145 kg)
1300 Ibs. (590 kg)
26001bs. (1179 kg)
0.0 to 06.0 MPH (9,7 kmlhr.)
Direction
& speed controlled by two hand levers.
Lift & Tilt Function: Controlled by separate foot pedals.
Front Auxiliary Function: Controlled by the right steering lever.
Rear auxiliary function controlled by the left steering lever.
Hand lever throttle; pull cable choke;
key-type
starter switch;
Hydrostatic
Mechanical disc, foot operated pedal
Ford
1498
Gas
34
HP (25,4 kW)
2800 RPM
72
.8 ft.
-lbs
. (98,7 Nm) @ 1600 RPM
Four
3.19
(81
)/3.06 (77,6)
98 cu. in.
(1606 cm
3
)
Liquid
Pressure
System W/Filter
Open
Dry replaceable paper cartridge (With safety element - Diesel Only)
12 volt, battery ignition Wlbreaker points & coil
-88-1-
N/A
N/A
741, 742, 743 & 743DS
Bobcat
Loader
Service Manual
