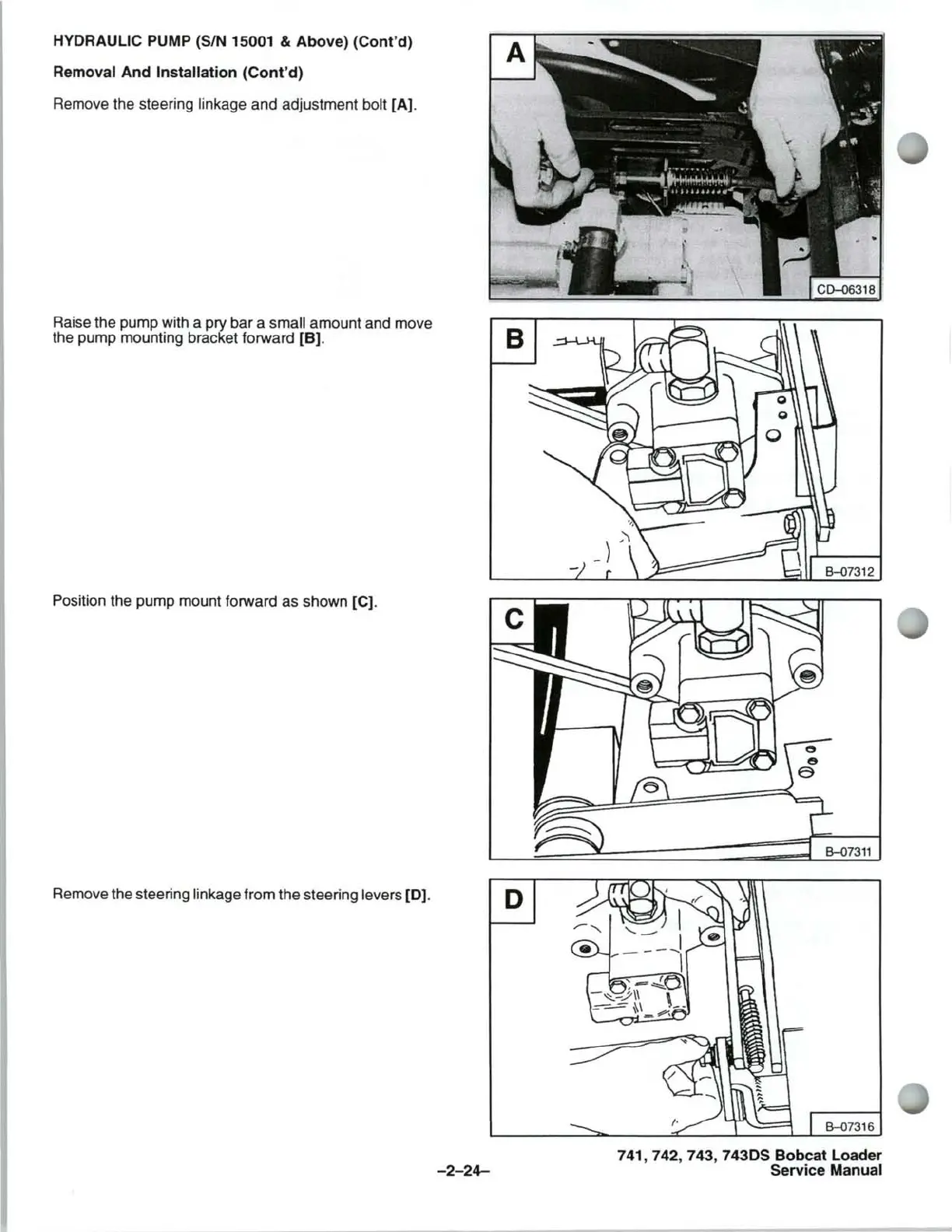

HYDRAULIC PUMP (SIN 15001 & Above) (Cont'd)
Removal And
Insta"ation (Cont'd)
Remove the steering linkage and adjustment bolt [A).
Raise the pump with a pry bar a small amount and move
the pump mounting bracket forward
[B).
Position the pump mount forward as shown [C).
Remove the steering linkage from the steering levers
[0]
. D
-2-24-
B-<l7316
741, 742, 743, 743DS Bobcat Loader
Service Manual
