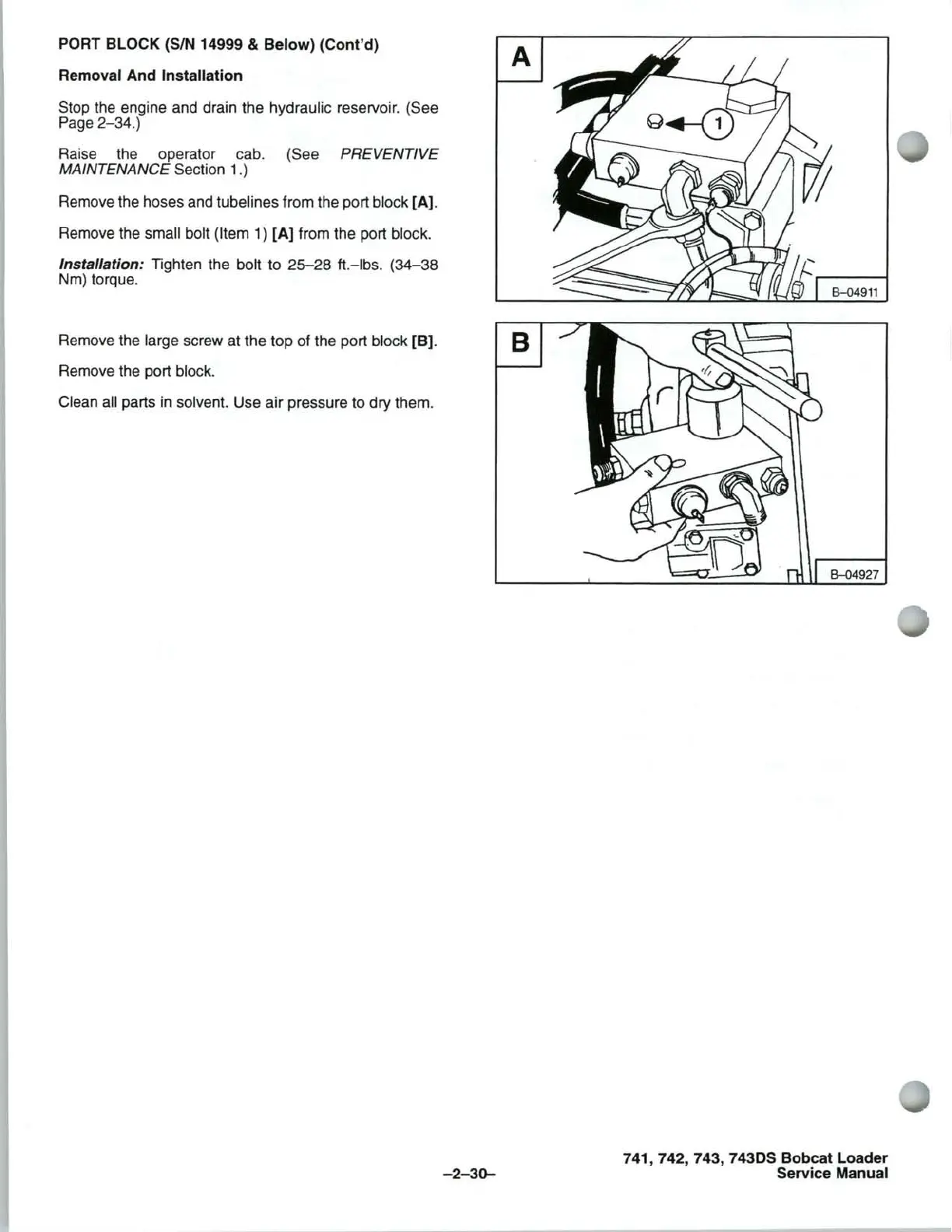

PORT BLOCK (SIN 14999 & Below) (Cont'd)
Removal And Installation
Stop the engine and drain the hydraulic reservoir. (See
Page
2-34
.)
Raise the operator cab.
(See PREVENTIVE
MAINTENANCE
Section 1.)
Remove the hoses and tubelines from the port
block [A].
Remove the small bolt (Item 1) [A] from the port block.
Installation: Tighten the bolt to
25-28
ft.-Ibs. (34-38
Nm)
torque.
A
Remove the large screw at the top of the port block [B]. B
Remove the port block.
Clean all
parts
in
solvent. Use air pressure to dry them.
-2-30-
B-<l4927
741, 742, 743,
7430S
Bobcat Loader
Service
Manual
