Bobcat 741 - Page 75

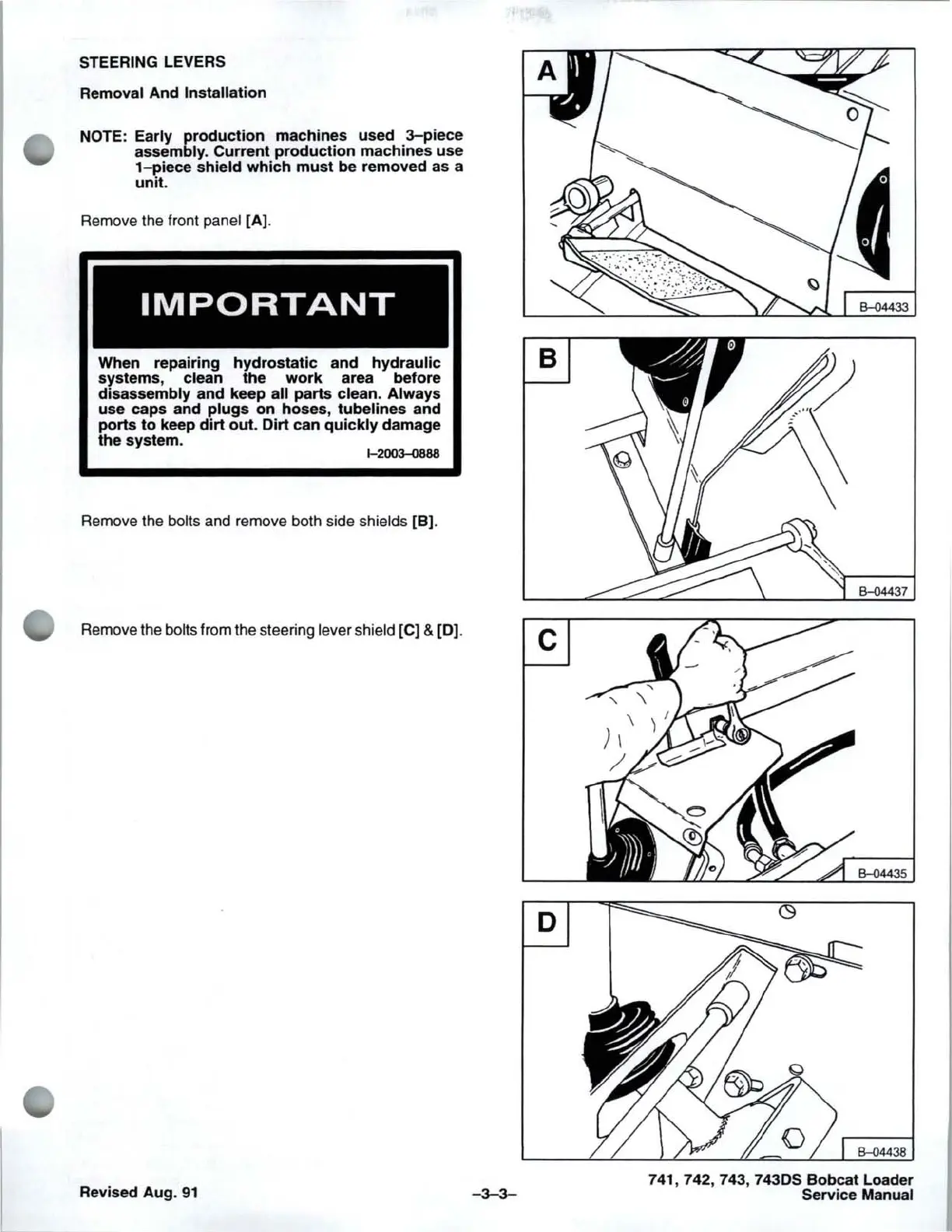

STEERING LEVERS
Removal And Installation
NOTE: Early production machines used 3-piece
assembly. Current production machines use
1-piece shield which must be removed as a
unit.
Remove the front panel [A).
IMPORTANT
When repairing hydrostatic and hydraulic
systems, clean the work area before
disassembly and keep all parts clean. Always
use caps and plugs on hoses, tubelines and
ports to keep dirt out. Dirt can quickly damage
the system.
1-2003-0888
Remove the bolts and remove both side shields [B].
Remove the bolts from the steering lever shield [C) & [0].
