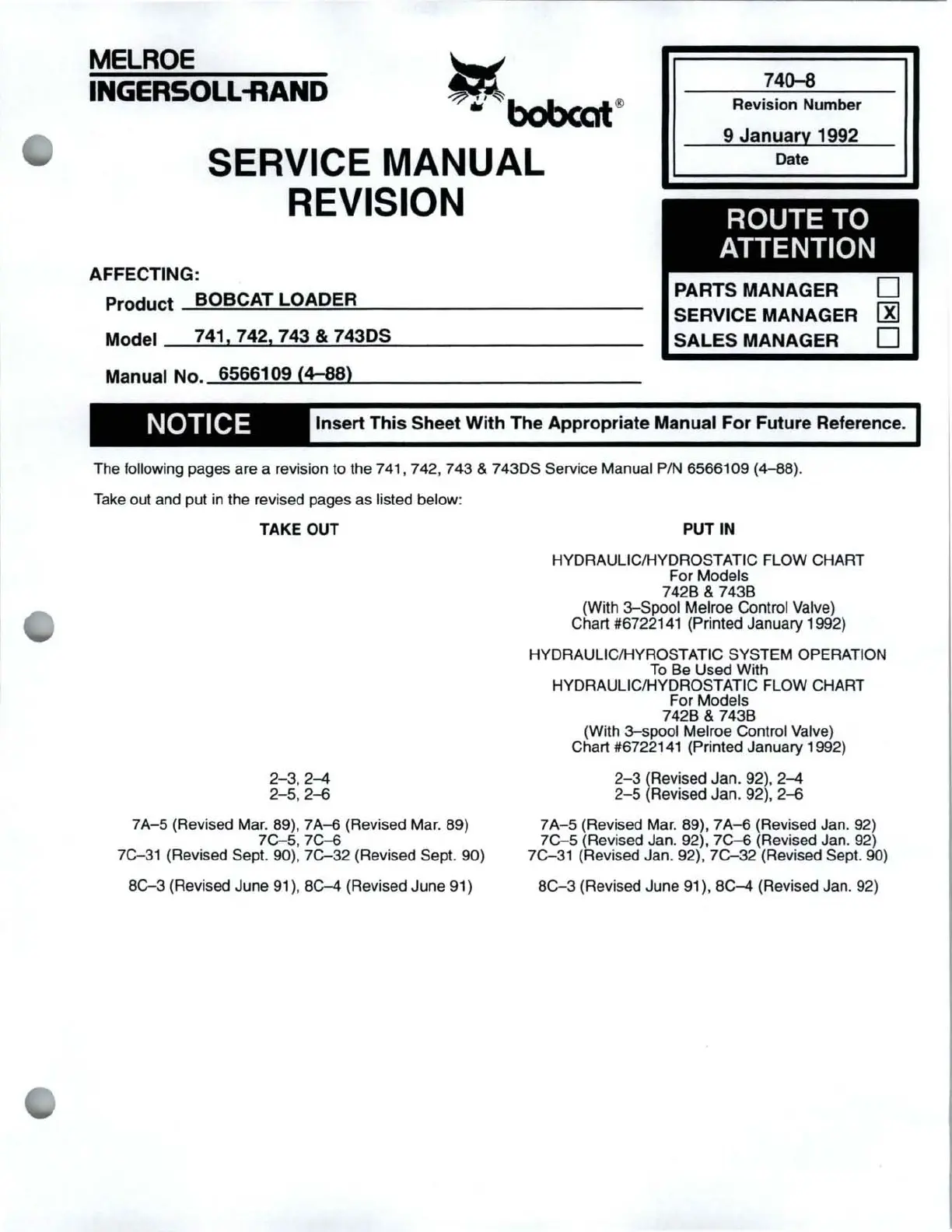

Bobcat 741 - Page 9

MEL ROE
INGERSOLL -RAND
740-8
Revision Number
9 January 1992
SERVICE MANUAL
REVISION
Date
ROUTE TO
ATTENTION
AFFECTING:
Product BOBCAT LOADER
Model __ ~7~4~1~!7~4=2~!~74~3~&~7~4=3=D=S __________________ __
PARTS MANAGER 0
SERVICE MANAGER 00
SALES MANAGER D
Manual No. 6566109 (4-88)
NOTICE
Insert This Sheet With The Appropriate Manual For Future Reference.
The following pages are a revision to the 741,742,743 & 743DS Service Manual PIN 6566109 (4-88).
Take out and put in the revised pages as listed below:
TAKE OUT
2-3,2-4
2-5 , 2-6
7A-5 (Revised Mar. 89), 7A-6 (Revised Mar. 89)
7C-5,7C-6
7C-31 (Revised Sept. 90), 7C-32 (Revised Sept. 90)
8C-3 (Revised June 91), 8C-4 (Revised June 91)
PUT
IN
HYDRAULIC/HYDROSTATIC FLOW
CHART
For
Models
742B & 743B
(With
3-Spool Melroe Control Valve)
Chart #6722141
(Printed January 1992)
HYDRAULlCIHYROSTATIC SYSTEM OPERATION
To Be Used With
HYDRAULIC/HYDROSTATIC FLOW CHART
For Models
742B
& 743B
(With 3-spool Melroe Control
Valve)
Chart #6722141 (Printed January 1992)
2-3 (Revised Jan. 92), 2-4
2-5
(Revised Jan. 92), 2-6
7A-5 (Revised Mar. 89), 7A-6 (Revised Jan. 92)
7C-5 (Revised Jan. 92), 7C-6 (Revised Jan. 92)
7C-31 (Revised Jan. 92),
7C-32 (Revised Sept. 90)
8C-3 (Revised June 91), 8C-4 (Revised Jan. 92)
