Bobcat 743 - Drive System

o
o
17
L
Ref.
Description
Ref.
1.
Tread, safety
9.
2.
Pedal
10.
0
3. Lever
11.
4.
Spring
12.
5. Plate
13.
6.
Plate
14.
7. a-Ring
15.
8.
Pin
16.

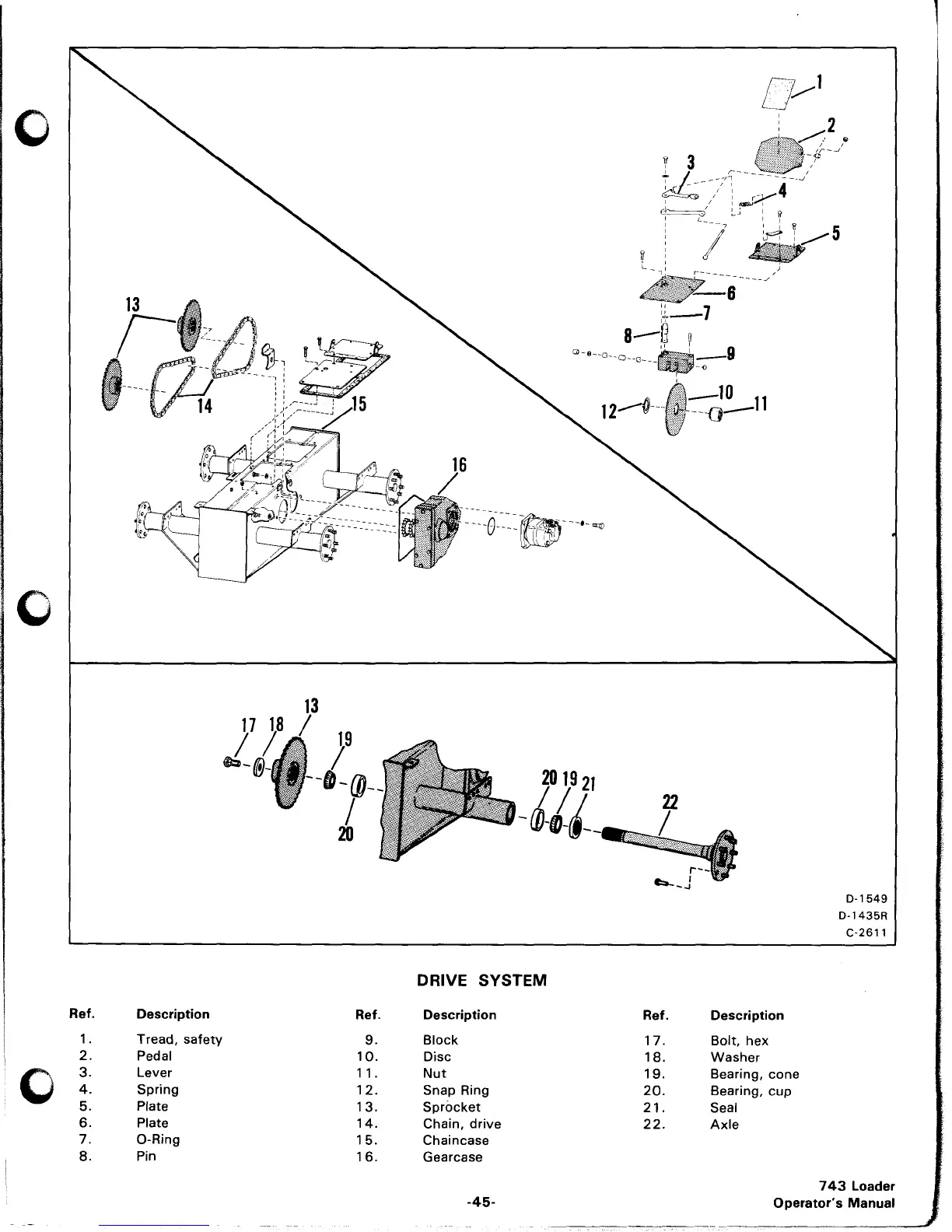

DRIVE SYSTEM
Description
Ref.
Block
17.
Disc
18.
Nut
19.
Snap Ring
20.
Sprocket
21.
Chain, drive
22.
Chaincase
Gearcase
-45-
Description
Bolt, hex
Washer
Bearing, cone
Bearing, cup
Seal
Axle
D-1549
D-1435R
C-2611
743 Loader
Operator's
Manual
