Bobcat 743 - Hydraulic System

27

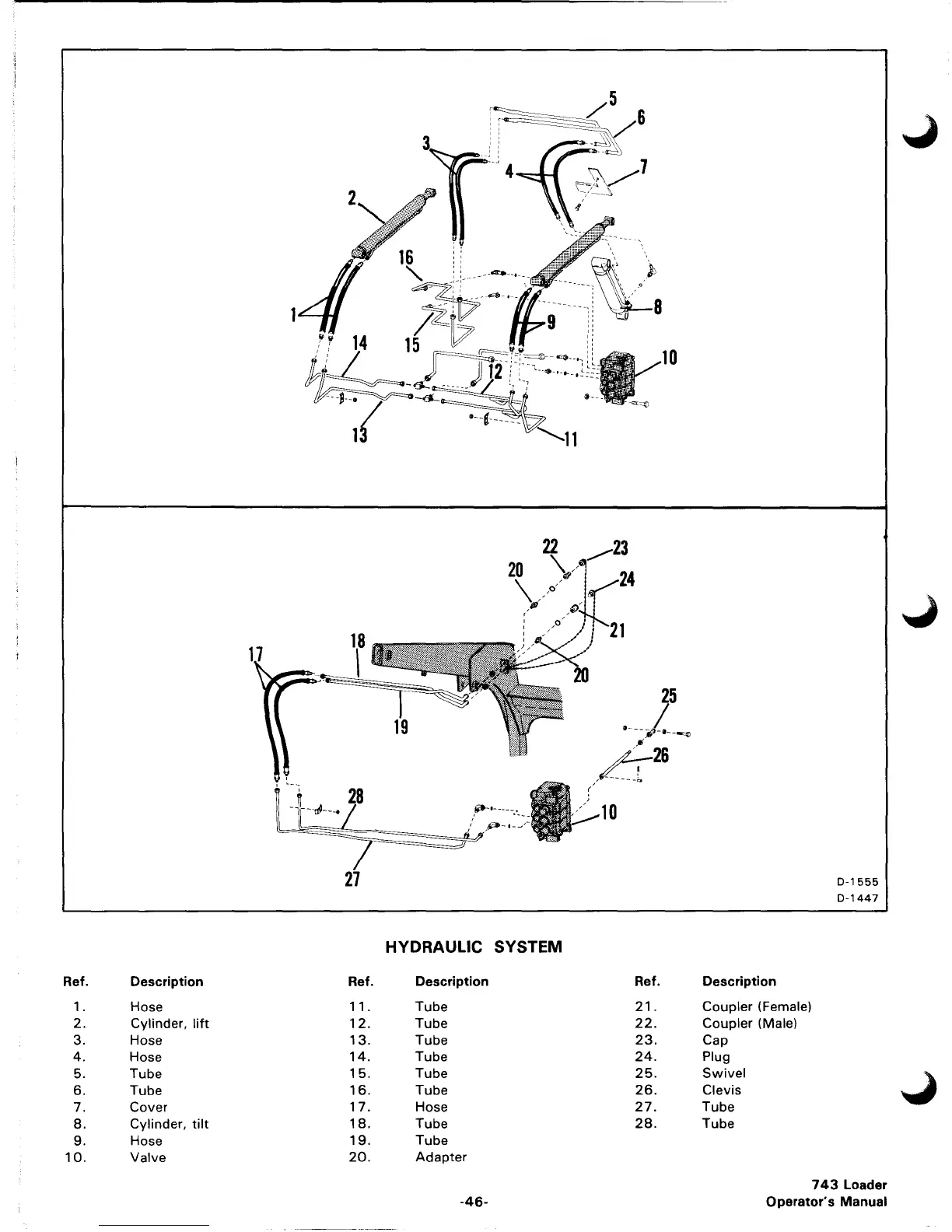

HYDRAULIC
Ref. Description Ref. Description
1 . Hose 11 . Tube
2. Cylinder, lift 12. Tube
3. Hose 13. Tube
4. Hose 14.
Tube
5. Tube 15.
Tube
6. Tube
16. Tube
7. Cover
17. Hose
8.
Cylinder, tilt 18. Tube
9. Hose
19. Tube
10. Valve
20.
Adapter
-46-
--------~-
SYSTEM
Ref.
21.
22.
23.
24.
25.
26.
27.
28.
Description
Coupler (Female)
Coupler (Male)
Cap
Plug
Swivel
Clevis
Tube
Tube
0-1555
0-1447
743 Loader
Operator's Manual
