118 S130 Operation & Maintenance Manual
LIFT ARM SUPPORT DEVICE (CONT’D)
Installing (Cont’d)

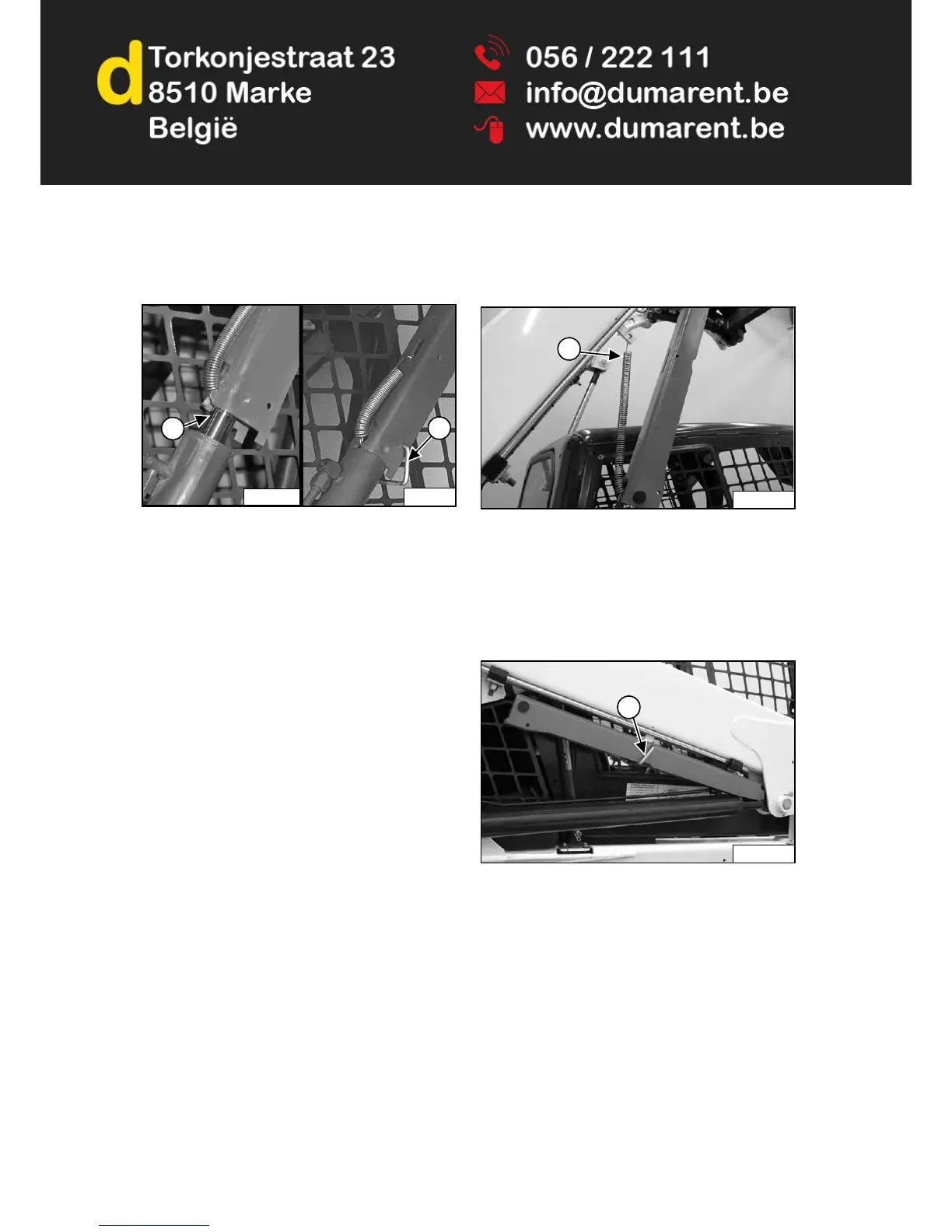

Figure 154
Raise the lift arms until the lift arm support device drops
onto the lift cylinder rod (Item 1) [Figure 154]
Lower the lift arms slowly until the support device is held
between the lift arm and the lift cylinder. Stop the engine.
Raise the seat bar, disconnect the seat belt and make
sure the lift and tilt functions are deactivated.
Install pin (Item 2) [Figure 154] into the rear of the lift
arm support device below the cylinder rod.
Removing
Remove the pin from the lift arm support device.
Figure 155
Connect the spring (Item 1) [Figure 155] from the lift arm
support device to the bracket below the lift arms.
Sit in the operator’s seat fasten the seat belt and lower
the seat bar.
Start the engine.
Figure 156
Raise the lift arms a small amount. The spring will lift the
support device off the lift cylinder rod. Lower the lift arms.
Stop the engine.
Raise the seat bar, disconnect the seat belt and make
sure the lift and tilt functions are deactivated.
Disconnect the spring from the bracket.
Raise the support device into storage position and insert
pin (Item 1) [Figure 156] through lift arm support device
and bracket. Connect the spring to the pin.
Remove the jackstands.
