121 S130 Operation & Maintenance Manual
OPERATOR CAB (CONT’D)
Raising (Cont’d)
WARNING
UNEXPECTED LOADER, LIFT ARM OR ATTACHMENT
MOVEMENT CAUSED BY CAB CONTACT WITH
CONTROLS CAN CAUSE SERIOUS
INJURY OR DEATH
• STOP ENGINE before raising or lowering cab.
W-2758-0908
NOTE: On some machines, the operator cab frame
could contact the steering levers while raising
or lowering the operator cab. The engine
MUST be stopped before raising or lowering
the operator cab.

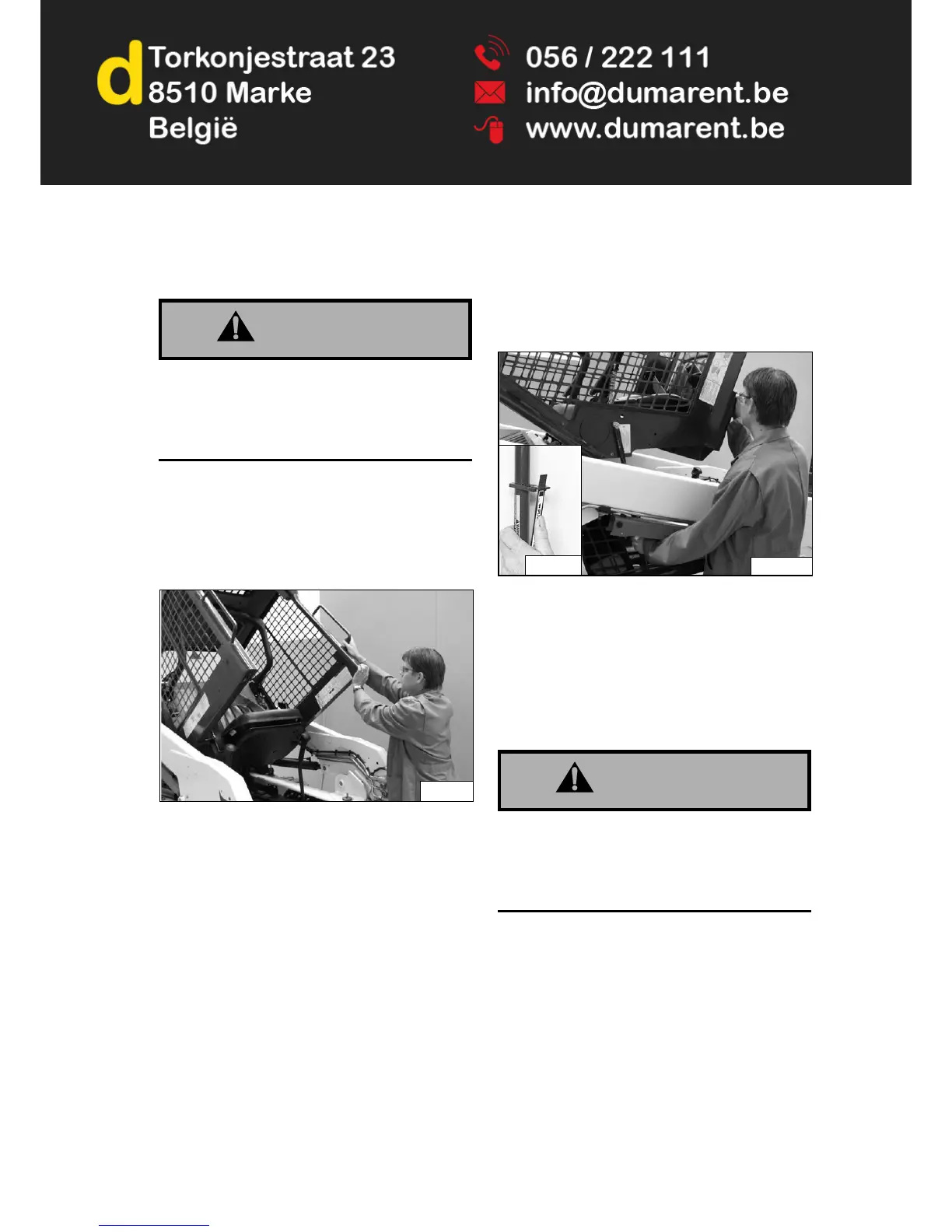

Figure 162
Lift on the grab handles and bottom of the operator cab
[Figure 162] slowly until the cab is all the way up and the
latching mechanism engages.
Lowering
Always stop the engine before raising or lowering the
cab.
NOTE: Always use the grab handles to lower the cab.
Figure 163
Pull down on the bottom of the operator cab until it stops
at the latching mechanism [Figure 163].
NOTE: The weight of the cab increases when
equipped with options and accessories such
as cab door, heater, air conditioning, etc. In
these cases, the cab can need to be raised
slightly from the latch to be able to release the
latch.
WARNING
UNEXPECTED LOADER, LIFT ARM OR ATTACHMENT
MOVEMENT CAUSED BY CAB CONTACT WITH
CONTROLS CAN CAUSE SERIOUS
INJURY OR DEATH
• STOP ENGINE before raising or lowering cab.
W-2758-0908
NOTE: On some machines, the operator cab frame
could contact the steering levers while raising
or lowering the operator cab. The engine
MUST be stopped before raising or lowering
the operator cab.
Support the cab and release the latching mechanism
(Inset) [Figure 163]. Remove your hand from the latch
mechanism when the cab is past the latch stop. Use both
hands to lower the cab all the way down.
P-45261
P-45262
N-20120
