PINCH POINT CAN CAUSE INJURY
Remove your hand from the latching mechanism
when the cab is past the latch stop.
W-2469-0803

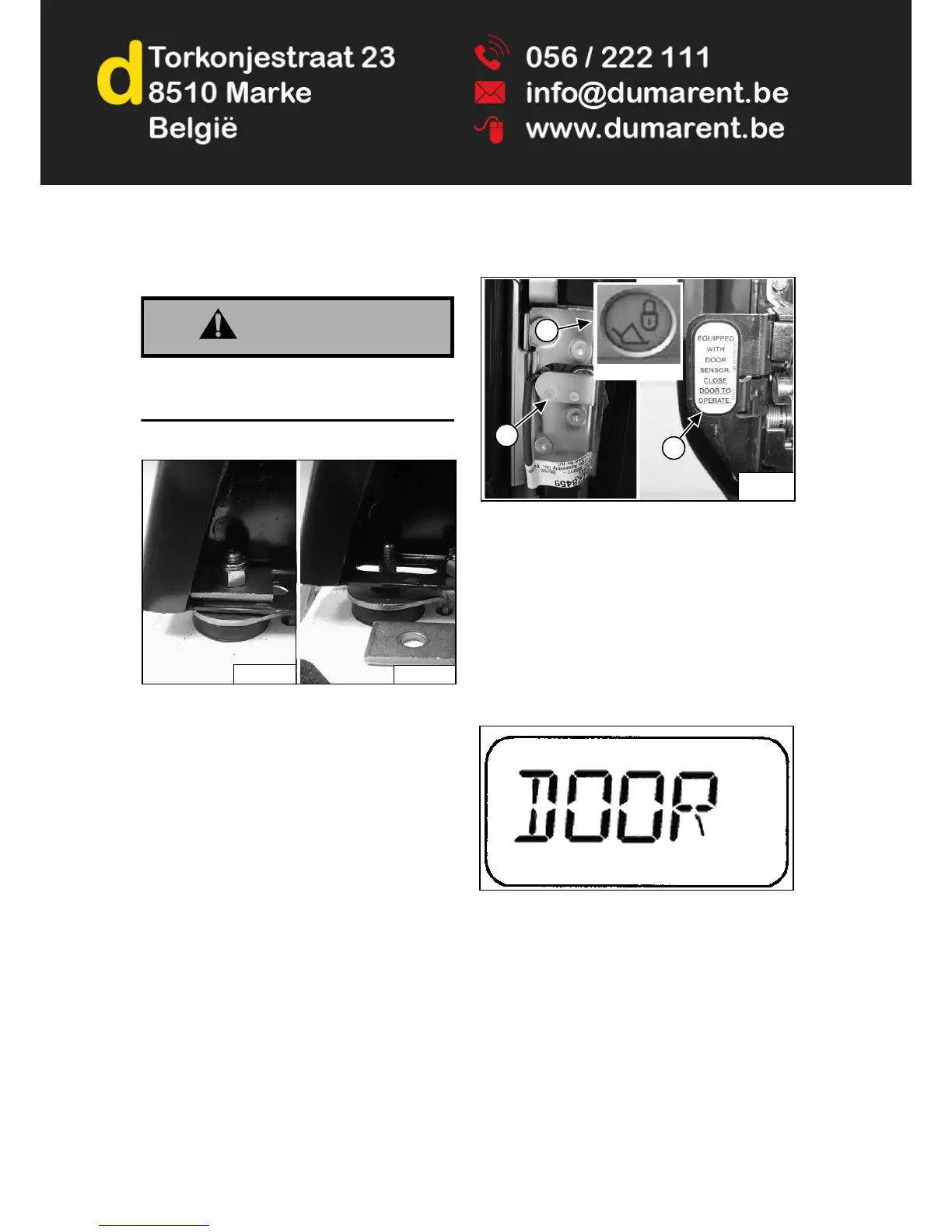

Figure 164
Install the plates and nuts (both sides) [Figure 164].
Tighten the nuts to 54 - 61 N•m (40 - 45 ft-lb) torque.
Cab Door Sensor
Figure 165
The cab door has a sensor (Item 1) [Figure 165]
installed which deactivates the lift and tilt valves when the
door is open.
A decal is located on the latch mechanism (Item 2)
[Figure 165].
The LIFT & TILT VALVE light (Item 3) [Figure 165] will be
OFF when the door is closed, the key switch is turned to
RUN or the RUN / ENTER button is pressed, the seat bar
is lowered and the PRESS TO OPERATE LOADER
button is pressed.
Figure 166
The LIFT & TILT VALVE light (Item 3) [Figure 165] will be
ON when the door is open, the key switch is turned to
RUN or the RUN / ENTER button is pressed, the seat bar
is lowered and the PRESS TO OPERATE LOADER
button is pressed.
[DOOR] will appear in the data display [Figure 166].
