REAR DOOR (TAILGATE)
Opening And Closing

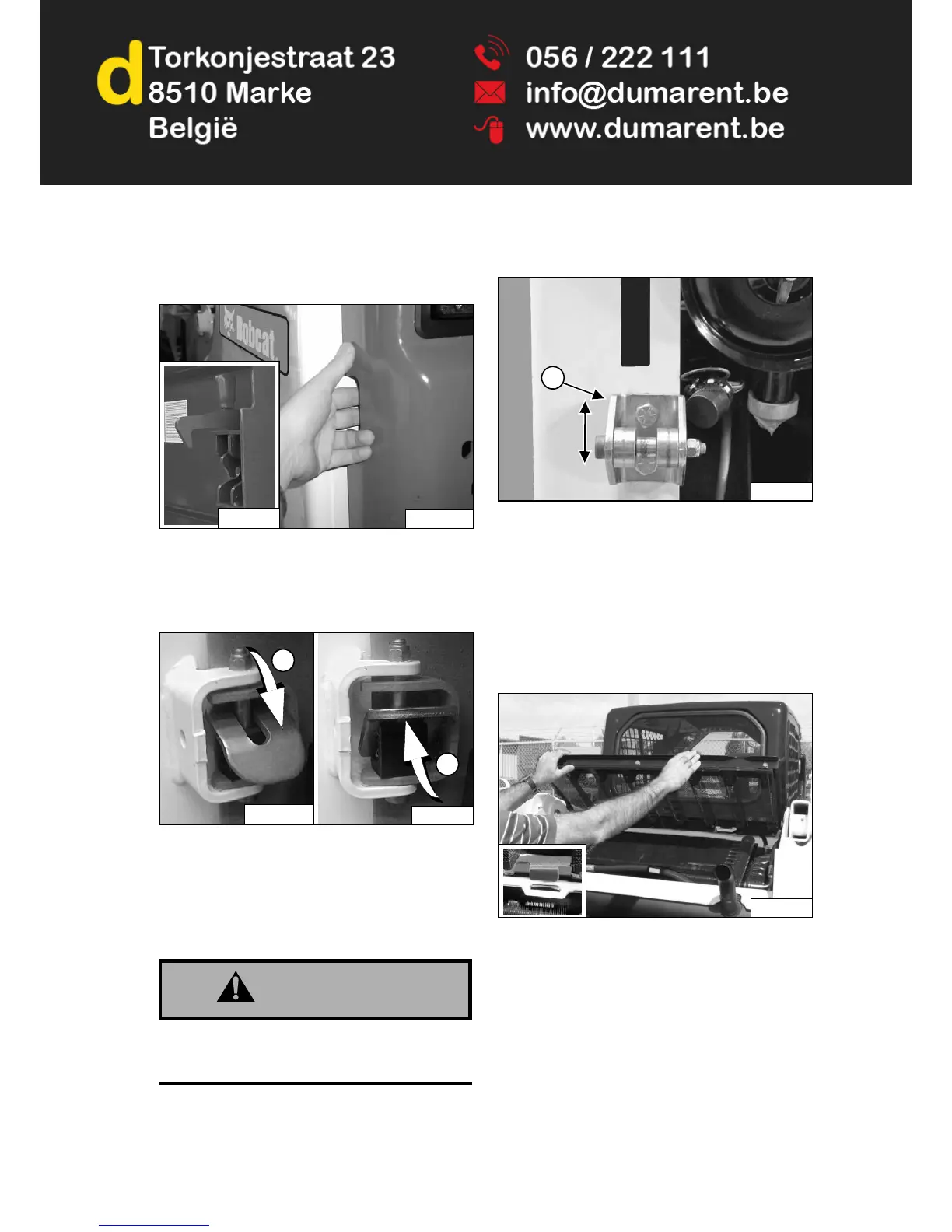

Figure 167
Reach into the slot in the rear door and pull the latch
handle [Figure 167].
Pull the rear door open.
Figure 168
Move the door stop into the engaged position (Item 1)
[Figure 168] to hold the door open.
Move the door stop up (Item 2) [Figure 168] to
disengage the door stop and allow the door to close.
Close the rear door.
Keep the rear door closed when operating the
machine. Failure to do so could seriously injure a
bystander.
W-2020-1285
Adjusting
Figure 169
The door latch (Item 1) [Figure 169] can be adjusted up
or down for alignment with the door latch mechanism.
Close the rear door before operating the loader.
REAR GRILL
Removing
Open the rear door.
Figure 170
Lift and pull the rear grill to remove it from the loader
[Figure 170].
Installing
Align the tabs of the rear grill into the slots in the loader
frame (Inset) [Figure 170].
Lower the rear grill and close the rear door.
