124 S130 Operation & Maintenance Manual
HEATING SYSTEM
This machine can be equipped with a Heating System.
Cleaning And Maintenance
The heating system requires regular inspection and
maintenance. (See SERVICE SCHEDULE on Page 111.)
Filters

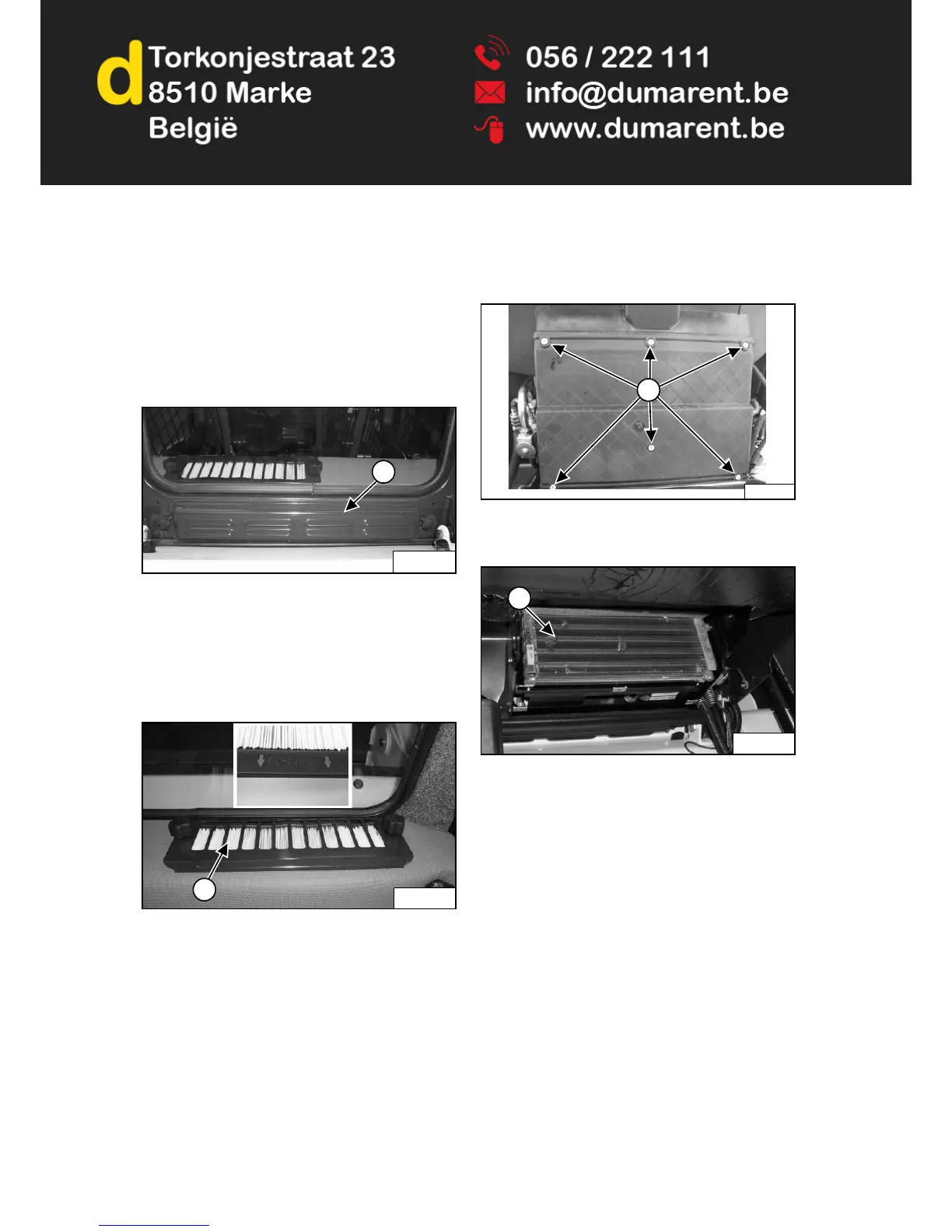

Figure 171
The Fresh Air Filter (Item 1) [Figure 171] is located
below the rear window outside the cab. Remove the
clamping knobs, filter cover and filter.
Shake the filter or use low pressure air to remove dirt.
This can be done several times before replacement is
required. Install the filter, filter cover and clamping knobs.
Figure 172
The Recirculation Filter (Item 1) [Figure 172] is located
in front of the rear window inside the cab. Remove the
clamping knobs, filter cover, and filter.
Shake the filter or use a vacuum to clean. This can be
done several times before replacement is required. Install
the filter with the arrows pointing forward (Inset) [Figure
172], install the filter cover and clamping knobs.
Heater Coil
Raise the operator cab. (See Raising on Page 120.)
Figure 173
Remove the cover screws (Item 1) [Figure 173] and
remove the cover.
Figure 174
Use low pressure air or water to remove debris from the
heater coil (Item 1) [Figure 174].
Install the cover and lower the operator cab. (See
Lowering on Page 121.)
Troubleshooting
If the fan does not run, check the fuse. (See
ELECTRICAL SYSTEM on Page 133.)
