138 S130 Operation & Maintenance Manual
HYDRAULIC / HYDROSTATIC SYSTEM (CONT’D)
Removing And Replacing Hydraulic Fluid
For the correct service interval (See SERVICE
SCHEDULE on Page 111.)
Replace the fluid if it becomes contaminated or after
major repair.
Always replace the hydraulic / hydrostatic filter, the case
drain filters and the hydraulic charge filter whenever the
hydraulic fluid is replaced. (See Removing And Replacing
Hydraulic / Hydrostatic Filter on Page 139.)

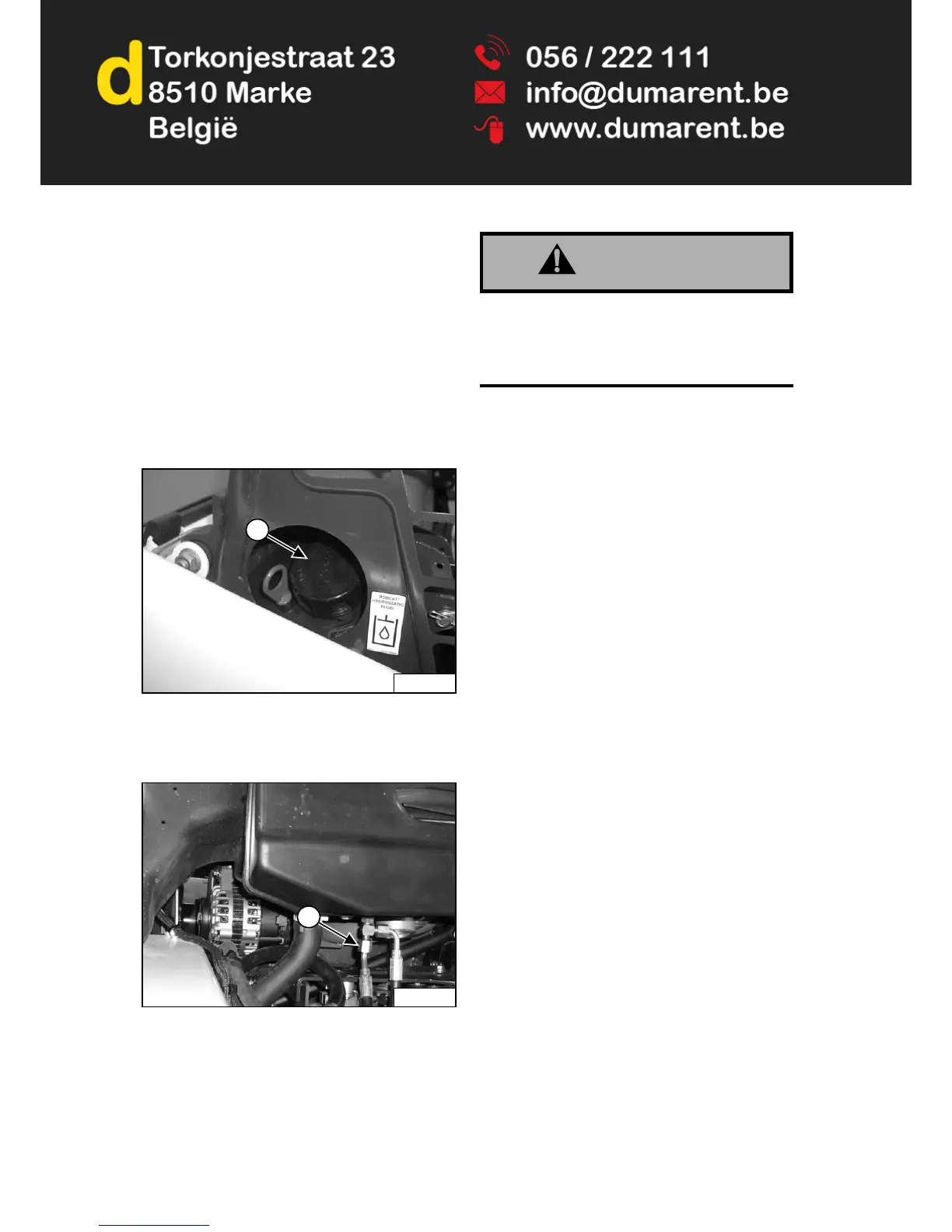

Figure 201
Remove the fill cap (Item 1) [Figure 201].
Raise the operator cab. (See Raising on Page 120.)
Figure 202
Disconnect the hose (Item 1) [Figure 202] from the
hydraulic reservoir and drain the fluid into a container.
Reconnect the hose when reservoir is empty.
AVOID INJURY OR DEATH
Always clean up spilled fuel or oil. Keep heat, flames,
sparks or lighted tobacco away from fuel and oil.
Failure to use care around combustibles can cause
explosion or fire.
W-2103-0508
Recycle or dispose of used fluid in an environmentally
safe manner.
Add the correct fluid to the reservoir until the fluid level is
at the top mark on the dipstick. (See Checking And
Adding Fluid on Page 137.)
Install the fill cap.
