144 S130 Operation & Maintenance Manual
FINAL DRIVE TRANSMISSION (CHAINCASE)
Checking And Adding Oil
The chaincase contains the final drive sprockets and
chains and uses the same type of oil as the hydraulic /
hydrostatic system. (See Hydraulic System on Page
171.)
Stop the loader on a level surface and stop the engine.

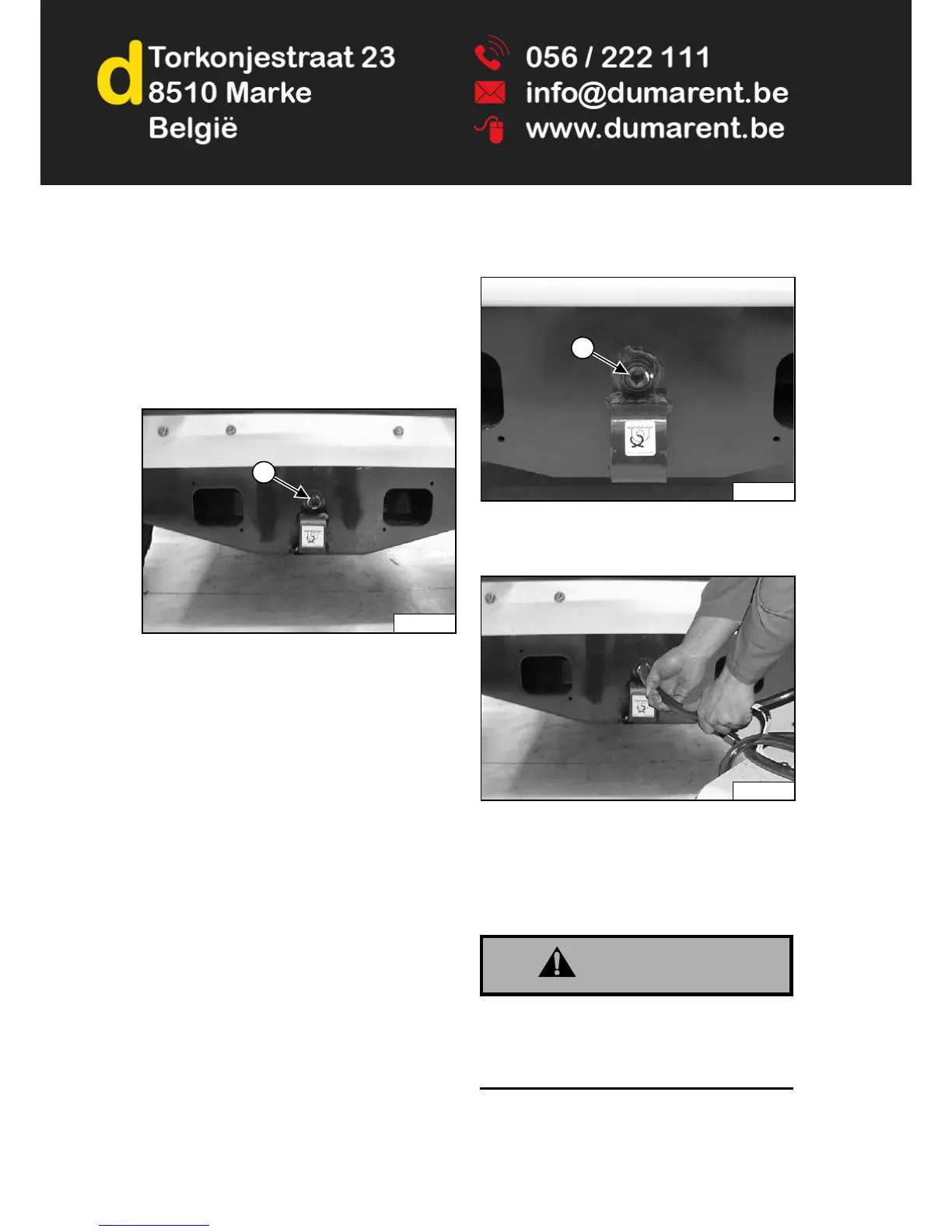

Figure 213
Remove the drain plug (Item 1) [Figure 213] from the
front of the chaincase housing.
If oil can be reached with the tip of your finger through the
hole, the oil level is correct.
If the level is low, add oil through the check plug hole until
the oil flows from the hole.
Install and tighten the plug.
Removing And Replacing Oil
Figure 214
Remove the check plug (Item 1) [Figure 214] from the
front of the chaincase housing.
Figure 215
Remove the oil from the chaincase [Figure 215].
Recycle or dispose of the used oil in an environmentally
safe manner.
Add oil through the check plug hole until the oil flows from
the hole.
AVOID INJURY OR DEATH
Always clean up spilled fuel or oil. Keep heat, flames,
sparks or lighted tobacco away from fuel and oil.
Failure to use care around combustibles can cause
explosion or fire.
W-2103-0508
