145 S130 Operation & Maintenance Manual
ALTERNATOR BELT
Belt Adjustment
Stop the engine.
Raise the operator cab. (See Raising on Page 120.)

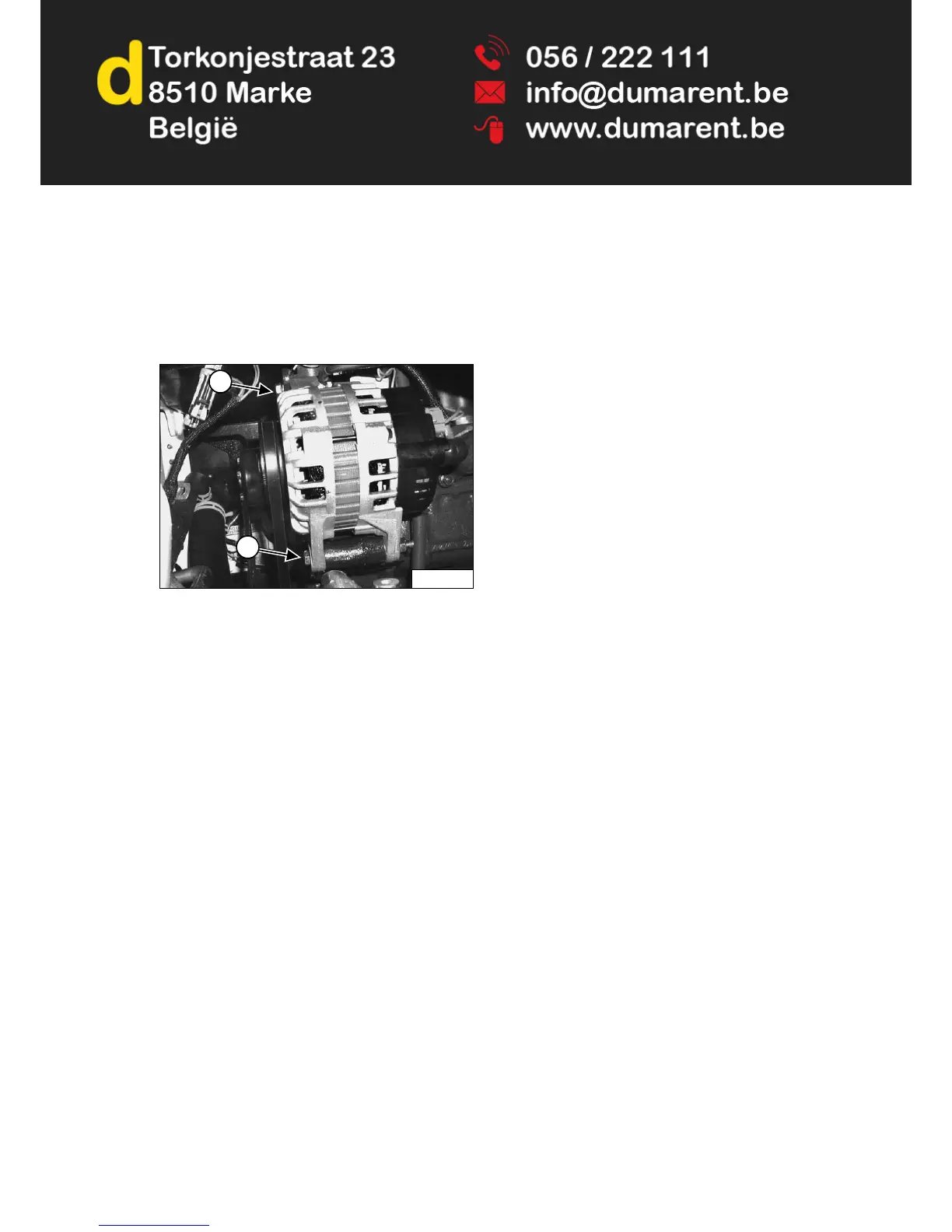

Figure 216
Loosen the alternator mounting bolt (Item 1) [Figure
216].
Loosen the adjustment bolt (Item 2) [Figure 216].
Move the alternator until the belt has 8 mm (5/16 in)
movement at the middle of the belt span with 66 N (15 lb)
of force.
Tighten the adjustment bolt and mounting bolt.
Lower the operator cab. (See Lowering on Page 121.)
Belt Replacement
Loosen the alternator mounting and adjustment bolts
(Item 1 and 2) [Figure 216] and loosen the belt all the
way.
Remove the belt and install new belt.
Adjust the belt. (See Belt Adjustment on Page 145.)
