148 S130 Operation & Maintenance Manual
LUBRICATING THE LOADER (CONT’D)
Lubrication Locations (Cont’d)

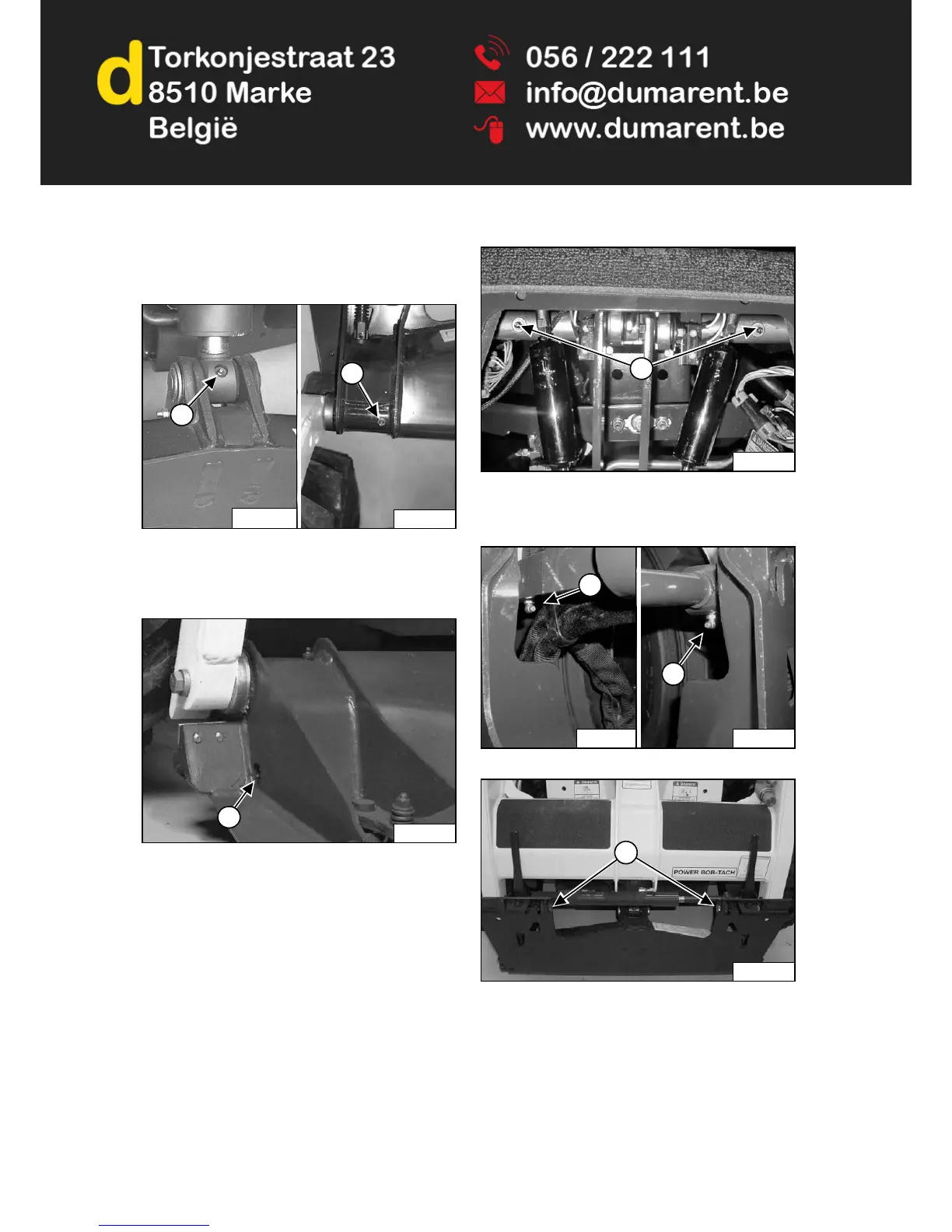

Figure 223
5. Rod End Tilt Cylinder (1) [Figure 223].
6. Bob-Tach Pivot Pin (Both Sides) (2) [Figure 223].
Figure 224
7. Bob-Tach Wedge (Both Sides) (2) [Figure 224].
Figure 225
8. 250 Hours: Steering Lever Shaft (If Equipped)
[Figure 225].
Figure 226
Figure 227
9. Power Bob-Tach Pivot Pins (If Equipped) [Figure
226] and [Figure 227].
