38 S130 Operation & Maintenance Manual
INSTRUMENT PANEL IDENTIFICATION (CONT’D)

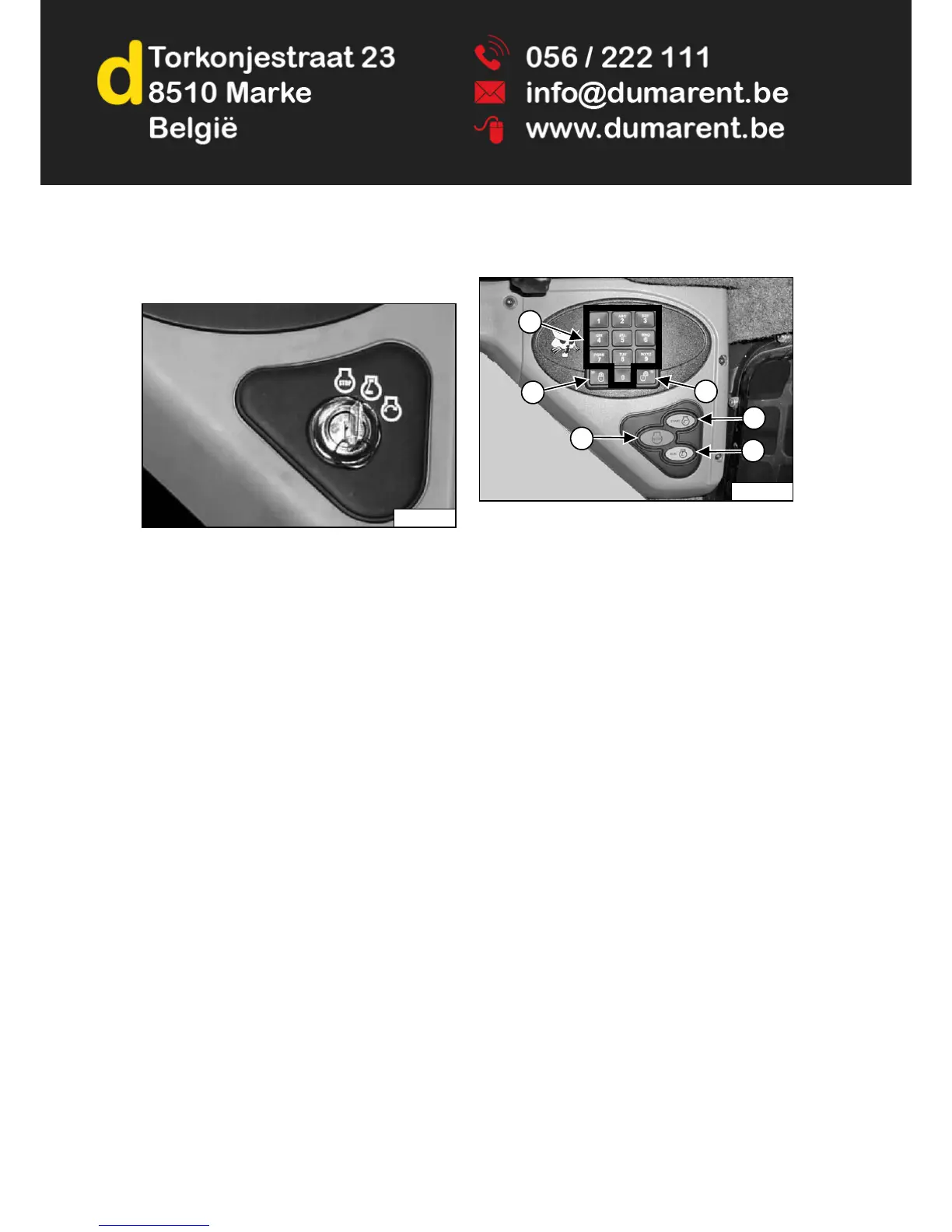

Standard Key Panel
Figure 11
This machine can be equipped with a Standard Key
Panel [Figure 11].
The Standard Key Panel is used to turn the loader
electrical system on and off, and to start and stop the
engine.
Keyless Start Panel
Figure 12
This machine can be equipped with a Keyless Start Panel
[Figure 12].
1. Keypad (keys 1 through 0): Used to enter a number
code (password) to allow starting the engine. An
asterisk will show in the left panel display screen for
each key press.
2. LOCK Key: Used to lock keypad. The lock key will
display a red light to indicate a password is required
to start the loader. (See Password Lockout Feature
on Page 165.)
3. UNLOCK Key: Used to unlock keypad. The unlock
key will display a green light to indicate the loader can
be started without a password. (See Password
Lockout Feature on Page 163.)
4. START Button: Used to start the engine.
5. STOP Button: Used to stop the engine and shut
down the loader electrical system.
6. RUN Button: Used to turn on the loader electrical
system.
