42 S130 Operation & Maintenance Manual
CONTROL IDENTIFICATION
This loader has four control configurations available to operate lift / tilt functions and driving / steering the loader:
• Standard Controls - Uses foot pedals for lift and tilt functions.
Uses steering levers for driving and steering the loader.
• Advanced Control System (ACS) (Option) - Uses a choice of foot pedals or handles for lift and tilt functions.
Uses steering levers for driving and steering the loader.
• Advanced Hand Controls (AHC) (Option) - Uses handles for lift and tilt functions.
Uses steering levers for driving and steering the loader.
• Selectable Joystick Controls (SJC) (Option) - Uses joysticks for lift / tilt functions and driving / steering the loader.
Standard Controls

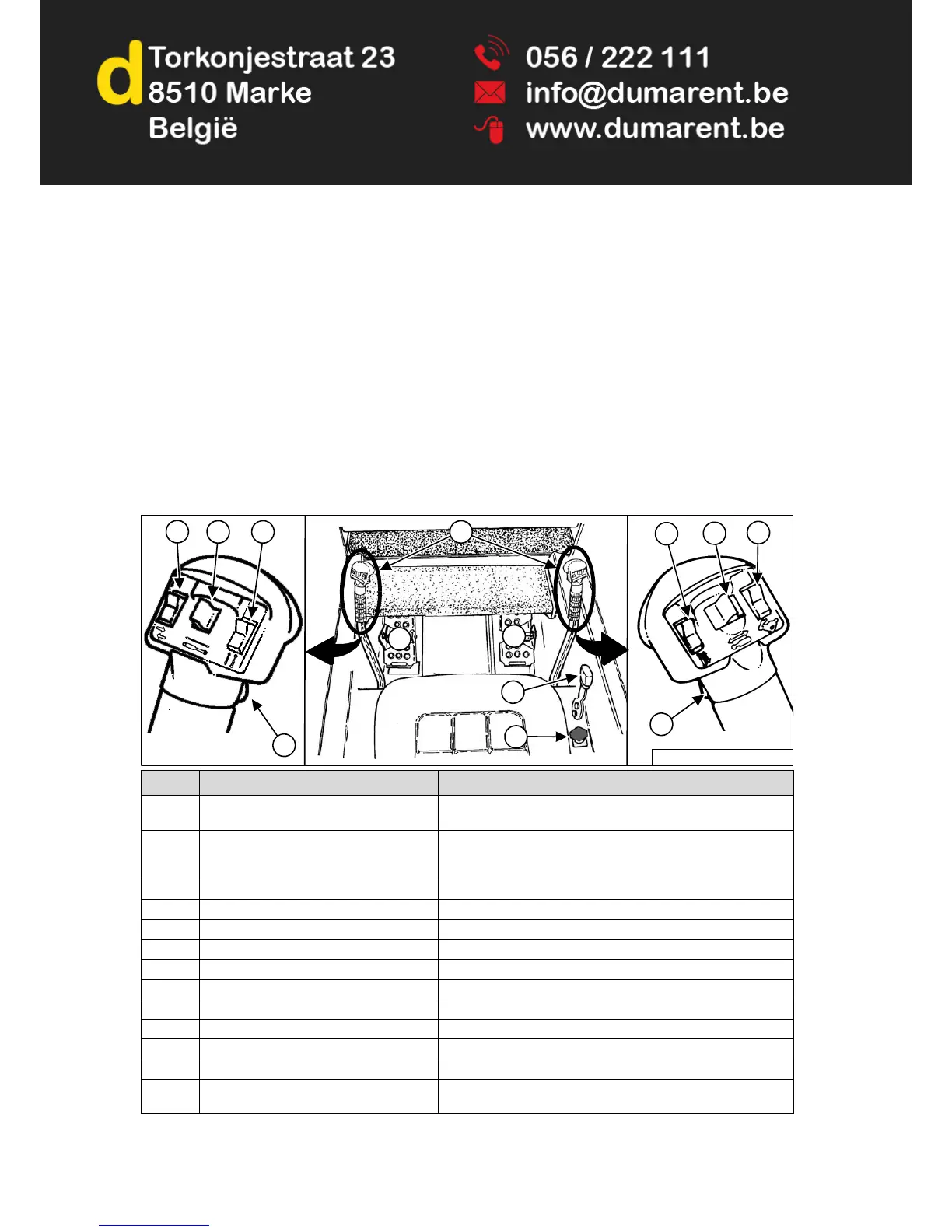

Figure 17
REF. NO. DESCRIPTION FUNCTION / OPERATION
1 TURN SIGNALS (Option) Press the top to activate right signal; bottom to activate left
signal; centre position to turn off.
2 REAR AUXILIARY HYDRAULICS (Option)
Also: ATTACHMENT FUNCTION
CONTROL
See REAR Auxiliary Hydraulics Operation in this manual.
See ATTACHMENT CONTROL DEVICE in this manual.
3 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
4 FRONT HORN Press the front switch to sound the front horn.
5 STEERING LEVERS See DRIVING AND STEERING THE LOADER in this manual.
6 LIFT ARM PEDAL See HYDRAULIC CONTROLS in this manual.
7 TILT PEDAL See HYDRAULIC CONTROLS in this manual.
8 ENGINE SPEED CONTROL See ENGINE SPEED CONTROL in this manual.
9 LIFT ARM BYPASS CONTROL See LIFT ARM BYPASS CONTROL in this manual.
10 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
11 FRONT AUXILIARY HYDRAULICS See FRONT Auxiliary Hydraulics Operation in this manual.
12 NOT USED - - -
13 CONTINUOUS FLOW CONTROL FOR
AUXILIARY HYDRAULICS
See FRONT Auxiliary Hydraulics Operation (CONTINUOUS
FLOW) in this manual.
