44 S130 Operation & Maintenance Manual
CONTROL IDENTIFICATION (CONT’D)
Advanced Hand Controls (AHC)

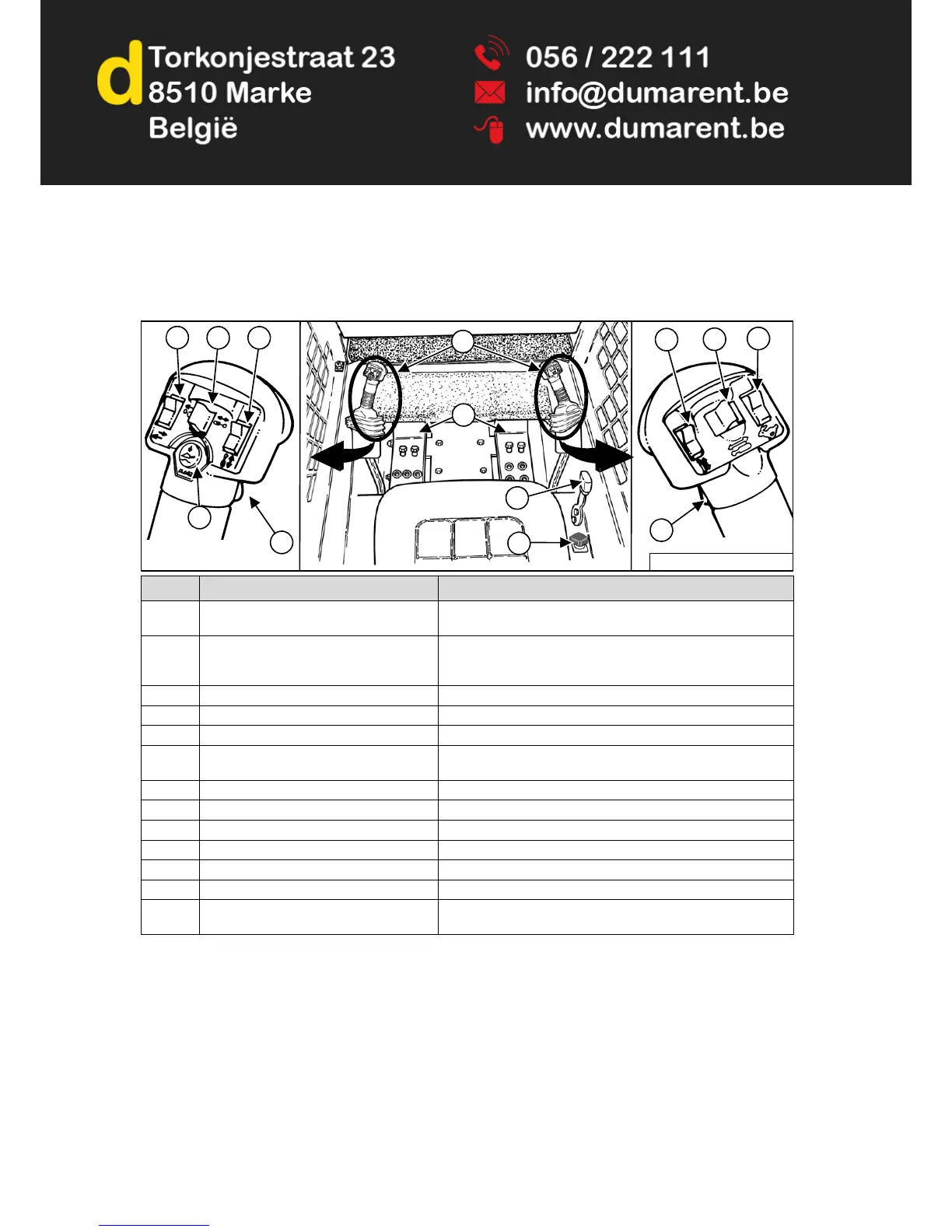

Figure 19
REF. NO. DESCRIPTION FUNCTION / OPERATION
1 TURN SIGNALS (Option) Press the top to activate right signal; bottom to activate left
signal; centre position to turn off.
2 REAR AUXILIARY HYDRAULICS (Option)
Also: ATTACHMENT FUNCTION
CONTROL
See REAR Auxiliary Hydraulics Operation in this manual.
See ATTACHMENT CONTROL DEVICE in this manual.
3 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
4 FLOAT CONTROL See HYDRAULIC CONTROLS in this manual.
5 FRONT HORN Press the front switch to sound the front horn.
6 STEERING LEVERS AND LIFT / TILT
HANDLES
See DRIVING AND STEERING THE LOADER and
HYDRAULIC CONTROLS in this manual.
7 FOOTRESTS Keep your feet on the footrests at all times.
8 ENGINE SPEED CONTROL See ENGINE SPEED CONTROL in this manual.
9 LIFT ARM BYPASS CONTROL See LIFT ARM BYPASS CONTROL in this manual.
10 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
11 FRONT AUXILIARY HYDRAULICS See FRONT Auxiliary Hydraulics Operation in this manual.
12 NOT USED - - -
13 CONTINUOUS FLOW CONTROL FOR
AUXILIARY HYDRAULICS
See FRONT Auxiliary Hydraulics Operation (CONTINUOUS
FLOW) in this manual.
