45 S130 Operation & Maintenance Manual
CONTROL IDENTIFICATION (CONT’D)

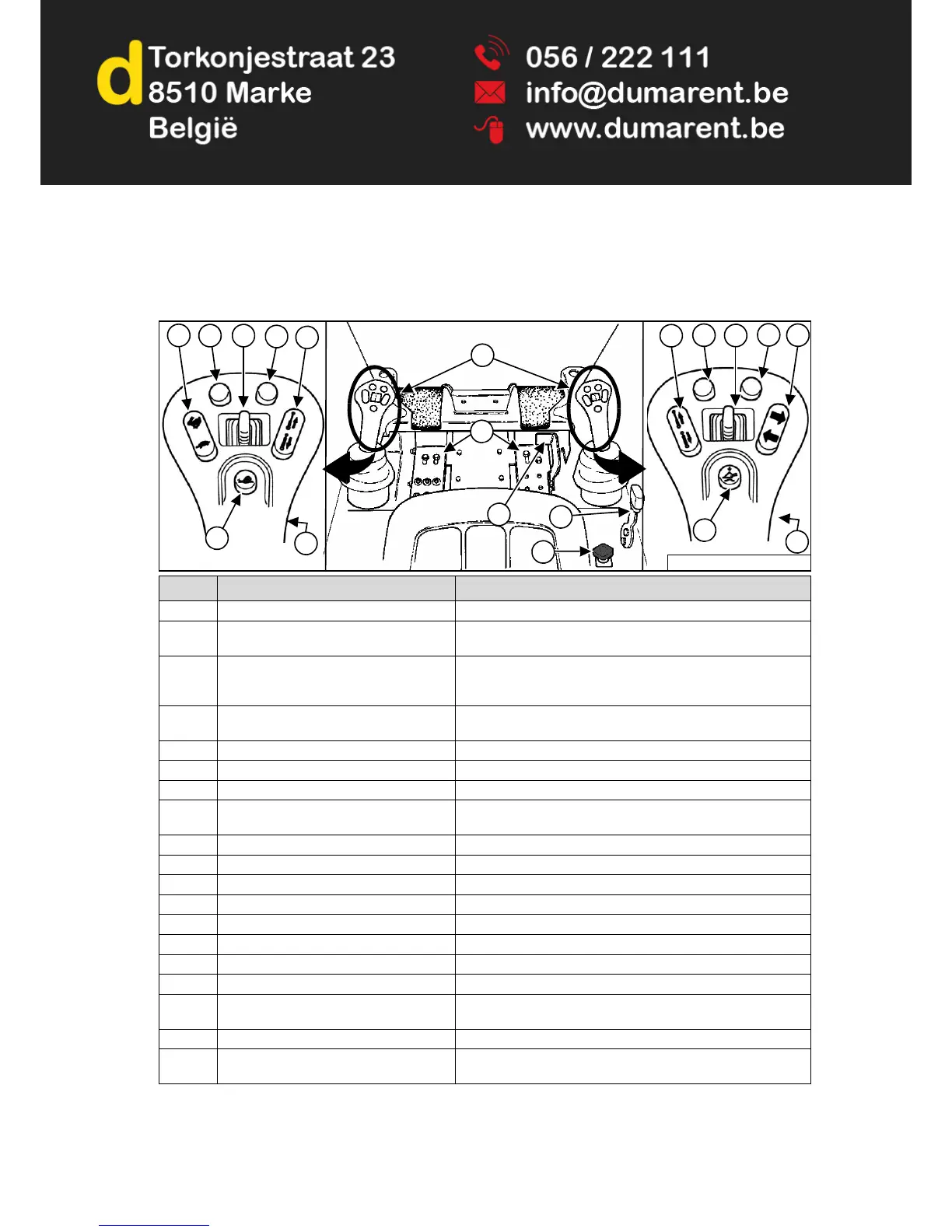

Selectable Joystick Controls (SJC)
Figure 20
* Also used as Attachment Function Control: See your attachment Operation & Maintenance Manual.
REF. NO. DESCRIPTION FUNCTION / OPERATION
1 SPEED MANAGEMENT See SPEED MANAGEMENT in this manual.
* 2 STEERING DRIFT COMPENSATION
Also: DRIVE RESPONSE
See STEERING DRIFT COMPENSATION in this manual.
See DRIVE RESPONSE in this manual.
3 REAR AUXILIARY HYDRAULICS (Option)
Also: ATTACHMENT FUNCTION
CONTROL
See REAR Auxiliary Hydraulics Operation in this manual.
See ATTACHMENT CONTROL DEVICE in this manual.
* 4 STEERING DRIFT COMPENSATION
Also: DRIVE RESPONSE
See STEERING DRIFT COMPENSATION in this manual.
See DRIVE RESPONSE in this manual.
5 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
6 SPEED MANAGEMENT See SPEED MANAGEMENT in this manual.
7 FRONT HORN Press the front switch to sound the front horn.
8 JOYSTICKS See DRIVING AND STEERING THE LOADER and
HYDRAULIC CONTROLS in this manual.
9 FOOTRESTS Keep your feet on the footrests at all times.
10 ENGINE SPEED CONTROL (FOOT) See ENGINE SPEED CONTROL in this manual.
11 ENGINE SPEED CONTROL (HAND) See ENGINE SPEED CONTROL in this manual.
12 LIFT ARM BYPASS CONTROL See LIFT ARM BYPASS CONTROL in this manual.
13 ATTACHMENT FUNCTION CONTROL See ATTACHMENT CONTROL DEVICE in this manual.
* 14 NOT USED - - -
15 FRONT AUXILIARY HYDRAULICS See FRONT Auxiliary Hydraulics Operation in this manual.
* 16 NOT USED - - -
17 TURN SIGNALS (Option) Press the top to activate right signal; press again to turn off.
Press the bottom to activate left signal; press again to turn off.
18 FLOAT CONTROL See HYDRAULIC CONTROLS in this manual.
19 CONTINUOUS FLOW CONTROL FOR
AUXILIARY HYDRAULICS
See FRONT Auxiliary Hydraulics Operation (CONTINUOUS
FLOW) in this manual.
