74 S130 Operation & Maintenance Manual
PRE-STARTING PROCEDURE (CONT’D)
Seat Adjustment

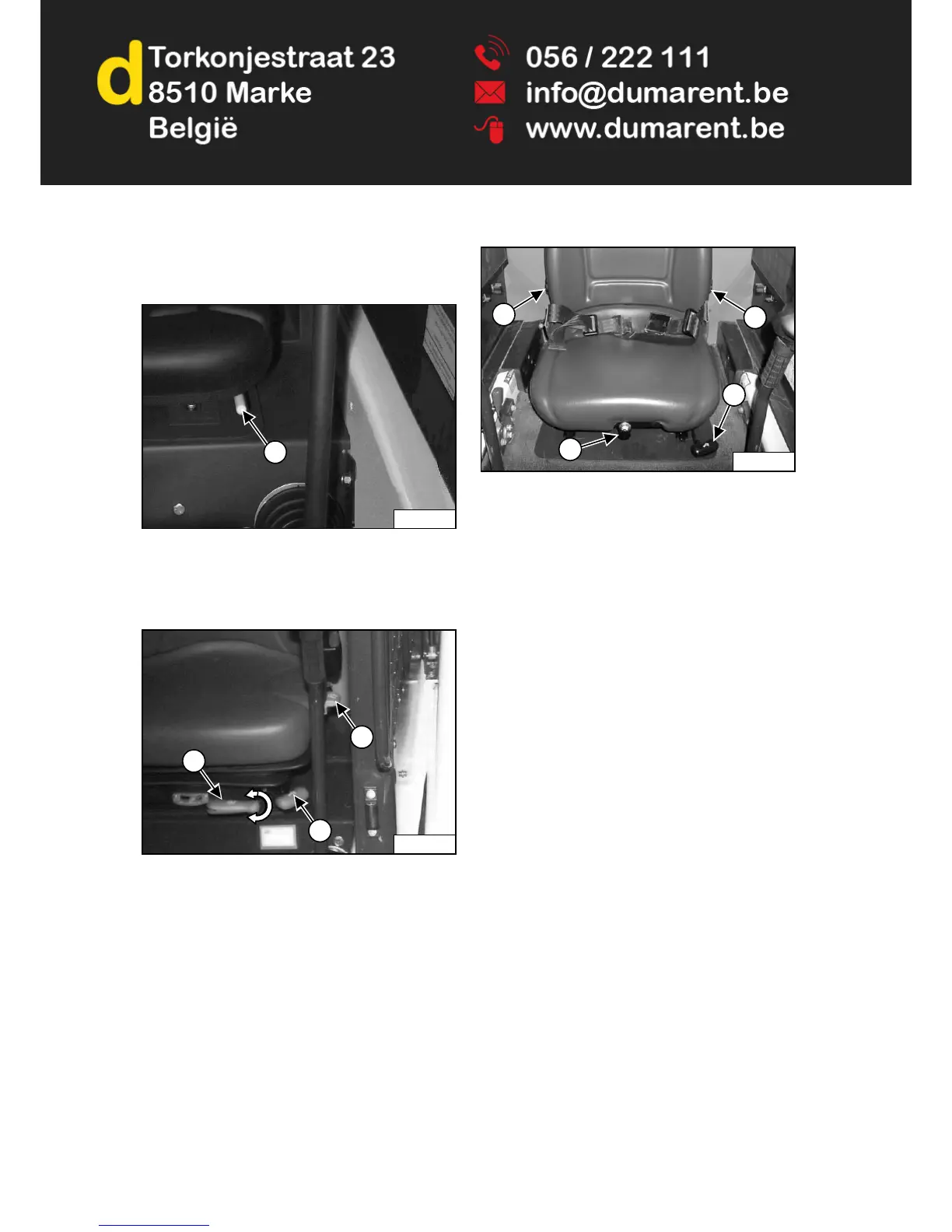

Figure 82
Pull the seat lever (Item 1) [Figure 82] out to adjust the
seat position for comfortable operation of the loader
controls.
Figure 83
Suspension Seat - (Option)
Pull the lever (Item 1) [Figure 83] up to adjust the seat
position for comfortable operation of the loader controls.
Pull the lever (Item 2) [Figure 83] up to adjust the angle
of the seat back.
Turn the lever (Item 3) [Figure 83] to adjust the seat
cushion for weight of the operator.
Figure 84
Air Ride Suspension Seat - (Option)
Turn the knob (Item 1) [Figure 84] to adjust the angle of
the seat back.
Turn the knob (Item 2) [Figure 84] to adjust the lumbar
support.
Push the knob (Item 3) [Figure 84] in and hold to
increase the amount of air in the seat suspension. Pull
the knob out and hold to decrease the amount of air in
the seat suspension.
NOTE: The loader electrical system must be turned
ON to increase the amount of air in the seat
suspension.
Pull the lever (Item 4) [Figure 84] up to adjust the seat
position for comfortable operation of the loader controls.
