81 S130 Operation & Maintenance Manual
STARTING THE ENGINE (CONT’D)
Deluxe Instrumentation Panel (Cont’d)
NOTE: Make sure both hand controls (ACS/AHC) or
joysticks (SJC) are in the neutral position
before starting the engine. Do not move the
levers or joysticks from the neutral position
when pressing the RUN / ENTER or START
buttons with the BICS activated.

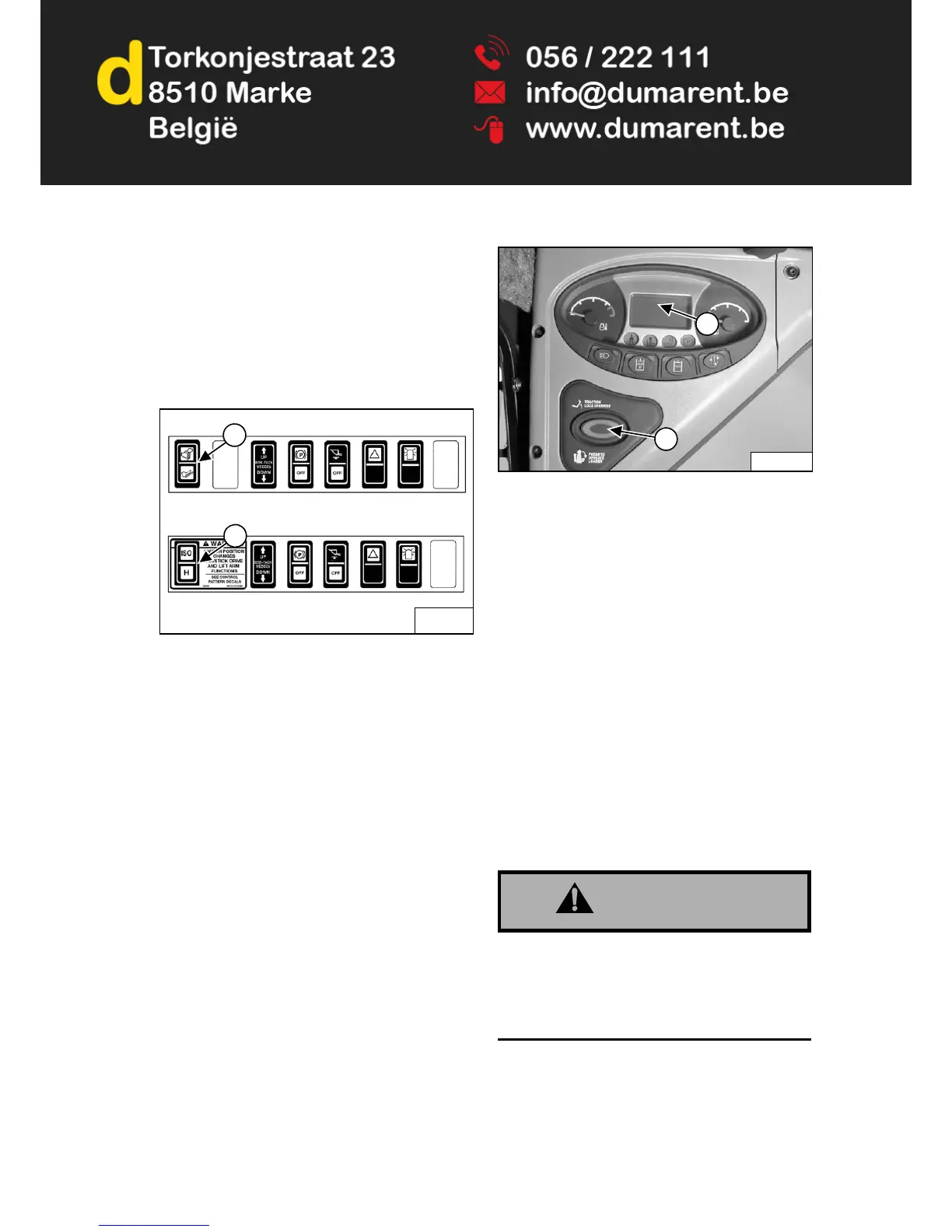

Figure 101
(ACS) Select hand control or foot pedal operation (Item
1) [Figure 101].
OR
(SJC) Select ‘ISO’ or ‘H’ Control Pattern (Item 2) [Figure
101].
Figure 102
Press the PRESS TO OPERATE LOADER button (Item
1) [Figure 102] to activate the BICS and to perform
hydraulic and loader functions.
(SJC) The current drive response setting will be
displayed briefly in the data display (Item 2) each time the
PRESS TO OPERATE LOADER button (Item 1) [Figure
102] is pressed.
NOTE: (SJC) The light of the current switch position
(ISO or H) will flash, which will indicate
PRESS TO OPERATE LOADER is required.
The light will flash when the RUN button has
been pressed and continue to flash until the
PRESS TO OPERATE LOADER button is
pressed, thereafter the light will become solid.
If the mode (ISO / H) is changed while driving,
the active mode light will remain solid and the
pending mode light will flash. When operation
of the machine is returned to neutral, the
active mode light will then turn off and the
pending mode light will continue to flash until
the PRESS TO OPERATE LOADER button is
pressed.
AVOID INJURY OR DEATH
When an engine is running in an enclosed area, fresh
air must be added to avoid concentration of exhaust
fumes. If the engine is stationary, vent the exhaust
outside. Exhaust fumes contain odorless, invisible
gases which can kill without warning.
W-2050-0807
