83 S130 Operation & Maintenance Manual
MONITORING THE DISPLAY PANELS
Left Panel

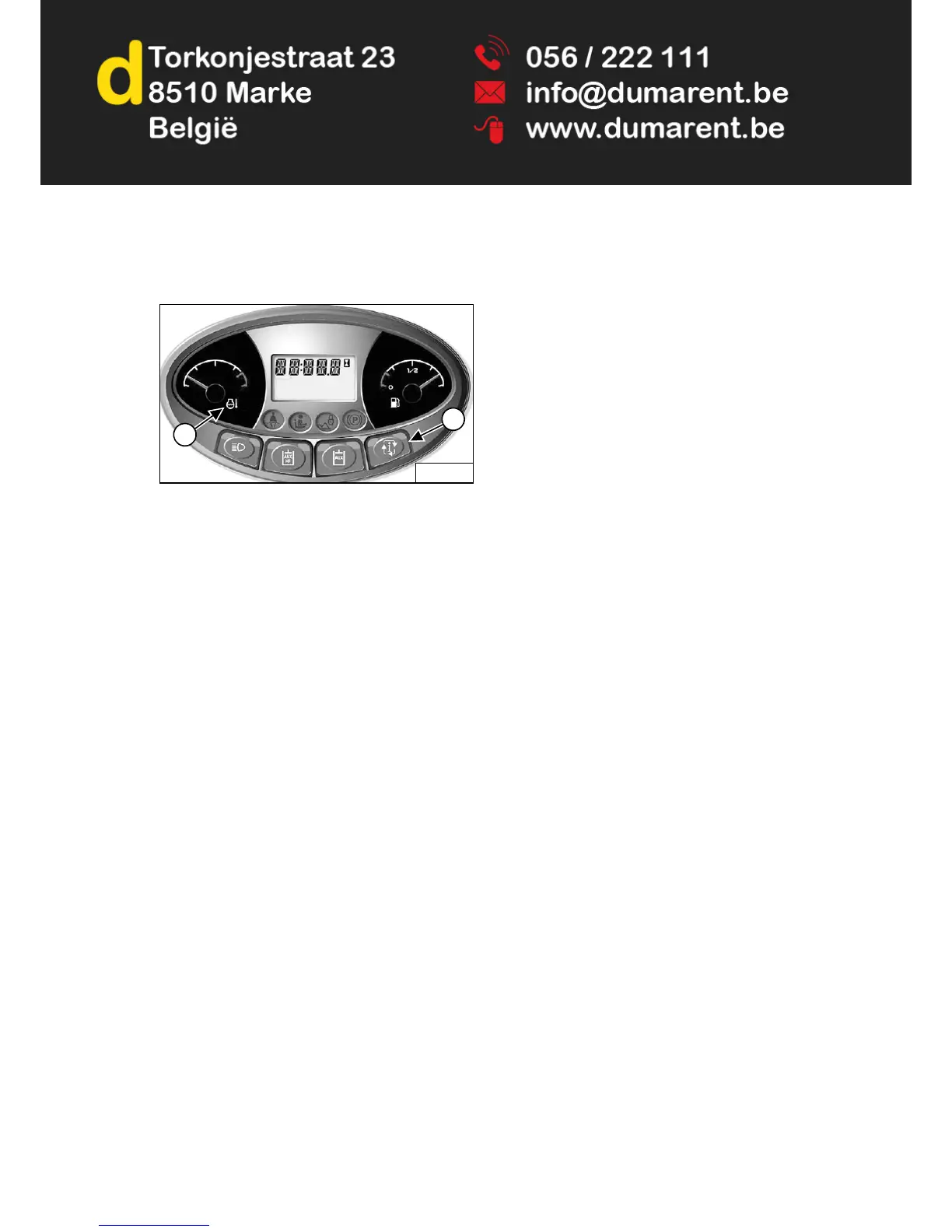

Figure 103
Frequently monitor the temperature and fuel gauges and
BICS™ lights (all BICS™ lights must be OFF to operate
loader) [Figure 103].
After the engine is running, frequently monitor the left
instrument panel [Figure 103] for error conditions.
The associated icon will be ON if there is an error
condition.
EXAMPLE: Engine Coolant Temperature is High
The Engine Over-Temperature icon (Item 1) [Figure 103]
will be ON.
Press the Information button (Item 2) [Figure 103] to
cycle the data display until the service code screen is
displayed. One of the following SERVICE CODES will be
displayed.
• M0810 Engine Coolant Temperature High
• M0811 Engine Coolant Temperature Extremely High
Find the cause of the error code and correct before
operating the loader again. (See Service Codes List on
Page 156.)
Warning And Shutdown
When a WARNING condition exists, the associated icon
light will come ON and there will be 3 beeps from the
alarm. If this condition is allowed to continue, there can
be damage to the engine or loader hydraulic systems.
When a SHUTDOWN condition exists, the associated
icon light will come ON and there will be a continuous
beep from the alarm. The monitoring system will
automatically stop the engine in 15 seconds. The engine
can be restarted to move or relocate the loader.
The SHUTDOWN feature is associated with the following
icons:
General Warning
Engine Malfunction
Engine Coolant Temperature
Hydraulic System Malfunction
To Next Page
